Miniscan MS954 Zebra Symbol fixed barcode scanner

Miniscan MS954 fixed barcode scanner Zebra is distributed by Viet Pos system nationwide. The MS954 is one of the smallest, lightest, and brightest fixed-mount scanners available today. The product is ideal for OEM device designs with space constraints, such as kiosks and ATMs, clinical diagnostic equipment, medical instruments, gaming devices, and turnstiles/access control. Contact us now for consultation.

Detailed information about Miniscan MS954 barcode scanner

Dimensions:	1.02H x 1.93W x 2.31D (in) 25.9H x 49.02W x 58.67D (mm)
Weight:	1.67 oz / 47.34 g
Interface:	RS-232

Operating Temperature:	-4 ° to 140 ° F (-20 ° to 60 ° C)
Storage Temperature:	-40 ° to 158 ° F (-40 ° to 70 ° C)
Humidity:	5% to 95% non-condensing
Power:	Input Voltage: 5 VDC ± 10% Scan Current: 95mA Standby Current: 27mA Vcc Noise: 200mV peak-to-peak max
Drop Rating:	Device operates normally after multiple 30-inch (76 cm) drops to concrete
Symbologies:	All major 1-D barcodes
Programmable Parameters:	Laser On Time, Aiming Duration, Power Mode, Trigger Mode, Bi-directional Redundancy, Symbology Type/Length, Data Format, Serial Parameters, Beeper, Scan Angle

Light Source:	650 nm visible laser diode
Scan Speed:	104 ± 12 scans per second
Scan Angle:	47 ° ± 3 ° (typical) / 35 ° ± 3 ° (narrow)
Scan Pattern:	Linear

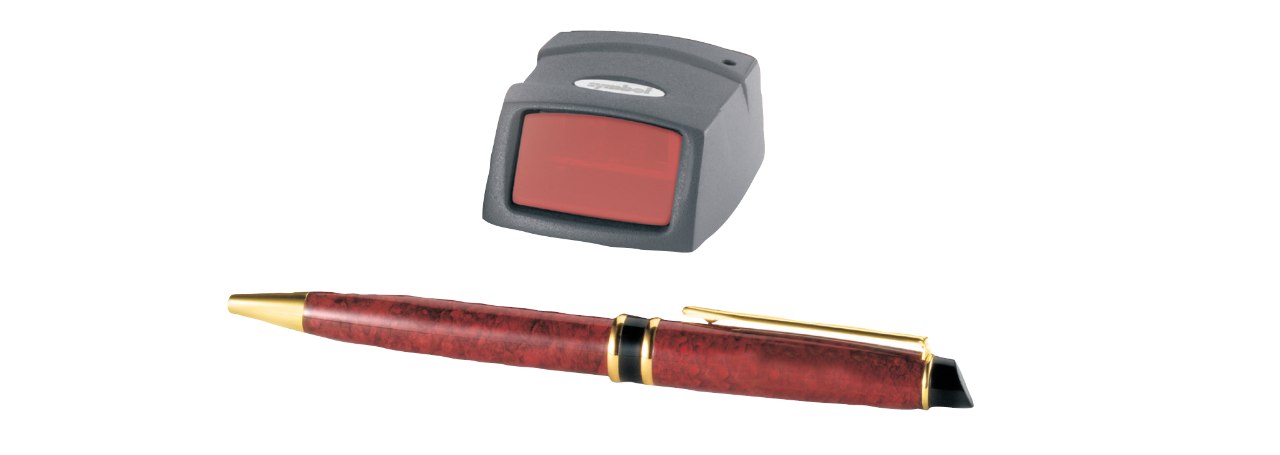

Actual images

Outstanding advantages

- Software control or manual activation - Provides flexible control for unattended or hands-free applications - Simple serial interface (SSI) - Provides fast, simple communication between scanner and host - Reads all major 1-D symbols - Flexible decoding capabilities allow devices to achieve high first-pass read rates for improved productivity - Bright 650 nm laser diode - Highly visible scan line - Durable housing and integrated RS-232 interface, the MS954 allows your project teams to quickly and confidently integrate high-performance 1D barcode data acquisition into a wide range of applications. - Working range from near contact to over 35 inches (88.9 cm).

Applicable models

- Retail - Healthcare - Kiosks - ATMs - Gaming - Medical devices
