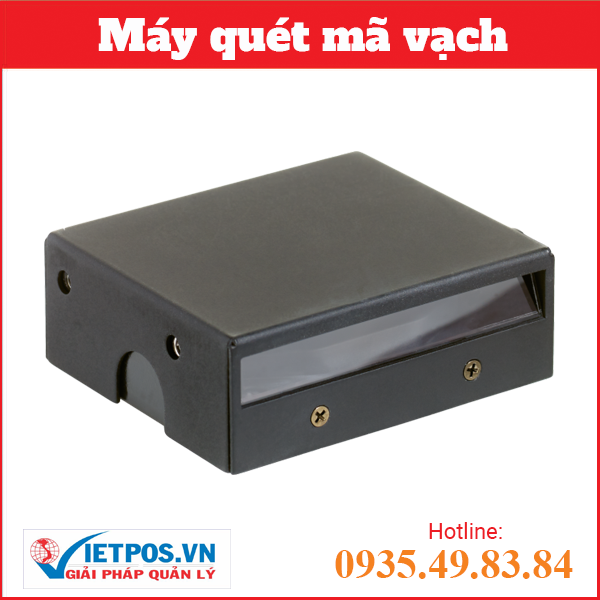

OPTICON CCD F-70 - Barcode scanner

PRODUCT DESCRIPTION

OPTICON CCD F-70 is an ultra-compact barcode scanner with a scanning speed of 700 scans/second. Easily integrated with your desired devices. If you are looking for a fast and compact fixed barcode scanner, the OPTICON CCD F-70 is an ideal choice.

TECHNICAL SPECIFICATIONS

Brand	Opticon
Model	F-70
Operating Indicator	Visual: 1 LED (red/green/orange) Non-visual: buzzer
Interface	RS232: DB25 F connector with external power supply USB: Ver. 2.0, HID/VCP, USB-A connector
Power Supply	5V +/- 5% 220mA (typical use)
Light Source	660 nm red LED
Scan Method	CCD linear sensor
Scan Speed	700 scans/second
Trigger Mode	Multiple read, serial software trigger
Barcodes	Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), IATA, Industrial 2of5, Interleaved 2of5, MSI/Plessey
Temperature	Operating: 0 to 40˚C / 32 to 104˚F Storage: -10 to 60˚C / 14 to 140˚F
Humidity	Operating: 20 – 85% non-condensing Storage: 20 – 90% non-condensing
Drop Resistance	Withstands drops from 0.6 m onto concrete
Dimensions	I-type: 55 x 47 x 20 mm / 2.17 x 1.85 x 0.79 in L-type: 52 x 55 x 20 mm / 2.05 x 1.85 x 0.79 in
Weight	I-type: Approx. 100 g / 3.5 oz (excl. cable) L-type: Approx. 110 g / 3.9 oz (excl. cable)

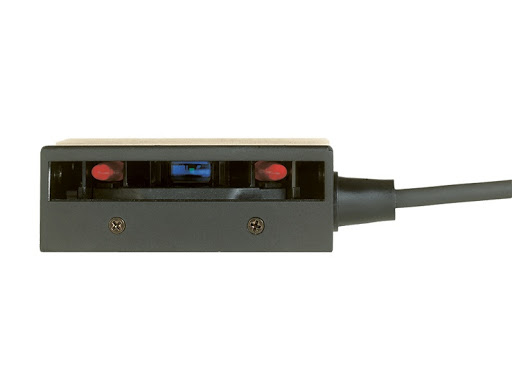

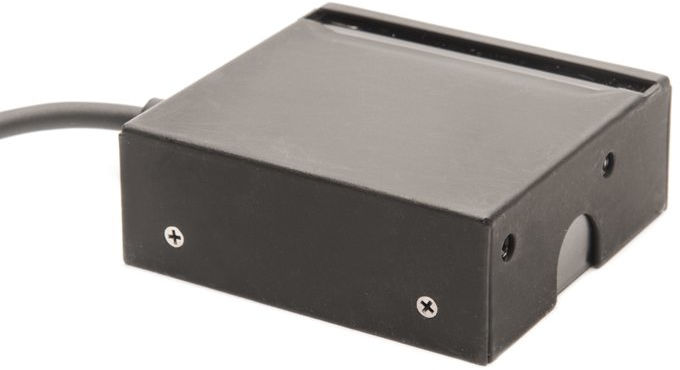

ACTUAL IMAGES

OUTSTANDING FEATURES

- Scans 1D barcodes at an extremely high speed of 700 scans/second - Metal casing protects against environmental factors- Compact and convenient size - 2 models to choose from - Diverse protocols - In addition, the F-70 also offers a variety of configuration options to make your business operations more efficient.

PRODUCT APPLICATIONS

The OPTICON CCD F-70 barcode scanner can be applied in many different fields such as: - Retail POS - Self-service systems - Card scanning at parking lots - Pharmaceutical analysis equipment
