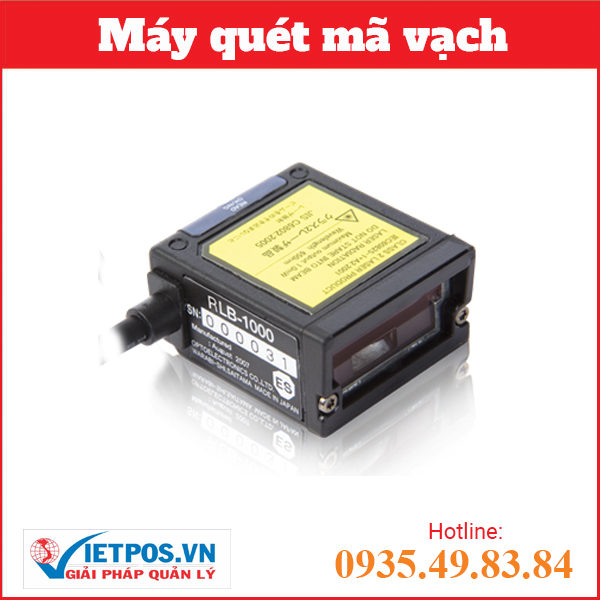

OPTICON RLB 1000 - Conveyor barcode scanner

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

- Brand: Opticon - Model: RLB-1000 - Operating indicators

• Visual: 1 LED
• Non-visual: vibration

- Connection ports:

• RS232: DB9 PTF connector with external power supply
• USB: Ver. 1.1, VCP, USB-A connector

- Power supply:

• Input voltage: 5V ± 10%
• Power consumption: 180 mA, standby current 50mA

- Dimensions: 29 x 17 x 34 mm / 1.14 x 0.67 x 1.34 - Weight: Ca. 30 g / 1.06 oz (excl. cable)

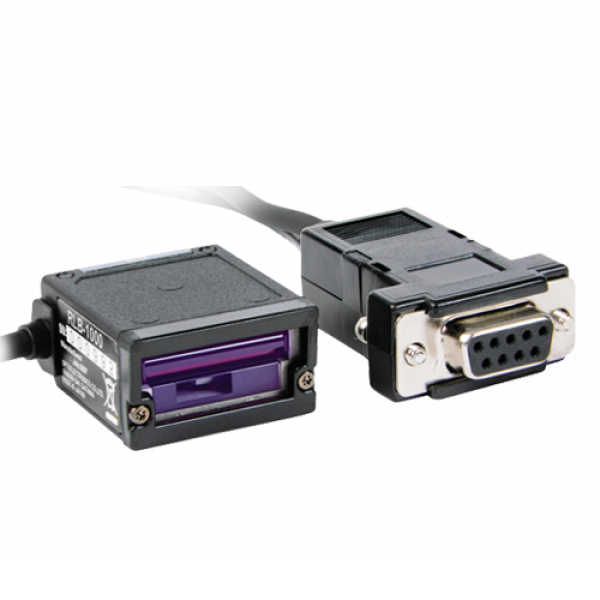

REAL IMAGES

OUTSTANDING FEATURES

- High-speed device meeting IP 54 standard - High impact resistance, capable of withstanding drops from 0.75m. - Mounting holes on the side and bottom of the device can maximize fixed assembly - Offers users many choices such as flexible USBCOM or Serial connection - Robust structure, meeting IP65 standard - Dustproof, moisture-proof...

PRODUCT APPLICATIONS

The OPTICON RLB 1000 barcode scanner is applied in the following models:

- Hospitals:

• Document and product registration


• Access control


• Patient registration


• Electronic health record (EHR) tracking


• Pharmaceutical management

- Parking lots: ticket control
- Cinemas: movie ticket control...
