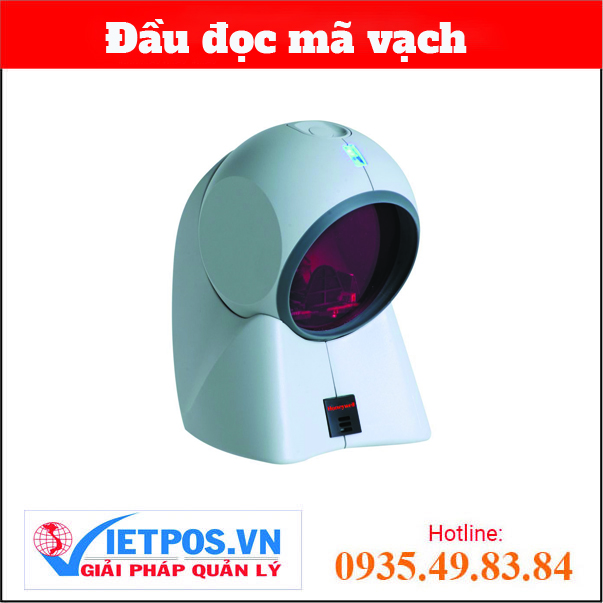

Orbit 7180 Honeywell Desktop Barcode Reader

The Orbit 7180 barcode scanner is the best-selling hands-free omnidirectional scanner of all time. The Orbit 7180 scanner features a compact design, fast reading speed, high performance, and affordable price, making it suitable for convenient retail applications where counter space is at a premium. Contact Viet Pos now for quick consultation.

Technical Specifications

Barcode Reading

1D

Light Source:	Visible Laser Diode 650 nm ± 10 nm
Depth of Scan Field:	0 mm - 215 mm (0” - 8.5”) for 0.33 mm (13 mil) barcode
Scan Field Width:	60 mm (2.4”) @ surface; 105 mm (4.1”) @ 216 mm (8.5”)
Minimum Bar Width:	0.13 mm (5.2 mil)
Scan Speed:	1120 lines/second
Number of Scan Lines:	1 or 20 lines
System Interface:	PC Keyboard Wedge, RS232, Light Pen Emulation, IBM 468X/469X, USB

Actual Images

Outstanding Advantages

- 20-line omnidirectional scan pattern provides aggressive scanning as an added benefit for hands-on presentation applications. - Integrated RF EAS antenna (for Orbit 7180 scanner only) increases efficiency by simultaneously deactivating RF EAS tags and decoding barcodes. - Retail operations can protect their POS investment with free firmware updates via MetroSet 2 software and a standard PC. - Adjustable scan head allows users to tilt the scanner 30°: for targeted scanning of larger products. - The Orbit scanner has a “sweet spot” designed to optimize scanning performance and first-pass read rates.
