Zebra DS2208-HC Corded Barcode Scanner

The DS2208-HC Zebra wired barcode scanner can withstand continuous disinfection requirements at the point of care. It easily and accurately scans barcodes commonly used in hospitals. The product has a compact design and works continuously in harsh environments. Viet Pos specializes in distributing DS2208-HC Zebra wired barcode scanners nationwide. Contact us immediately for quick consultation and quotation.

Technical specifications

Dimensions	Corded DS2208-HC: 6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.6 cm W x 9.9 cm DCordless DS2278-HC: 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm DPresentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D
Weight	Corded DS2208-HC: 5.7 oz. / 161.6 g Cordless DS2278-HC: 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g
Input Voltage Range	DS2208-HC/DS2278-HC and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC ExternalPower Supply
Current	Corded DS2208-HC Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image) Corded DS2208-HC Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On) Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB
Colour	Healthcare White
Supported Host Interfaces	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
USB Certification	USB Certification

Environmental	RoHS EN 50581
Electrical Safety	EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07
LED Safety	IEC 62471
IT Emissions	EN 55032 (Class B)

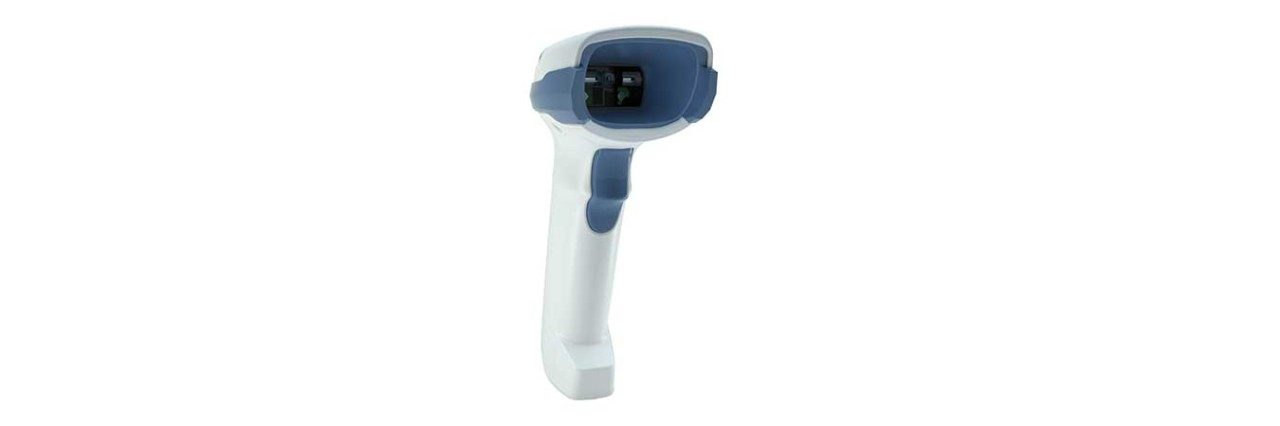

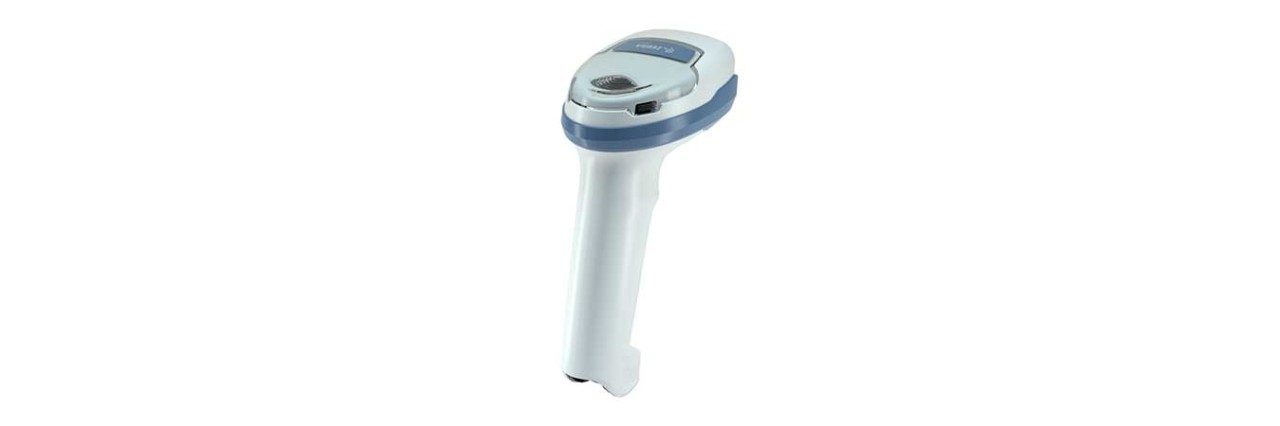

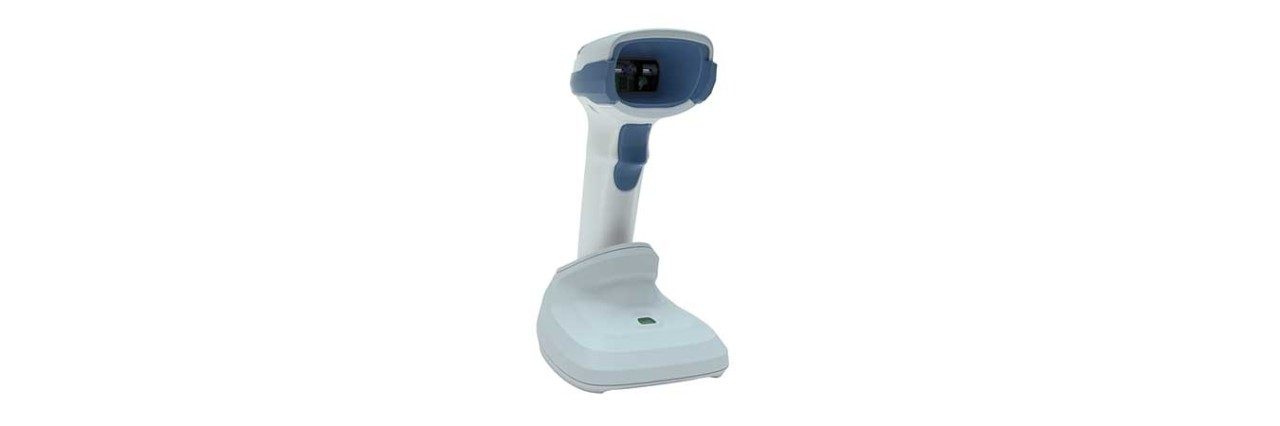

Actual images

Outstanding advantages

- Continuous operation in harsh environments - Easy to deploy and manage. The scanner is configured for the healthcare applications you use every day, while the auto-detect host cable automatically selects the correct host interface—just plug in the scanner and you're ready to go. You can easily customize settings with 123Scan to create configuration barcodes to program the scanner, update firmware, or divide a large number of devices. And the DS2200-HC series is designed for easy integration with your tablet-based EMR applications. - "Do Not Disturb Mode" allows clinicians to instantly know if medication or wristbands have been scanned correctly without disturbing resting patients with a loud beep.

Application areas

- Hospitals: + Patient identification + Medication management + Pharmacy medication tracking
