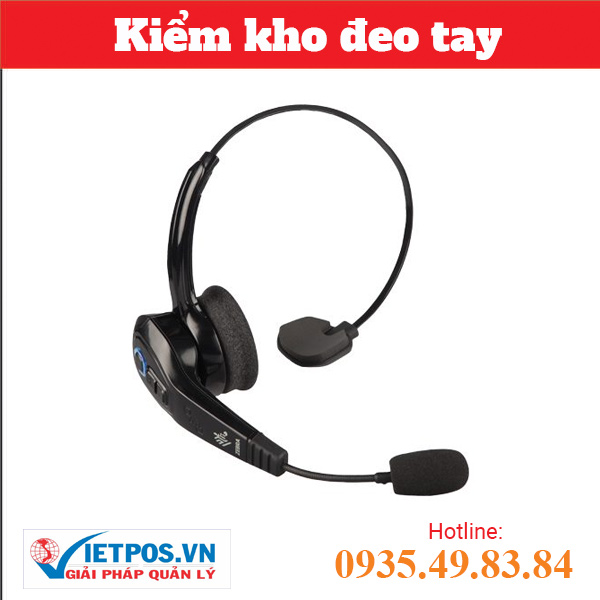

Zebra HS3100 - Wireless Inventory Headset

In addition to features similar to the wired warehouse headset Zebra HS2100, the HS3100 wireless headset allows users to control it from a distance of up to 10m. With superior HD sound, the HS3100 offers flexible, automatic control, free from noise even when used in noisy warehouse environments.

Technical Specifications

Weight	4 oz./115 g (with battery)
Wearing Style	Over-the-head Behind-the-neck
Replaceable Accessories	Headband, battery, ear pads, wind screen, head pad,...
Battery	Li-Ion 220 mAh, 3.7V with up to 15 hours of continuous voice use on a single charge using a battery with ≤ 100 charge/discharge cycles

Voice-guided Applications	Can work with all Zebra devices running voice recognition and text-to-speech engines for voice-guided applications
Audio	High-performance sealed noise-canceling microphone with over 10 dB noise resistance meter for high-noise environments
Transmit Frequency Response	50 Hz to 8 kHz
Microphone Sensitivity	-53dB @ 1kHz, 1Pa
Receive Frequency Response	300 Hz to 6 kHz
Speaker Sensitivity	89 dB SPL with 1.0Vrms @ 1 kHz
Bluetooth	Bluetooth Class II, v 3.0; Bluetooth Hands-Free Profile (HFP 1.6), HSP 1.2
NFC	NFC tag used for Tap to Pair

Connectivity	LED: Bi-color LED for headset status, function buttons
Operating temperature.	-30 ° C (-22 ° F) to + 50 ° C (+ 122 ° F)
Storage temperature.	-40 ° C (-40 ° F) to + 60 ° C (+ 140 ° F) including battery -40 ° C (-40 ° F) to + 70 ° C (+ 158 ° F) excluding battery
Standard guarantee	IEC 60529: IP67
Humidity	5% to 95% non-condensing
Drop rating	6 ft. / 1.8 m drop to concrete (36 drops, over operating temperature range)
Tumble Rating	1,000 tumbles @ 0.5 m (room temperature)
Vibration	Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis
Electrostatic Discharge (ESD)	+/- 20kV air discharge, +/- 10kV contact discharge, +/- 10kVdc indirect discharge

Actual images

Key features of Zebra HS3100

– Compatible with WT6000, RS6000 or RS4000 inventory computers – Superior noise cancellation technology, effectively eliminating ambient noise – Hot-swappable battery, no loss of Bluetooth connection – Customizable default features – Fast connection in seconds – Detachable microphone – Battery capacity up to 15 hours of use – Simple design, lightweight 115g, convenient for long-term wear – IP67 water resistance rating – Operates in cold storage at temperatures as low as -30 °C
