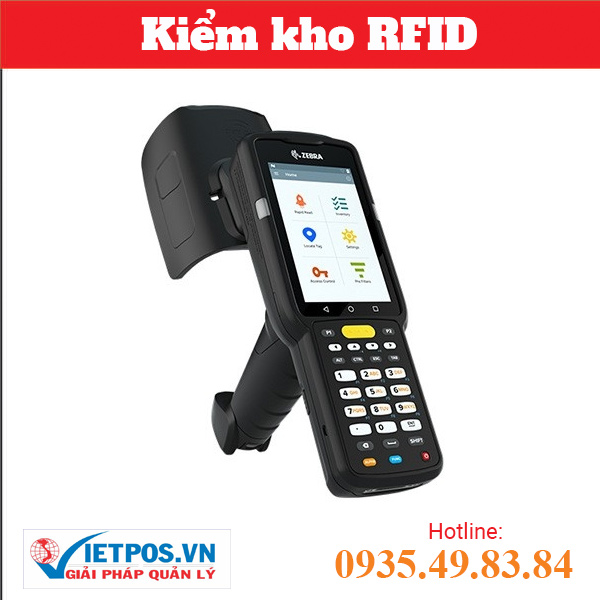

Zebra MC3390R - RFID Inventory

Zebra MC3390R is an RFID inventory management device that brings a new level of efficiency and accuracy to inventory management and order fulfillment. With Zebra's characteristic rugged design, the MC3390R is built to perform well in industrial environments. The integrated long-range antenna provides best-in-class RFID reading range, so inventory counts can be performed faster and more accurately. Users can create intuitive Android applications using the MC3390R's powerful computing platform, large touchscreen, and physical keyboard.

Specifications

CPU	Qualcomm 8056 1.8 GHz hexa-core 64-bit with power optimization
Operating System	Android 7.0 (Nougat) GMS: Worldwide AOSP: China and Israel only
Memory	4GB / 32GB
Battery	PowerPre + Li-Ion 5200 mAh with fast charging support

Operating Temperature	-4 ° F to 122 ° F / -20 ° C to 50 ° C
Storage Temperature	-40 ° F to 158 ° F / -40 ° C to 70 ° C
Humidity	5% to 95% RH (Non-condensing)
Drop Specification	Multiple 5 ft./1.5 m drops to concrete across the entire operating temperature range
Tumble Specification	1,000 1.6 ft./0.5 m tumbles
Quality Standard	IP54
Vibration	5Hz to 2KHz
Thermal Shock	-40 ° F to 158 ° F / -40 ° C to 70 ° C
Electrostatic Discharge (ESD)	+/- 20kV air, +/- 10kV contact discharge

Supported Standards	EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63
RFID Engine	Zebra's proprietary radio technology
Fastest Read Rate	900+ tags/second
Nominal Read Range	~ 60 + ft./~18.2+ m
RFID Output Power	0 dBm to +30 dBm
RFID Antenna Type	Integrated linear polarization
Frequency Range	865-928MHz * Specific regional and country settings supported upon country selection

Dimensions	6.45 inch L x 3.78 inch W x 10.67 inch D 164 mm L x 96 mm W x 271 mm D
Weight (with hand strap)	MC3390R with SE4750MR: 26 oz./740 g MC3390R with SE4850: 27 oz./765 g
Display	4.0 inch capacitive; WVGA; color
Display Protection	Tempered glass
Touch Panel	Corning Gorilla Glass touch panel with air gap
Backlight	LED backlight
Expansion Slot	Micro SD card slot, up to 32GB
Network Connections	High-Speed USB 2.0 (host and client), WLAN and Bluetooth
Notifications	Side LEDs and audible tone
Keypad	Numeric (29 keys), Function Numeric (38 keys), Alpha Numeric (47 keys)
Voice	PTT voice support (Internal speaker)
Audio	Speaker

Actual images

Key features of Zebra MC3390R

1. Compact, lightweight design

Industrial warehouses and cold storage environments require a rugged device that users can carry with them all day. The MC3390R is one of the lightest UHF RFID readers in its class and is designed for easy one-handed use, whether the worker is right- or left-handed.

2. Extended battery life

With a large 5200mAh battery, the MC3390R allows users to use it continuously at high frequency. The battery lasts more than 5 hours with typical use - nearly 35% longer than conventional inventory scanners. A convenient LED indicator lets users know when to replace the battery. And Zebra's PowerPre Karate technology provides a full suite of indicators that make it easy to identify, remove, and replace old batteries.

3. Integrated 1D / 2D barcode scanning

Users don't need different devices to capture barcodes and RFID tags - the MC3390R can do it all. Choose between a mid-range scanning engine or an additional long-range scanning engine that can capture barcodes from 3 inches/7.62 cm to 70 ft./21.4 m away. Both options offer Zebra's advanced scanning technology for lightning-fast 1D and 2D barcode capture, regardless of conditions.
