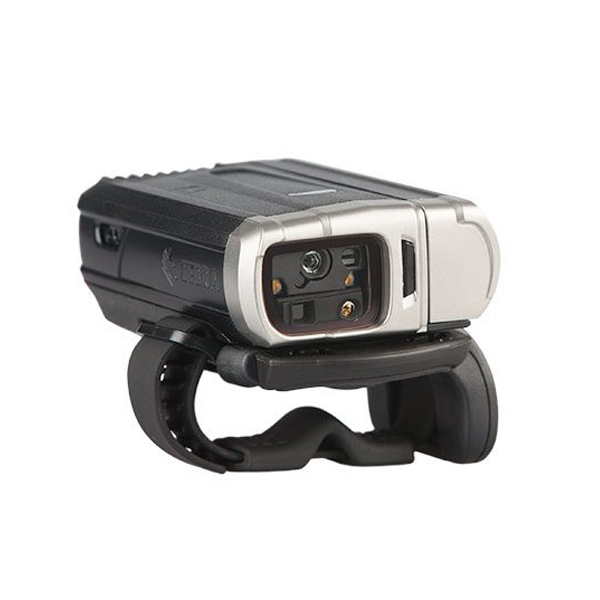

Zebra RS6000 - Wearable Barcode Scanner

Zebra RS6000 is a finger-worn inventory scanner that provides industry-leading scanning performance for warehouse inventory with standard 2D megapixel images. In addition, this device offers extremely fast decoding speed and high motion tolerance, increasing labor productivity. The Zebra RS6000 has Wi-Fi and Bluetooth connectivity, making inventory operations easier and smoother. Viet POS is a distributor of genuine Zebra finger-worn inventory scanners at competitive prices. Contact us for more detailed advice.

Technical Specifications

Dimensions	2.9 in. L x 2.1 in. W x 1.3 in. D 74 mm L x 54 mm W x 33 mm D
Weight	Triggered, with battery: 6.46 oz./183 g Non-triggered, with battery: 6.00 oz./170 g
Battery Capacity	3350 mAh capacity; PowerPrecision+; Li-Ion battery pack

Optical Resolution	1280 x 960 pixels
Roll	360°
LEDs	Line of Sight (LOS) 2 RGB LEDs located on the back of the device (programmable)
Operating Temp.	-22° F to +122° F / -30° C to +50° C
Aiming Element	655nm Laser
Illumination Element	Two (2) warm white LEDs
Field of View	SR: Horizontal: 48°, Vertical: 36.7° MR: Horizontal: 31°, Vertical: 23°
Ambient Light Immunity (from complete darkness)	Indoor: 450 ft. candles (4,845 lux) Outdoor triggered: 9,000 ft. candles (96,900 lux) Outdoor non-triggered: 1,200 ft. candles (12,917 lux)
Motion Tolerance	25 inches per second, typical
Supported 1D Symbologies	Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2of 5, Korean 3/5, GSI DataBar, Base 32 (Italian Pharma)
Supported 2D Symbologies	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes.
Supported OCR Symbologies	OCR-A, OCR-B, MICR E13B, US Currency
Supported Aiming Modes	Class 2 Laser, Crosshair with bright center for visibility in sunlight; Selectable List mode configurable
Interface	Bluetooth: Class I, v 4.0 with Bluetooth Low Energy (BLE) Supported Profiles: Serial Port Profile (SPP), Human Interface Device Profile (HID), Service Discovery Application Profile (SDAP) NFC Tag: Tap to pair; used to simplify the pairing process. Pairing: by reading the BT endpoint address as a barcode on the host Zebra device.

Actual images

Key features of Zebra RS6000

1. Compact, wearable design, IP65 and 1.8m shock resistance

The RS6000 is part of Zebra's wireless inventory scanner product line with a durable structure for 1.8 meters of shock resistance when dropped multiple times onto the floor and still functioning normally, with a small body convenient for wearing on the finger to support flexible operation. In addition, the Zebra RS6000 prevents the intrusion of moisture and dirt from the environment well, achieving IP65 standards, protecting the device for many years of use.

2. 1290 x 960 pixel performance, 1D and 2D, SR, MR

The RS6000 achieves an optical resolution of 1290 x 960 pixels for data collection on various surfaces from packaging, label paper to mobile device screens with fast sensitivity, capable of decoding most current 1D and 2D standards. At the same time, the RS6000 has many versions integrated with SE4750-SR or SE4750-MR readers for different long and short-range scanning capabilities, depending on the purpose, investors can equip it appropriately, bringing economic value.

3. Superior energy-saving Bluetooth connectivity

The Zebra RS6000 is a wireless barcode scanner that has been integrated by the manufacturer with many connectivity interfaces such as Bluetooth 4.0 with BLE standard for superior energy saving, with very low battery consumption during a long working day. In addition, the RS6000 barcode scanner also supports Bluetooth Class 1, providing an extended wireless range of up to 91.4 m for fast pairing with mobile computing devices, increasing serviceability and reducing investment costs.

4. LED light support when working

In addition to modern features, the Zebra RS6000 is equipped with programmable LEDs to support user visibility during scanning for better data collection. With multi-color support, the Zebra RS600 provides an optimal feedback experience when color-coded to guide simpler operations.
