Zebra Symbol-DS4608HC Barcode Scanner

The Zebra DS4608HC barcode reader, part of the DS4600 series, is capable of accurately and easily capturing almost any type of barcode found throughout a hospital. The Zebra DS4608 barcode scanner is designed to work in harsh environments, meeting IP52 dust and water resistance standards, and 1.8-meter shock resistance to protect your investment. Contact us now for a consultation.

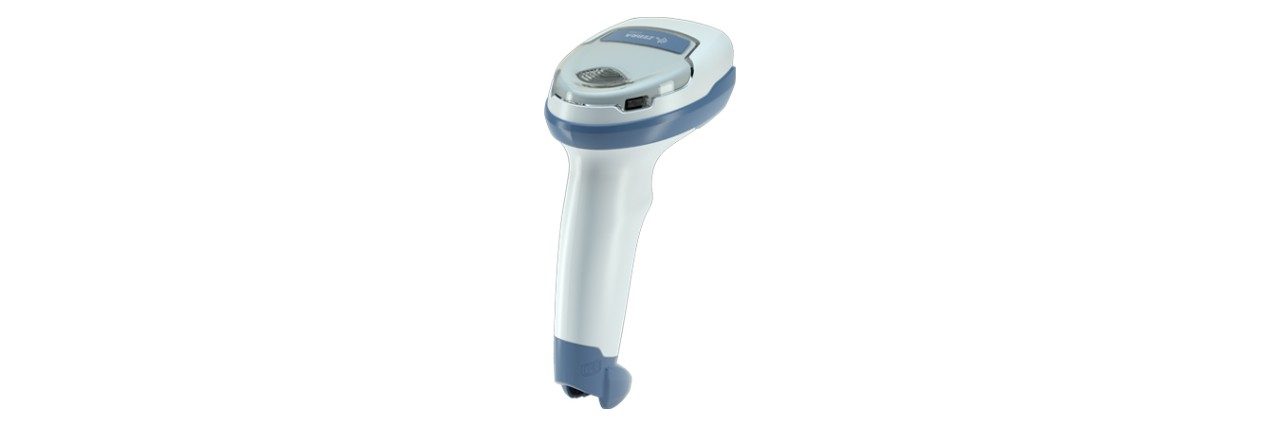

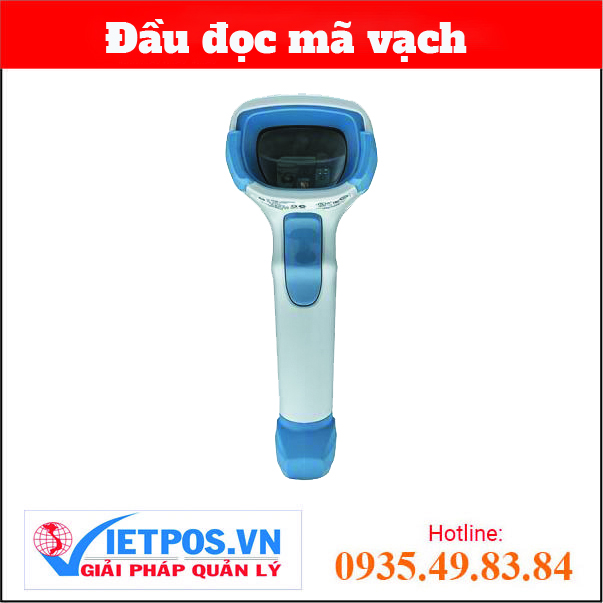

I. Images of theZebra DS4608HC Barcode Reader

II. Technical Specifications

Dimensions	6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.7 cm W x 9.8 cm D
Weight	5.7 oz. / 161.9 g
Input Voltage Range	Host powered 4.5 to 5.5 VDC; External power supply 4.5 to 5.5 VDC
Operating Current at Nominal Voltage (5.0V)	375 mA (typical)
Standby Current (Idle) at Nominal Voltage (5.0V)	150 mA (typical)
Color	White, Blue
Supported Host Interfaces	USB, RS232, TGCS (IBM) 46XX over RS485
Keyboard Support	Supports over 90 international keyboards
User Indicators	Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), haptic/vibration

Graphic Format Support

Images can be exported as Bitmap, JPEG or TIFF

III. Outstanding Advantages

- An 800 MHz microprocessor, high-resolution megapixel sensor, and Zebra's exclusive PRZM Intelligent Imaging technology combine to deliver unparalleled scanning performance on barcodes in any condition.
- This versatile scanner accurately and easily captures almost any type of barcode found throughout a hospital. High-density focus easily reads small and curved barcodes on medicine bottles, IV bags, syringes, and more.
- And white illumination LEDs make it easy to scan barcodes on color-coded sample trays and biopsy slides.
- Easy to clean — with the durability you need for everyday use
- The DS4608-HC can withstand continuous disinfection at the point of care and has safe LED aiming lights for use in the NICU
- Flexible feedback modes — including a night mode with vibration

IV. Applicable Models

* Hospital
- Medication management
- Hospital pharmacy: receiving and inventorying medications
- Hospital laboratory: tracking and tracing specimens
- Operating room: surgical instrument and implant supply
- Patient identification and verification
- Patient admission: ER / triage / hospitalization
- Electronic record access
- Outpatient facility
- Patient identification and verification
- Specimen tracking and tracing
