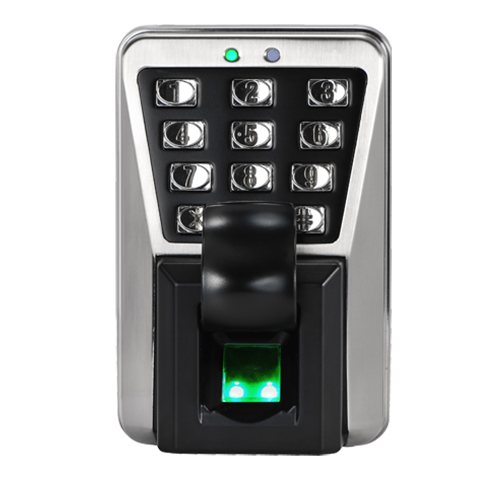

Biometric Access Control Device - MA500

Biometric Access Control Device - MA500 – Ultra-durable access control solution for harsh environments

The MA500 is a highly-rated fingerprint access control device thanks to its stable operation in harsh environments, combining industrial durability with advanced biometric technology. The device not only stands out with its robust metal design but also features many modern security functions, suitable for installation at factory gates, industrial zones, commercial buildings, parking lots, and high-security access areas.

1. Industrial Design – Durable and Vandal-Proof

Unlike typical office fingerprint devices, the MA500 is encased in a sturdy metal shell, capable of resisting physical vandalism and strong impacts. Additionally, the physical keypad with LED backlighting allows users to easily operate even in low light conditions.

The device meets IP65 water and dust resistance standards, ensuring stable operation in outdoor environments, where it is frequently exposed to sun, rain, dust, and high humidity. This is one of the few fingerprint devices on the market that combines both durable design and precise biometric technology.

2. Diverse Authentication Methods – Maximum Security

The MA500 supports multiple authentication methods to optimize security and meet various real-world requirements:

• Fingerprint (FP)

• Proximity Card (RF - EM or optional IC)

• PIN Code

• Combination (FP + RF + PIN)

Users can choose single-step authentication or combine two factors to enhance access security.

3. High Performance – Large Capacity

With a storage capacity of 3,000 fingerprints, 30,000 cards, and 100,000 transaction records, the MA500 is well-suited for businesses with a large number of employees, especially industrial parks, export processing zones, manufacturing plants, or logistics centers.

The device uses the ZKFinger V10.0 algorithm, known for its fast and accurate fingerprint recognition, even with dry, wet, or slightly dirty hands.

4. Flexible deployment – Standalone or network integrated

The MA500 supports both operating modes:

• Standalone: Configured directly on the device via the physical keypad, suitable for small businesses that do not require software.

• Network connection: The device can connect to ZKAccess3.5 software or central control systems via TCP/IP or RS485, allowing managers to quickly control, authorize, and extract data.

Notably, the device can function as a Wiegand fingerprint reader, easily integrating with third-party control panels, making it a perfect replacement for traditional card readers or keypads.

5. Full access control interface

MA500 supports all essential connections in a professional access control system:

• Electric lock

• Door sensor

• Alarm

• Exit button (door opening button from inside)

This makes the device easy to deploy in multi-layered security models or tiered access control within a building.

6. MA500 Technical Specifications

7. Practical Applications

Biometric Access Control Device - MA500 is particularly suitable for environments such as:

• Manufacturing plants, industrial zones, outdoor warehouses

• Areas with high risk of vandalism

• Office buildings requiring two-layer access control

• Power stations, train stations, outdoor parking lots

8. Viet Pos – Official MA500 Distributor in Vietnam

With experience in implementing access control systems, Viet Pos is a reputable supplier of MA500 devices and comprehensive solutions:

Genuine equipment – 12-month warranty
Installation, configuration, and operation guidance from A-Z
Free integration with ZKAccess3.5 software
Attractive discounts for dealers and large-scale projects
