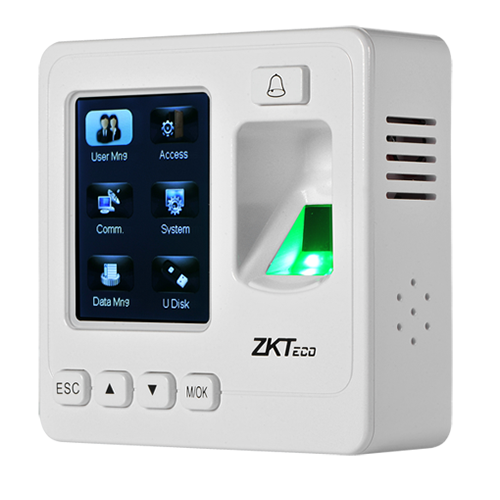

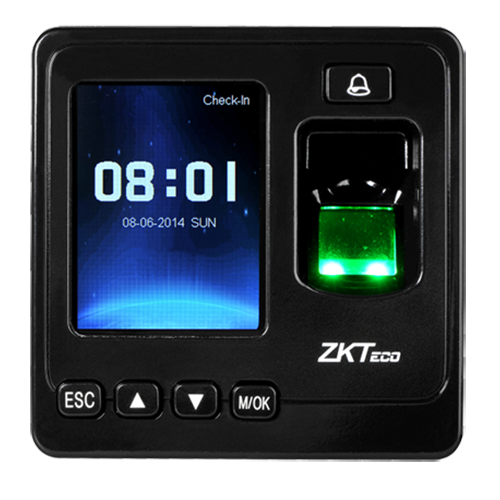

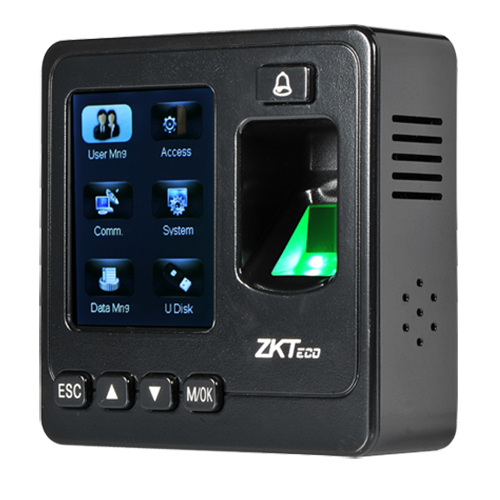

Fingerprint Time Attendance and Access Control Device - SF100

Fingerprint Time Attendance and Access Control Device - SF100 compact, high security

SF100 is a new generation fingerprint access control and time attendance terminal from ZKTeco, designed specifically for businesses, organizations, and offices that require a modern, stable, and highly secure access control solution. With its compact design, intuitive interface, and flexible operation in standalone or networked mode, SF100 is an ideal choice for optimizing human resource management and building security processes.

1. Exquisite design, optimized space

The SF100 Fingerprint Time Attendance and Access Control Device has a compact size of only 90 x 90 x 34.5mm, suitable for wall mounting in any location such as entrances, office doors, hallways, elevators, etc. The device features a 2.4-inch TFT color screen (320 x 240), providing clear display, easy operation, and information retrieval.

In addition, the device is made of sturdy materials, suitable for indoor working environments or sheltered areas, such as offices, supermarkets, factories, data centers, etc.

2. Fast and accurate fingerprint authentication

The SF100 uses a high-quality optical fingerprint sensor from ZKTeco, with a resolution of 500 DPI, providing fast and accurate recognition, even with slightly wet or dirty fingers. The device can store:

• 1,500 fingerprint templates

• 80,000 event logs

This capability allows the SF100 to easily meet the needs of small and medium-sized companies or serve as a secondary reader in a central control system.

3. Flexible Operation Mode – Standalone & Network

The SF100 can operate in both standalone and network modes. Specifically:

• In standalone mode, the device allows user registration, door control, and direct viewing of access history.

• When connected to ZKAccess3.5 software via TCP/IP, RS485, or USB Host, managers can easily monitor, assign access rights, retrieve time attendance data, and configure reports quickly.

4. Superior Flexibility with Wiegand Input & Output

The SF100 supports both Wiegand input and output connections, allowing for:

• Integration with ZKTeco or third-party controllers as a secondary reader.

• Setting up two SF100 devices in a Master & Slave configuration to enable fingerprint authentication at both entry and exit points, enhancing control levels.

• Activating the Anti-passback feature – preventing fraud by ensuring users cannot enter/exit multiple times without following the correct procedure.

5. Comprehensive Communication & Control System

The SF100 is equipped with a full range of ports and functions for access control, such as:

• Electric Lock

• Door Sensor

• Alarm

• Exit Button (door exit button from inside)

• Doorbell

In addition, the device also has 1 auxiliary input (Aux Input), allowing connection of emergency sensors, fire alarms, or other warning devices. In case of an incident, the system can automatically open doors, activate alarms, ensuring immediate safety for users.

6. SF100 Technical Specifications

7. Practical Applications

SF100 is an ideal solution for:

• Businesses, companies, administrative offices

• Factories, production workshops, warehouses

• Schools, training centers, libraries

• Stores, gyms, salons, spas

• Buildings, apartment complexes, controlled parking lots
