Honeywell Metrologic-MS3580 Barcode Reader

Honeywell Metrologic-MS3580 Barcode Reader reads 1 beam or all 20 flexible Quantum T beams. It is a desktop barcode scanner that scans multiple interwoven beams from different directions and allows selection of the scan beam at a convenient size. The product has a sleek and compact design. The small base and various options make it convenient for checkout counters with limited space. The product is distributed by VietPos nationwide. Contact hotline: 0905 295 337 for quick consultation and quotation.

I. Technical Specifications

Operational Features
Barcode Scanning Technology	650 nm Laser Diode Technology
Scan Range	25 mm – 280 mm (1” – 11”) for 0.33 mm wide barcodes
Beam Width	30 mm (1.2”) @ 25 mm (1″); 150 mm (5.9”) @ 2809 mm (11”)
Scan Speed	1650 scan lines / sec, omnidirectional; 80 scan lines / sec, single line
Computer Connectivity	RS232, Keyboard Wedge, IBM 468x/469X, USB, Laser Emulation, OCIA
Weight	170g
Indicator Lights	Green light = ON, ready to scan; Red light = read successfully

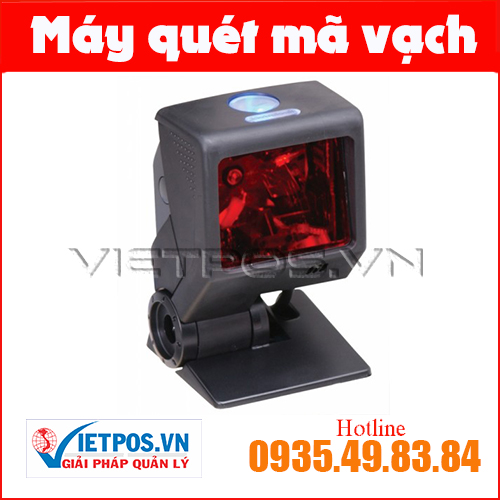

II. Actual Images

III. Technical Features

– Reads standard barcodes such as: 1D, PDF, 2D, Postal and OCR symbologies – Minimum bar width: 1D 5 mil (0.127 mm) 2D 6.7 mil (0.170 mm) – Barcode scanning type: Area Image (838 x 640 pixel array) – System interface: USB, Keyboard Wedge, RS232, IBM 46xx (RS485) – Scanner does not include stand

IV. Application Models

The Honeywell Metrologic-MS3580 Barcode Reader uses Laser technology to scan barcodes quickly and accurately, saving a lot of time in inventory checking. The product is used to scan product barcodes in many models such as: – Supermarkets – Grocery stores – Mini marts – Cosmetic stores – Fashion stores – Warehouses – Clothing shops – Household appliance stores – Fruit stores
