Honeywell Metrologic-MS5145 Barcode Reader

The Honeywell Metrologic-MS5145 barcode scanner is a barcode reader device with two operating modes: trigger scan or automatic scan, at high speed. It is very proactive in scanning barcodes when barcodes are very close to each other. The product is distributed by the VietPos system nationwide. Contact hotline: 0905 295 337 for quick consultation and quotation.

I. Technical Specifications

Barcode scanning technology	Laser Diode technology 650± 10nm
Laser power	<1.0 mW (peak)
Scan depth of field (Programmable)	0 mm – 140 mm (0”- 5.5”) for 0.33 mm (13 mil) wide barcodes
Scan line width	49 mm (1.9 “) @ face; 195 mm (7.7”) @ 140mm (5.5”)
Scan speed	72± 2 scan lines / second
Scan pattern / Number of scan lines	Single line scan
Minimum barcode width	0.102 mm ( 4.0 mil )
Barcode decoding capability	Capable of reading most common 1D barcodes worldwide.
Computer connection	Choose one of the connection types via COM port (RS232); keyboard wedge, USB
Required print quality of readable barcodes	Minimum 35% reflective contrast ratio
Maximum number of characters in readable barcode	Up to 80 characters (The maximum number of characters in a readable barcode depends on the size and resolution of the barcode)
Scan angle (Roll), (Pitch), (Yaw)	42o, 68o, 52o
Audio signal	Can use one of 7 audio signals; or no sound
Operating indicator light	Green light = ON, ready to scan; Red light = readable
Physical Specifications
Scanner Width	Head: 169mm (6.7”)
Scanner Length	63 mm (2.5”)
Scanner Height	35 mm (1.4”)
Scanner Weight	97 g (3.41 oz)
Connection Port	RJ45, ten-pin
Connection Cable	Standard 2.7 m (7”)

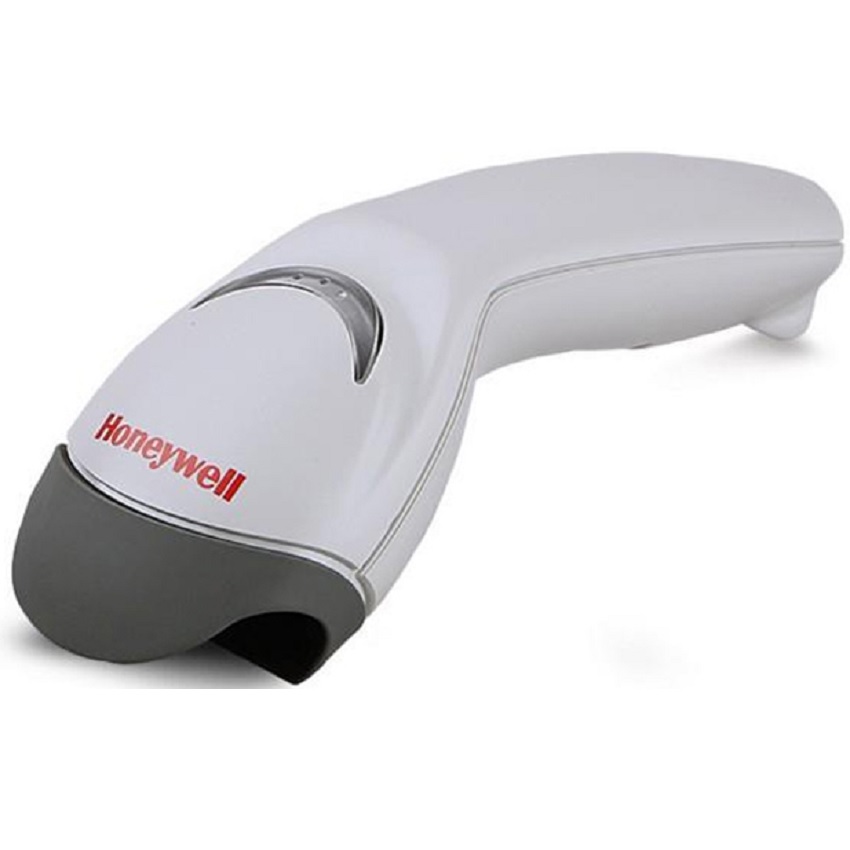

II. Actual Images

III. Technical Features

- Stores, points of sale that also scan barcodes on menus - Library applications for managing books and student cards - Barcode applications in medicine, pharmaceuticals, cosmetics, books, etc. - Barcode scanning applications for mobile phone centers - Barcode scanning applications for stations, warranty centers, services for electronic devices - Goods delivery, warehouse management

IV. Application Model

Honeywell Metrologic-MS5145 Barcode Scanner uses Laser technology to scan barcodes quickly and accurately, saving a lot of time in checking goods. The product is applied to scan product barcodes in many models such as: – Supermarket – Grocery store – Mini mart – Cosmetic store – Fashion store – Warehouse – Clothing store – Household goods store – Fruit store
