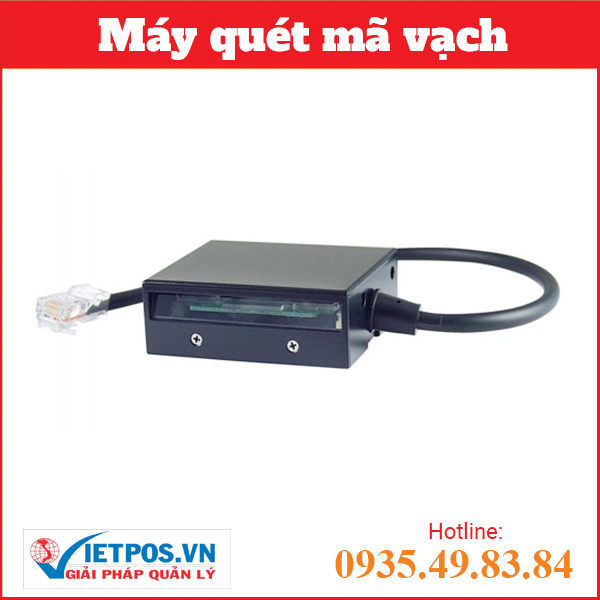

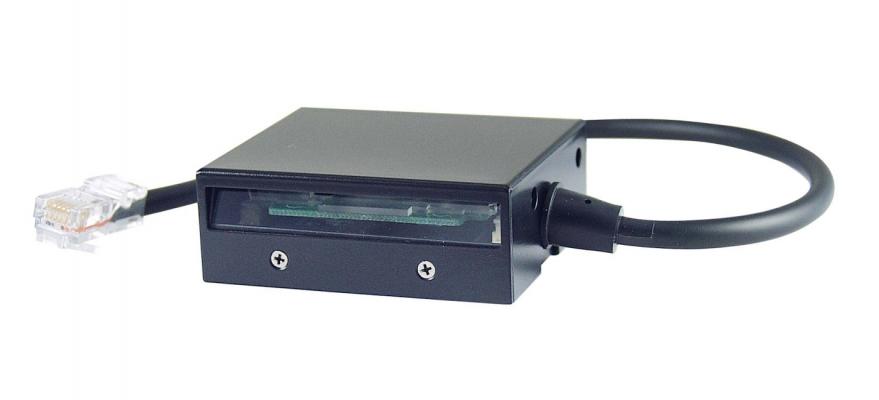

OPTICON NFT-7345 Industrial Scanner

SKU: NFT-7345 · Còn hàng Bảo hành 12 tháng

Category: Barcode reader, Industrial Scanner

Contact for quote

Liên hệ để nhận báo giá nhanh trong 30 phút

PRODUCT DESCRIPTION OPTICON NFT-7345 is a compact and robust fixed CCD industrial barcode scanner. Utilizing OPTICON 's proprietary technology, the NFT-7345 delivers extremely fast and accurate scanning results. If you are interested in the OPTICON NFT-7345 product, please contact Viet POS immediately via hotline 090…

Giao hàng toàn quốc

Hỗ trợ kỹ thuật 24/7

Chính hãng 100%

4 văn phòng HCM·ĐN·CT·HN

Description

PRODUCT DESCRIPTION

OPTICON NFT-7345 is a compact and robust fixed CCD industrial barcode scanner. Utilizing OPTICON's proprietary technology, the NFT-7345 delivers extremely fast and accurate scanning results. If you are interested in the OPTICON NFT-7345 product, please contact Viet POS immediately via hotline 0905 295 337 for detailed consultation.

TECHNICAL SPECIFICATIONS

Operating indicators
+ Visual	1 LED (red/green/orange)
+ Non-visual	Buzzer
Communication
+ RS232	DB25 F connector with external power supply
+ USB	Ver. 2.0, HID/VCP, USB-A connector
Power
+ Voltage requirement	5V ± 5%
+ Current consumption	220mA (typical use)
Barcode scanner Optics
+ Light source	660 nm red LED
+ Scan method	CCD linear sensor
+ Scan rate	700 scans/sec
+ Trigger mode	Multiple read, serial software trigger
+ Reading pitch angle	-6 to 0º, 0 to +6º
+ Reading skew angle	I-type: -30 to -10°, +10 to +30° / L-type: -25 to -10°, +10 to +25°
+ Reading tilt angle	-20 to 0°, 0 to +20°
+ Focal plane	L-type: 31.4 mm / 1.24 in, I-type: 35.4 mm / 1.39 in
+ Curvature	R>30 mm (EAN8), R>20 mm (EAN13)
+ Min. resolution at PCS 0.9	0.2 mm / 0.15 mm at 60 mm reading length
+ Min. PCS value	0.45
+ Depth of field	I-type: Ca. 30 - 42 mm / 1.18 - 165 in (Ca. -5 to + 5 mm from focal plane), L-type: Ca. 30 - 41 mm / 1.18 - 1.61 in (Ca. -5 to +5 mm from focal plane), Ca. 30 - 41 mm / 1.18 - 1.61 in (Ca. -5 to +6 mm
