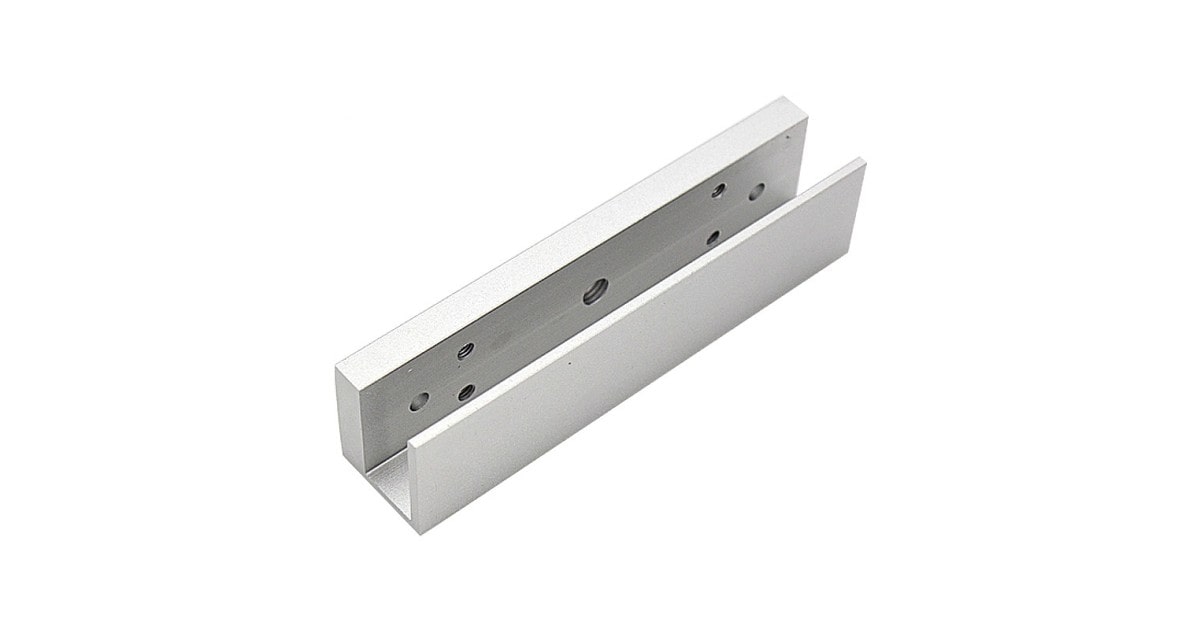

U-SHAPED BOWL PRO-0600U

The PRO-0600U U-bracket is a bracket used to mount the PRO-0600M electromagnetic lock from the PROLOCK brand, suitable for wooden doors, glass doors (8-15mm), inward-opening doors, and 90-degree opening doors.

Outstanding advantages

The PRO-0600U U-bracket is a highly-rated product by users for the following highlights:

1. High-quality material:

• Made from solid cast aluminum alloy, ensuring high durability and good impact resistance.
• The surface is powder-coated, effectively preventing rust and corrosion.

2. Smart design:

• Compact and convenient U-shape, easy to install.
• Compatible with various electromagnetic locks, especially the PRO-0600M.
• Flexible installation position, suitable for various types of doors.

3. Easy to use:

• Simply use screws to fix the U-bracket to the door frame.
• No technical expertise required.

4. Safe and reliable:

• Good load-bearing capacity, ensuring user safety.
• Stable and durable operation for a long time.

In addition, the PRO-0600U U-bracket also has some other highlights such as:

• High aesthetics: Modern and elegant design, suitable for various architectural styles.
• Easy to clean: Smooth surface, easy to wipe and maintain.

Technical specifications

Material	Solid cast aluminum alloy
Dimensions	180 x 43 x 28 mm
Color	Silver
Weight	0.3kg
Design	U-shaped, compact, convenient
Function	Attaches to PRO-0600M magnetic lock
Suitable for	Wooden doors, glass doors (8-15mm), inward-opening doors, 90-degree opening doors
Brand	PROLOCK
Load capacity	500kg
Holding force	1200kg
Operating temperature	-40°C - 60°C
Operating humidity	0% - 90%
Protection class	IP65
Warranty	12 months

Installation Guide

Step 1: Determine the installation position for the U-bracket. The installation position should ensure:

• Approximately 100mm - 120mm above the ground.
• A flat, even surface.
• Close to a power source for connection to the magnetic lock.
• Opposite the installation position of the lock strike on the door frame.

Step 2: Mark the drilling positions for the screw holes on the U-bracket.

Step 3: Use a drill to drill holes at the marked positions.

Step 4: Install the U-bracket in the drilled position, use screws to fix it.

Step 5: Install the PRO-0600M magnetic lock into the U-bracket.

Step 6: Connect the magnetic lock's wires to the power source.

Step 7: Test the magnetic lock's operation.

Actual images

The PRO-0600U U-bracket is the perfect choice for access control systems, ensuring security and convenience for users. The product is distributed nationwide through the VietPos system. Contact us now via hotline: 0905 295 337 for quick consultation and quotation.
