Barcode Scanner OPTICON L50C

Viet Pos specializes in distributing and installing all types of OPTICON L50C barcode scanners nationwide. The product has a competitive low price, compact design, and a very convenient stand, with fast scanning speed. Please contact us immediately for quick consultation and quotation.

Technical Specifications

+ CPU	32-bit CISC, 96 MHz
+ Visual	1 white LED
+ Non-visual	Buzzer
+ Entry options	1 scan key
+ RS232	D-SUB9 pin (with external power supply)
+ Keyboard Wedge	PS/2
+ USB	Ver. 2.0, HID/COM, USB-A connector
+ Voltage requirement	6V ± 5% (RS232)
+ Current consumption	Max. 165mAh
+ Light source	red LED, 624 nm
+ Scan method	CCD linear image sensor, 1500 pixels
+ Scan rate	300 scans/sec
+ Trigger mode	Manual, auto-trigger, stand detection
+ Reading pitch angle	-50 to 0°, 0 to +50°
+ Reading skew angle	-65 to 0°, 0 to +65°
+ Reading tilt angle	25°
+ Curvature	R>15 mm (EAN8), R>20 mm (EAN13)
+ Min. resolution at PCS 0.9	0.076 mm
+ Min. PCS value	0.3
+ Barcode (1D)	Jan/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
+ Postal code	Chinese Post Matrix 2of5, Korean Postal Authority code
+ Temperature in operation	0 to 50 °C / 32 to 122 °F
+ Temperature in storage	-20 to 60 °C / -4 to 140 °F
+ Humidity in operation	5 – 95% (non-condensing)
+ Humidity in storage	5 – 95% (non-condensing)
+ Ambient light immunity	Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
+ Drop test	1.5 m / 5 ft drop onto concrete surface
+ Vibration test	10 – 100 Hz with 2G for 1 hour
+ Protection rate	IP 42
+ Dimensions (w x h x d)	75.4 x 169.5 x 121.2 mm / 2.97 x 6.67 x 4.77 in

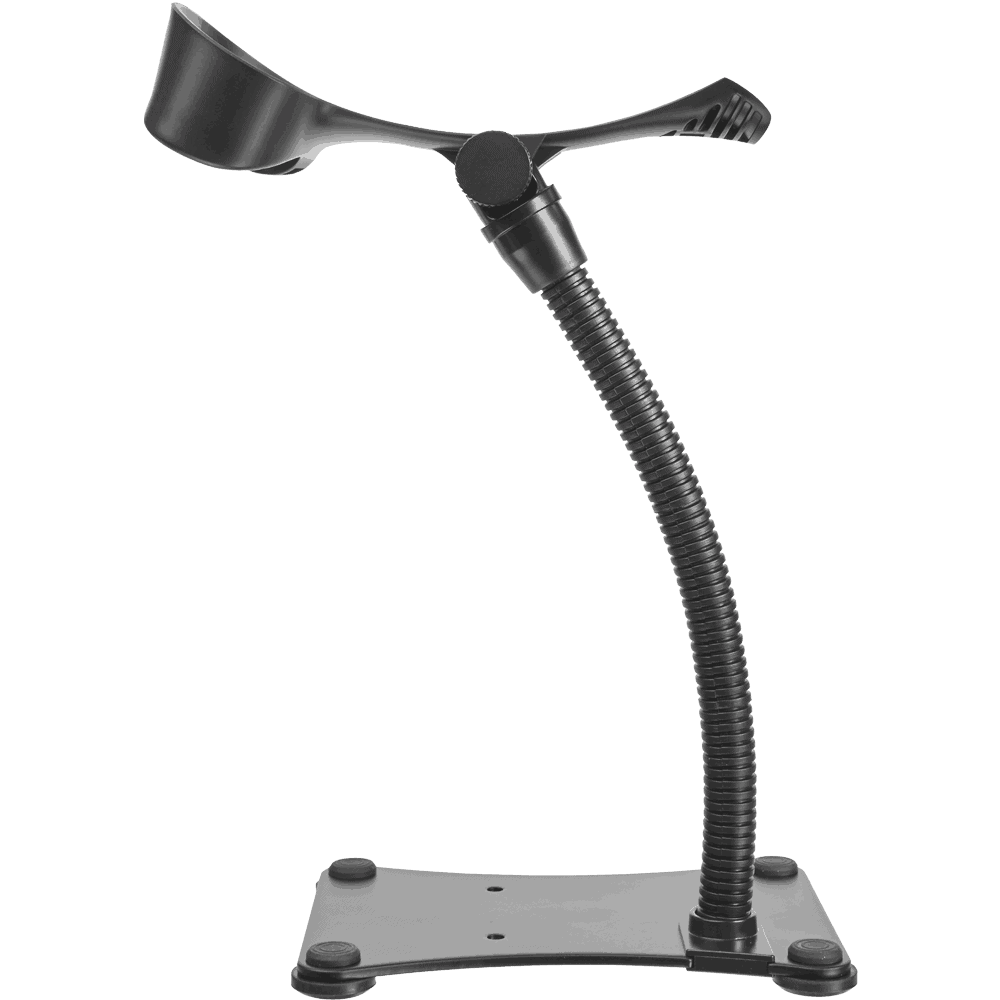

+ Dimensions stand (w x h x d)	120 x 294 x 180 mm / 4.72 x 11.57 x 7.09 in (excl. scanner)
+ Weight body	Ca. 145 g / 5.1 oz (excl. cable)
+Weight stand	Ca. 335 g / 11.8 oz
+ Case	ABS/PC, Black or White

Outstanding advantages

– OPTICON L50C barcode scanner with compact, impressive design – Competitive price – Flexible connectivity support (USB, RS-232 or Keyboard Wedge), high compatibility, easy to use – Scans and decodes highly compressed, complex codes. – Exquisite, convenient and unique design with a beautiful "customizable logo display area". The scanner comes with an adjustable stand that makes the scanner useful as a desktop or POS scanner.

Applicable models

– High-end fashion store – Jewelry store – Cosmetics – Supermarket – Mini mart – Shopping mall – Convenience store…
