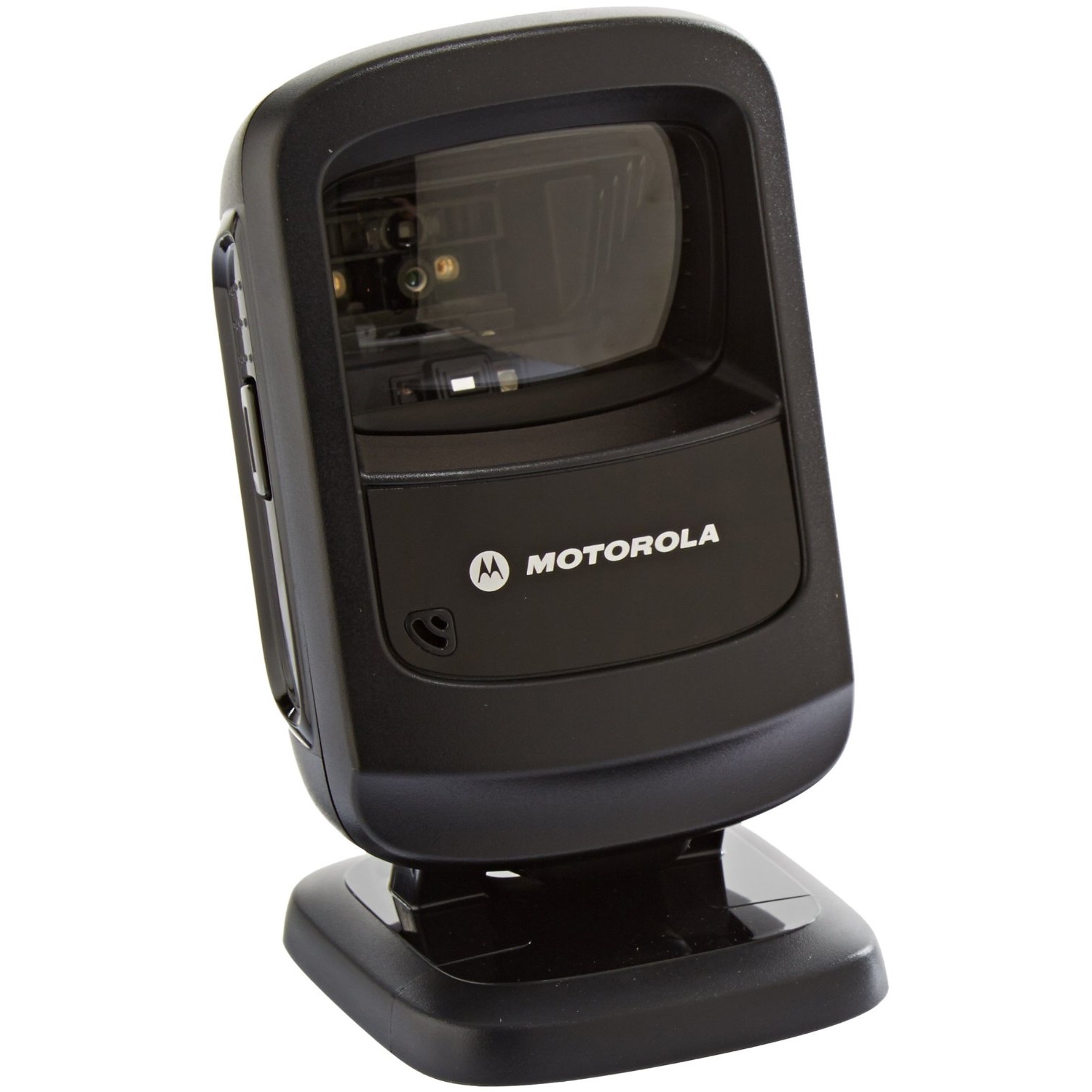

Zebra DS9208 Barcode Scanner

Symbol Zebra DS9208 barcode reader scans almost any barcode on various surfaces. Zebra DS9208 offers comfort in both hands-free and handheld scanning modes, suitable for retail, supermarkets, warehouses, etc. The product is distributed by the VietPos system nationwide. Contact hotline: 0905 295 337 for quick consultation and quotation.

I. Technical Specifications

Model	SYMBOL DS9208
Barcode reading technology	Linear Imager
Barcode reading speed	2.3m / second
Resolution (max)	4 mil
EAS support	Checkpoint EAS deactivation systems
Light source	Aiming pattern: single dot, 625nm LED Illumination: 630nm LEDs
Indicator light	Beeper
Connection standard	USB, RS-232, RS-485 (IBM 46xx Protocols); Keyboard Wedge;
Dimensions	14 cm (H) x 8.21 cm (W) x 8.0 cm (D)
Weight	269 g
Durability, IP standard	Withstands 1.5m drop
Reads barcode standards	Reads all 1D & 2D barcodes – UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) – PDF417 (and variants) : PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes. – 2-D : TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro) – Postal : U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB, Canadian Post (Postbar)

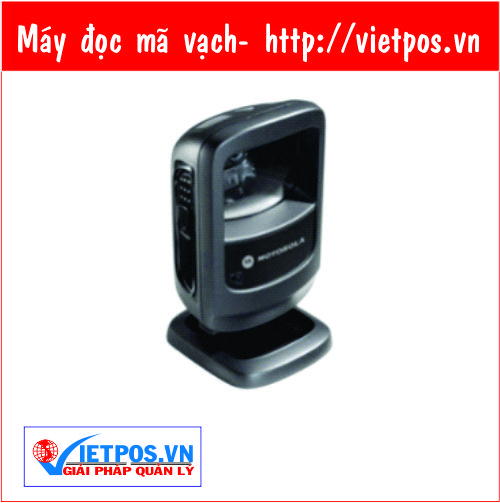

II. Actual Images

III. Technical Features

– Greater efficiency – Convenient premium design – Can read most common barcode types today

IV. Applicable models

The Zebra DS9208 barcode reader uses laser technology to scan barcodes quickly and accurately, saving a lot of time in checking goods. The product is applied to scan product barcodes in many models such as: – Supermarket – Grocery store – Mini mart – Cosmetic store – Fashion store – Warehouse – Clothing store – Household appliance store – Fruit store

V. Our system

Currently, we have 4 large offices nationwide: Ho Chi Minh, Nha Trang, Da Nang, Hanoi. VietPos is constantly striving to improve its office system to promptly serve customers' shopping needs. Come to us now to buy the best products in terms of both price and quality.
