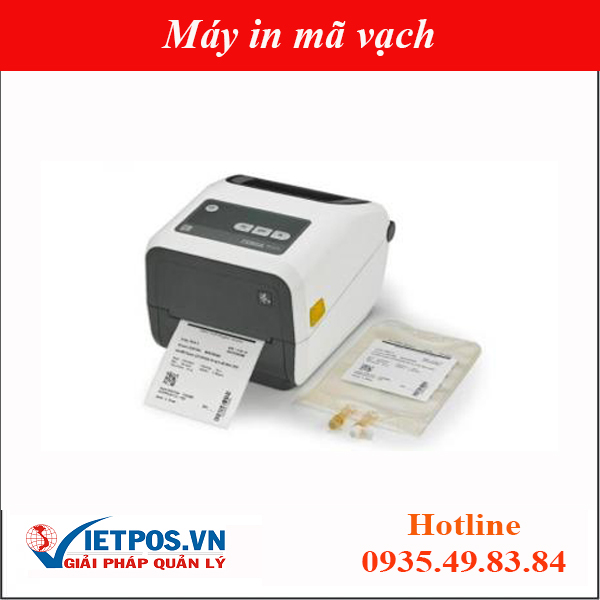

Zebra ZD620-HC - Desktop Thermal Printer

Zebra ZD620-HC goes beyond ordinary desktop printers with premium print quality and modern features. The product integrates both thermal transfer and direct thermal printing, specifically designed for healthcare with disinfectant-ready plastics. With a compact configuration, providing high printing speed, contact Viet POS immediately via hotline: 0905 295 337 for quick consultation and quotation.

Technical Specifications

Dimensions	ZD620d-HC : 8.7 inch L x 7.0 inch W x 5.9 inch H 221 mm L x 177 mm W x 151 mm H ZD620t-HC : 10.5 inch L x 8.0 inch W x 7.5 inch H 267 mm L x 202 mm R x 192 mm H
Weight	ZD620d-HC : 3.6 lb / 1.6 kg ZD620t-HC : 5.5 lb / 2.5 kg
Resolution	203 dpi / 8 dots per mm Optional 300 dpi / 12 dots per mm Resolution can be factory installed or changed on-site via accessory kit. Resolution can be changed from 300 dpi to 203 dpi, as well as from 203 dpi to 300 dpi
Memory	512 MB Flash; 256 MB SDRAM
Maximum Print Width	4.09 in ./104 mm for 203 dpi 4.27 in ./108 mm for 300 dpi
Maximum Print Speed	8 in./203 mm per second (203 dpi) 6 inch/152 mm per second (300 dpi)
Media Sensor	Full-width, movable reflective/black mark sensor; multi-position transmissive/gap sensor
Operating Temperature	40° to 105° F / 4.4° to 41° C
Storage Temperature	-40° to 140° F / -40° to 60° C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Power	Auto-sensing (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR Qualified; optional 2750 mAh battery

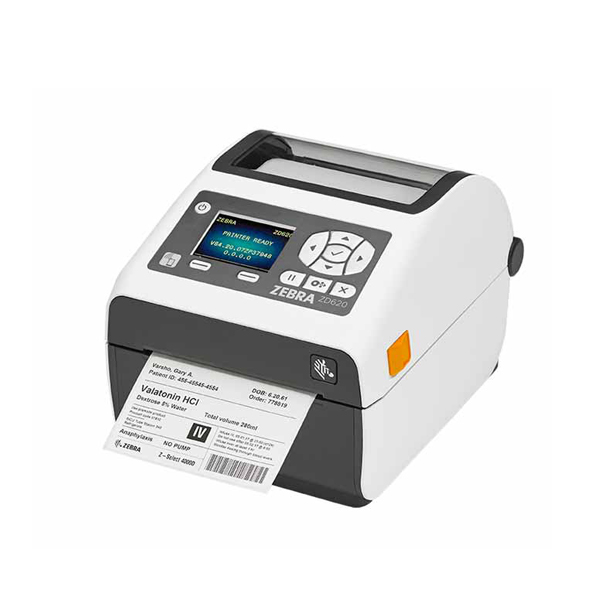

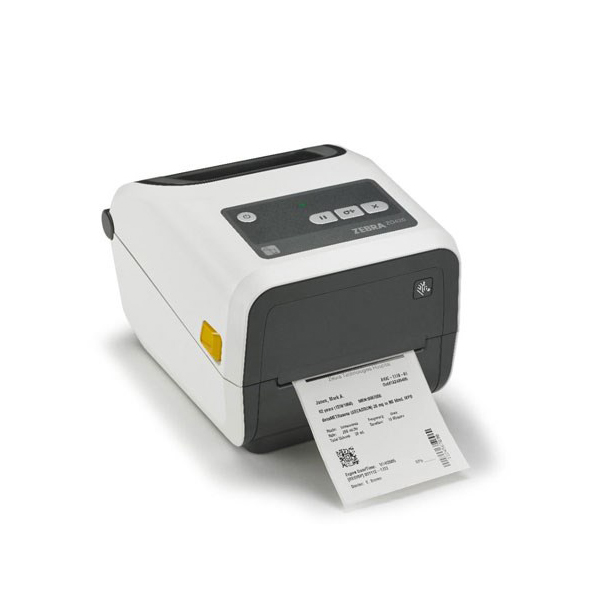

Actual Images

Zebra ZD620-HC Applications

- Prescriptions - Lab and specimen labels - Patient ID wristbands - Content labels - Blood bag and IV labels - Patient record labels - Shipping - Returns processing - EDI transactions - Yard management
