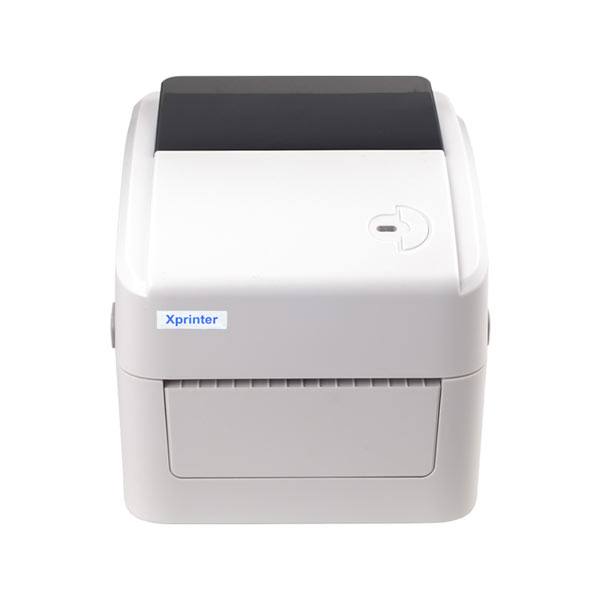

Barcode Printer XP-420B (USB + Bluetooth)

Product Description

XP-420B Barcode Printer (USB + Bluetooth) is a direct thermal printer for fast shipping label printing tasks, economical shipping labels, etc. The XP-420B features a modern design with an elegant, eye-catching white color scheme. The printer has a multi-function button and a two-color indicator light, making operation extremely simple when testing or turning on the machine. In addition, the XP-420B can print directly without an ink ribbon, meeting all label printing needs for shops and supermarkets with larger label sizes such as 50 x 50, 100 x 100, 50 x 30mm, etc. If you are interested and want to learn more about this product, contact us immediately via hotline: 0905 295 337 for quick consultation and quotation.

Technical Specifications of XP-420B Barcode Printer

Model	XP-420B
Resolution	8 dots/mm(203DPI)
Printing method	Direct Thermal
Max.print speed	152 mm (6”)/S
Max.print width	108 mm (4.25”)
Max.print length	1778mm
Media type	Continuous, gap, black mark, fan-fold and punched hole
Media width	20-115mm
Media thickness	0.06~0.25mm
Label length	10~1778mm
Label Roll Capacity	127 mm (5”) external diameter
Physical dimension	215 mm  x 178 mm x 155 mm
Weight	1.31kg
Processor	32-bit RISC CPU
Emulation	TSPL    EPL    ZPL    DPL
Safety Standard	FCC, CE, CB, CCC
Memory	8MB Flash Memory;
	8MB SDRAM;
	Micro SD card reader for Flash memory expansion, up to 4GB
Interface	USB2.0 (Standard) / Lan(Optional) / Bluetooth(Optional) / WIFI(Optional)
Barcode	1D barcode: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,  GS1 DataBar, Code11
	2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec
Environment	Operation condition: -10 ~ 50 °C (14 ~ 122 °F) ,10 ~ 90% non-condensing
	Storage condition : -40 ~ 60 °C (-40 ~ 140 °F), 10 ~ 90% non-condensing

Applications of XP-420B Barcode Printer (USB + Bluetooth)

– Label production: printing product labels, instruction labels, supplementary labels – Healthcare labels: Patient identification, pharmacy, blood sample identification, test samples... – Retail, shops, restaurants: Price tags, price labels, order labeling, product labeling – Transportation & Logistics: shipping labels – Printing shipping bills and orders for e-commerce platforms such as Tiki, Shopee, Sendo, Lazada,... – Fast delivery, economical delivery labels – Entertainment services – Factories, warehouses – Supermarkets, department stores, fashion shops,...
