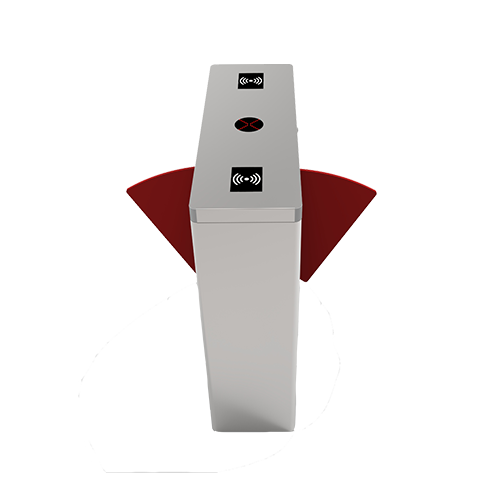

Two-Lane Flap Barrier - FBL1200 Pro

SKU: FBL1200 Pro · Còn hàng Bảo hành 12 tháng

Category: Control - Timekeeping, Smart Access Control, Lane Security Gate, Flap Barrier Gate

Contact for quote

Liên hệ để nhận báo giá nhanh trong 30 phút

FBL1200 Pro – Two-Lane Barrier Gate Cost-Optimized for Access Control The FBL1200 Pro two-lane barrier gate is a two-lane security barrier gate designed by ZKTeco with efficiency, cost-effectiveness, and durability in mind, suitable for areas with high foot traffic. The device is an expansion module in an access contr…

Giao hàng toàn quốc

Hỗ trợ kỹ thuật 24/7

Chính hãng 100%

4 văn phòng HCM·ĐN·CT·HN

Description

FBL1200 Pro – Two-Lane Barrier Gate Cost-Optimized for Access Control

The FBL1200 Pro two-lane barrier gate is a two-lane security barrier gate designed by ZKTeco with efficiency, cost-effectiveness, and durability in mind, suitable for areas with high foot traffic. The device is an expansion module in an access control system, often combined with the FBL1000 Pro series to expand the number of lanes while maintaining performance and stability.

With its compact design, high-quality SUS304 stainless steel material, and stable, smooth operation, the FBL1200 Pro is a cost-effective and efficient solution for businesses, buildings, and areas requiring clear entry and exit lane separation.

Outstanding Advantages of FBL1200 Pro

Flexible lane expansion solution

The FBL1200 Pro does not operate independently but is designed to connect with the main gates of the FBL1000 Pro series, helping to expand the number of control lanes in the system without incurring additional costs for each individual device.

Compact design – flexible installation

With dimensions of only 870 × 300 × 1000 mm, the FBL1200 Pro is particularly suitable for areas with narrow spaces, small corridors, or where multiple consecutive lanes need to be separated.

Smooth operation – long lifespan

Throughput speed: RFID up to 30 people/minute, fingerprint 25 people/minute
MCBF reaches 2 million uses, ensuring long-term stable operation
Smooth "open-retract" barrier mechanism, no noise

Smart security integration

Clear LED directional lights
Automatic opening in emergencies
Acrylic or tempered glass material enhances aesthetics and safety

Detailed Specifications

Item	Specification
Power supply	AC 100 ~ 120V / 200 ~ 240V, 50/60Hz
Operating temperature	-28°C to 60°C
Operating humidity	5% to 80%
Usage environment	Indoor / Outdoor (with shelter)
Throughput speed	RFID: 30 passes/min, Fingerprint: 25 passes/min
Passage width	600 mm
Base dimensions	840 × 870 mm
Device dimensions (L×W×H)	870 × 300 × 1000 mm
Packaging dimensions	1000 × 440 × 1220 mm
Net weight	58 kg
Packaged weight	92 kg
Lid and casing material	SUS304 stainless steel
Barrier material	Acrylic (tempered glass optional)
Barrier mechanism	Swing out – retract
LED indicator	Yes
Emergency mode	Supported
Security level	Medium
MCBF	2 million cycles
Warranty	1 year
