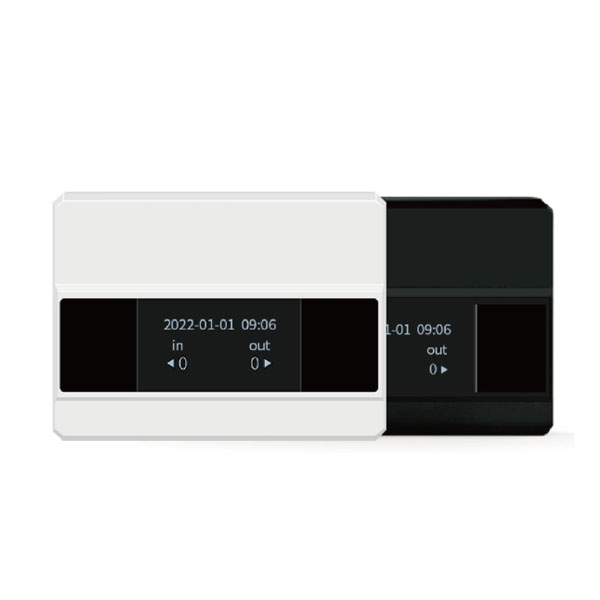

Automatic People Counting Camera HX-HE1

Automatic people counting system, counting people in and out using dedicated people counting cameras or sensors. The system is used to statistically count people entering and exiting an area, store, or shopping mall. The HX-HE1 automatic people counting camera can collect valuable conversion rate information to provide your store with reliable data for making important business decisions.

HX-HE1 Specifications

Dimension and Weight	Length 65 mm Breadth 50 mm Thickness 25 mm	Weight Gross weight: 0.37KG (including accessories) Net weight: 0.076KG Actual size and weight may vary depending on configuration, manufacturing process, and measurement method
Install and Visual parameter	Install The inlet and outlet sides are fixed	Visual parameter Visual distance (coverage) indoor 1m-20m, outdoor 1m-17m
Accuracy rate and Height	Accuracy rate ≥80% in a standard environment	Height Suggestion 1.0m-1.4m
Power and Power supply mode	Power 0.004-0.37W	Power supply mode 3.7VLi-ion (2000mAh) Type-c Wired power supply
Environment and Battery Life	Environment Operating temperature: 0℃～40℃ Operating humidity: 10%～80%RH Non-condensing Storage temperature: -40℃～70℃ Storage humidity: 5%～90%RH Non-condensing	Battery Life 1-3 months under standard conditions
Accessories list	Accessories list Charger (x1) Battery (x2) Stand (x2) 3M Glue (x4) Certificate (x1) Instructions (x1) Warranty Card (x1)

Main features of HX-HE1

• Uses filtering analysis algorithm. It has strong anti-interference capability and can count in and out in both directions.


• Two-way counting in and out


• Supports Type-c cable and 18000mAh battery power. The 2000mAh battery can last for 3 months.


• The device screen can query accumulated data for nearly 90 days (daily), nearly 100 weeks (weekly), nearly 36 months (monthly), and nearly 10 years (yearly).


• Easy to install, super 3M double-sided adhesive, short-term temperature resistance 130-150oC, long-term temperature resistance 80-93oC.


• Data security and stability, no privacy issues.

Applicable models of HX-HE1

– Supermarkets – Shopping malls – Bookstores – Cosmetics store chains – Fashion stores – Retail store chains – Personal goods shops…
