Control Panel - C2-260

SKU: C2-260 · Còn hàng Bảo hành 12 tháng

Category: Smart Access Control, Door Control, Control Panel

Contact for quote

Liên hệ để nhận báo giá nhanh trong 30 phút

C2-260 Control Panel – Compact 2-Door Control Solution, Flexible Expansion C2-260 is an IP-based two-door access control device, with a compact, modern yet powerful design, suitable for RFID security systems in offices, smart buildings, warehouses, factories, or residential areas. The device is perfectly compatible wi…

Giao hàng toàn quốc

Hỗ trợ kỹ thuật 24/7

Chính hãng 100%

4 văn phòng HCM·ĐN·CT·HN

Description

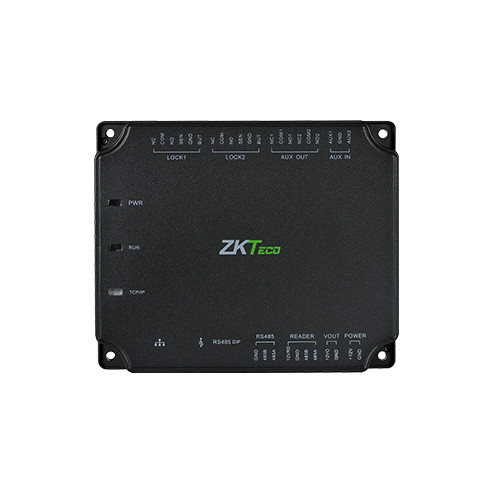

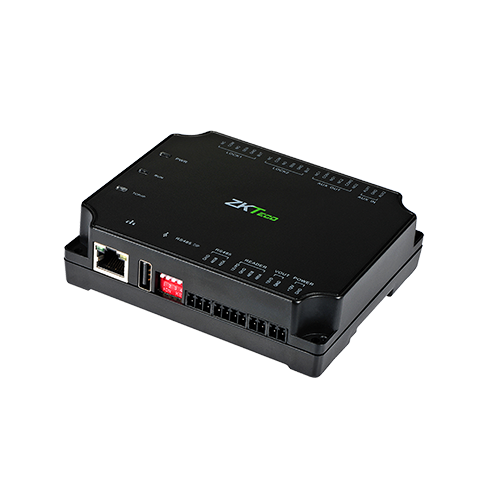

C2-260 Control Panel – Compact 2-Door Control Solution, Flexible Expansion

C2-260 is an IP-based two-door access control device, with a compact, modern yet powerful design, suitable for RFID security systems in offices, smart buildings, warehouses, factories, or residential areas. The device is perfectly compatible with the web-based ZKBioAccess software, allowing users to easily manage access anytime, anywhere.

With the ability to expand up to 10 doors via DM10 connection, the C2-260 is not only ideal for small projects but can also be flexibly deployed in medium-sized access control systems.

Outstanding Advantages

2-door control by default: Independently manages 2 doors, compatible with various reader types.

Easy expansion via RS485 port: Can expand up to 8 DM10 expansion boards, supporting up to 10 doors, suitable for future system upgrade needs.

Multi-reader compatibility:

RS485 readers
Wiegand readers via WR485 converter
Supports AUX485 expansion with 4 auxiliary inputs

Large data management: Stores up to 30,000 user cards and 200,000 event records, ensuring continuous system operation without interruption.

ZKBioAccess Web-based management software: Intuitive interface, remote access, easy to install and operate.

Compact design – easy installation: Dimensions of only 116 x 96 x 31 mm, suitable for flush mounting, technical cabinets, or space-constrained areas.

Detailed Specifications

Parameter	Details
Number of supported doors (default)	2 doors
Number of supported readers	4 readers
Supported reader type	RS485 and Wiegand (via WR485)
RS485 expansion port	1 port
RS485 reader port	1 port
Auxiliary input	2 AUX IN
Auxiliary output	2 AUX OUT
DM10 expansion	Max 8 expansion boards (each DM10 controls 1 door)
WR485 expansion	Max 4 WR485 (supports Wiegand readers)
AUX485 expansion	Max 2 AUX485 (supports 4 AUX IN)
User Capacity	30,000 cards
Event Log Capacity	200,000 events
RAM	64MB
Communication	TCP/IP, RS485
Power Supply	DC 9.6V – 14.4V
Operating Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity	20% ~ 80%
Dimensions	116.47 x 96.49 x 31.40 mm
