Elevator Access Control System - ECT10 & EXT16

ECT10 & EXT16 – Powerful, Flexible, and Cost-Effective Elevator Control Solution

ECT10 & EXT16 are elevator control units from ZKTeco, specifically designed for modern building systems to ensure effective floor security, flexible expansion, and convenient management via dedicated software.

The controller allows access to be limited by fingerprint, RFID card, or password, and can set time schedules or "Passage" mode (allowing free access within a defined time frame).

Flexible Expansion Configuration

• ECT10 controls 10 floors

• Connects up to 3 EXT16s, each EXT16 controls an additional 16 floors

• Total control of 58 floors with one ECT10 unit

• Multiple ECT10 units can be daisy-chained to control more elevators/floors

Key Features

• Compatible with fingerprint, RFID card, password

• Supports separate working hours/access hours

• Easy management of users & access floors via software

• Standard RS485 communication, stable and secure connection

• Can be integrated into other software systems via SDK

Detailed Technical Specifications

ECT10 – Main Controller

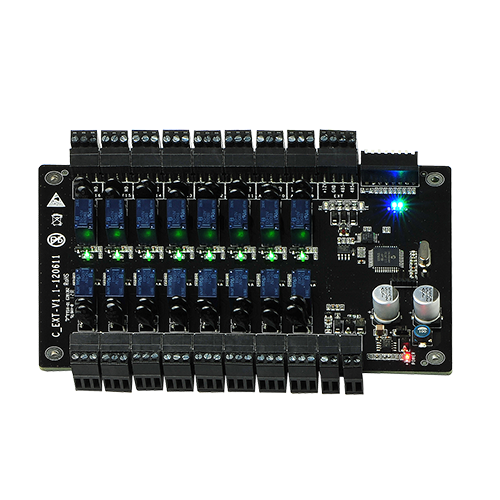

EXT16 – Floor Expansion Board

Powerful Connectivity – Smart Management

• TCP/IP or RS485 connection

• Easily expand the number of controlled floors according to project needs

• Access data is securely stored internally

• Can be configured and managed via software or SDK integration

ZKTeco Ecosystem Integration

• Synchronize with ZKBio CVSecurity or BioAccess software

• Supports centralized user management, by shifts, user groups

• Compatible with fingerprint readers, auxiliary card readers via Wiegand or RS485 standard

Contact Viet Pos immediately for connection diagram consultation, dealer price quotes, and elevator access control software demo.
