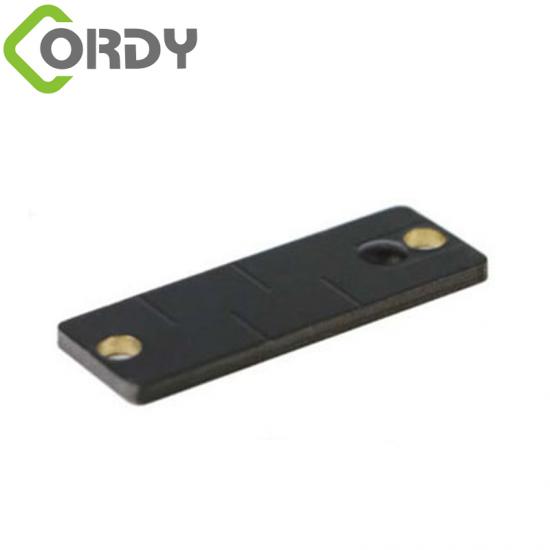

FR4 on Metal Tag DH4215 for Asset Tracking — Mini Metal-Mount Tag

DH4215 is an anti-metal tag designed for harsh environments, resistant to corrosion and high temperatures over long periods. Heat resistance up to 250 degrees C. FR4 material, size 42mm*15mm*2.1mm, weight 2.2g/pc, IC Alien Higgs-4, RFID Protocol EPC Class1 Gen2 ISO18000-6C, IP68, read range on metal up to 680cm (US) and 700cm (EU) with fix reader.

Key Features

• DH4215 has passed the following tests: high temperature test, alternating temperature test, corrosion (acidity/alkaline) testing, vibration test, Ultrasonic washing test
• Before shipment, every tag batch is tested with the European tags comprehensive test instrument, encoding test of EPC and User memory to ensure reliability and performance consistency
• Mounting options on metal surfaces: 3M glue / Screw / Rivets / Double sides adhesive to suit installation conditions
• RFID Protocol: EPC Class1 Gen2, ISO18000-6C
• Frequency: US 902-928MHz, EU 865-868MHz, or Customs
• IC type: Alien Higgs-4; Memory: EPC 96bits (Up to 480bits), USER 512bits, TID64bits
• Write Cycles: 100,000times; Functionality: Read/write; Data Retention: Up to 50 Years
• Work Temperature: -40℃ to +150℃; Storage Temperature: -55℃ to +200℃; Peak value: 280°С for 50 minutes, 250°С for 150minutes
• Reliability Test: Temperature Test (working 10hours in 180°С); IP Classification: IP68
• Read Range (On Metal) — Fix Reader ThingMagic M6-E, 36dBm/4W: Up to 680cm (US) 902-928MHz, Up to 700cm (EU) 865-868MHz
• Read Range (On Metal) — Handheld Reader 9908, R2000, 33dBm/2W: Up to 530cm (US) 902-928MHz, Up to 550cm (EU) 865-868MHz

Recommended Applications

• Asset tracking
• Metal surfaces
• High-temperature environments
• Corrosive environments
• Warehouse / industrial

Contact 0935 498 384 for a quote.
