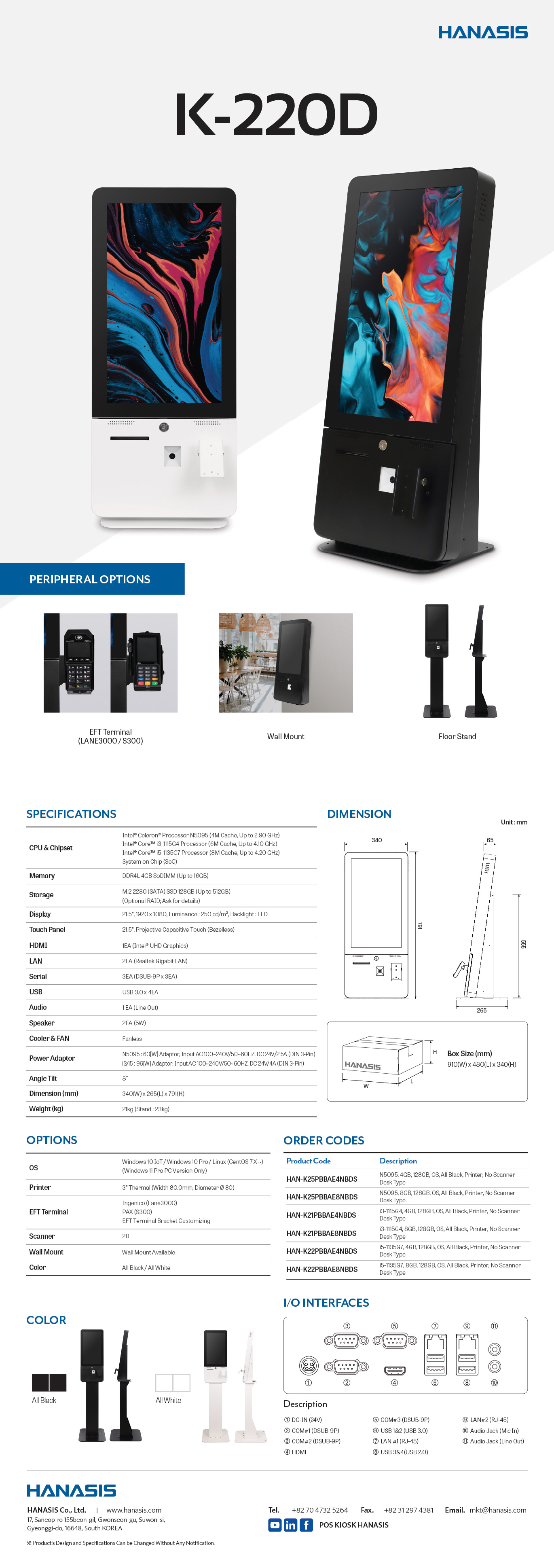

HANASIS K-220D Kiosk — 21.5" Full HD Display, PCAP Touch, Intel Core i3/i5

The HANASIS K-220D is a freestanding interactive kiosk with a 21.5" 1920 x 1080 24Bit display, 250 cd/㎡ luminance, LED backlight, 21.5" Projective Capacitive Touch (bezelless) touch panel, Intel Celeron N5095 / Core i3-1115G4 / Core i5-1135G7 CPU, DDR4L 4GB SoDIMM RAM (up to 16GB), M.2 2280 (SATA) 128GB SSD (up to 512GB), fanless design, dimensions 340(W) x 265(L) x 791(H) mm, weight 21kg.

Key Features

• CPU: Intel® Celeron® Processor N5095 (4M Cache, Up to 2.90 GHz) / Intel® Core™ i3-1115G4 Processor (6M Cache, Up to 4.10 GHz) / Intel® Core™ i5-1135G7 Processor (8M Cache, Up to 4.20 GHz)
• Memory: DDR4L 4GB SoDIMM (Up to 16GB)
• Storage: M.2 2280 (SATA) SSD 128GB (Up to 512GB)
• Display: 21.5", 1920 X 1080, 24Bit, Luminance : 250 cd/㎡, Backlight : LED
• Touch Panel: 21.5" Projective Capacitive Touch (Bezelless)
• HDMI: 1EA (Intel® UHD Graphics)
• LAN: 2EA (Realtek Gigabit LAN)
• Serial: 3EA (DSUB-9P x 3EA)
• USB: USB 3.0 x 4EA
• Audio: 1EA (Line Out)
• Speaker: 2EA (5W)
• Cooler & FAN: Fanless
• Power Adaptor: N5095 : 60[W] Adaptor, Input AC 100~240V/50~60HZ, DC 24V/2.5A (DIN 3-Pin); i3/i5 : 96[W] Adaptor, Input AC 100~240V/50~60HZ, DC 24V/4A (DIN 3-Pin)
• Angle Tilt: 8°
• Dimension (mm): 340(W) x 265(L) x 791(H)
• Weight (kg): 21kg (Stand : 23kg)
• Options — OS: Windows 10 IoT / Windows 10 Pro / Linux (CentOS 7.X ~) * Windows 11 Pro PC Version Only
• Options — Printer: 3” Thermal (Width 80.0mm, Diameter Ø 80)
• Options — EFT Terminal: Ingenico (Lane3000) / PAX (S300) / Clover (Flex) EFT Terminal Bracket Customizing
• Options — Scanner: 2D
• Options — Wall Mount: Wall Mount Available
• Options — Color: All Black / All White

Recommended Applications

• Interactive kiosk
• Retail POS
• Self-service
• EFT payment
• Information lookup
