Lane Gate - Mars Pro S1200
Category: Control - Timekeeping, Smart Access Control, Lane Security Gate, Swing Barrier Gate
Liên hệ để nhận báo giá nhanh trong 30 phút
ZKTeco Mars Pro S1200 Lane Gate – The Pinnacle of Access Control Technology The Mars Pro S1200 Lane Gate is a premium version from the Mars series – the most advanced lane gate solution from ZKTeco , integrating advanced technology with an optimized design for superior performance and reliability. With intelligent rec…
Description

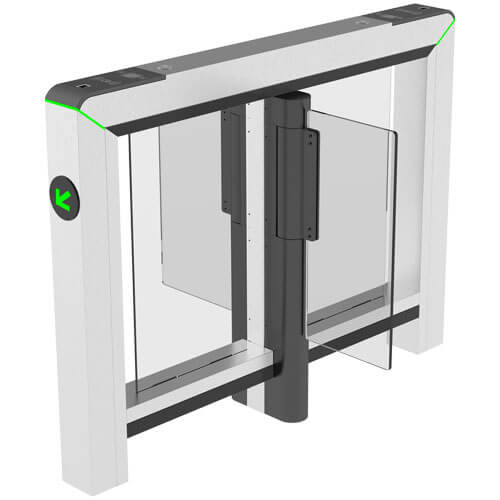

ZKTeco Mars Pro S1200 Lane Gate – The Pinnacle of Access Control Technology
The Mars Pro S1200 Lane Gate is a premium version from the Mars series – the most advanced lane gate solution from ZKTeco, integrating advanced technology with an optimized design for superior performance and reliability. With intelligent recognition capabilities and extremely high durability, this device is a top choice for projects requiring strict security and high-speed access control.
Outstanding Features of Mars Pro S1200
-
Advanced servo technology: Servo motor ensures precise, durable swing gate control, operating more smoothly and stably than conventional motors.
-
16 pairs of infrared sensors: Enhances anti-tailgating capabilities, ensuring absolute safety in all situations.
-
Screw-free modular design: Easy to install and maintain, saving up to 30% of deployment time.
-
Impressive mechanical lifespan: Achieves an MCBF of up to 10 million cycles, demonstrating the superior durability of the Mars Pro series.
-
Premium and durable materials: Uses SPCC or optional SUS316 high-grade stainless steel, stainless steel cover, and Acrylic or tempered glass barriers.
-
Energy saving: Power consumption is only 70W and reduces to 20W in standby mode.
Detailed Technical Specifications
| Parameter | Details |
|---|---|
| Model | Mars Pro S1200 |
| Power Supply | AC 100 ~ 120V / 200 ~ 240V, 50 ~ 60Hz |
| Power | 70W; 20W (standby) |
| MCBF | 10 million open/close cycles |
| Main Motor | Servo |
| Throughput Speed | Up to 30 people/minute |
| Barrier Movement | Swing |
| Operating Noise | < 60 dB |
| Infrared Sensors | 16 pairs |
| LED Indicator | Supported |
| Operating Temperature | -25°C ~ 65°C |
| Operating Humidity | 20% ~ 95% (non-condensing) |
| Usage environment | Indoor/outdoor (with canopy) |
| Passage width | 650mm (optional up to 900mm) |
| Dimensions (LWH) | 1360 x 120 x 1020 mm (±5mm) |
| Packing dimensions | 1510 x 365 x 1216 mm |
| Net weight | 65 kg (±5kg) |
| Gross weight | 90 kg (±5kg) |
| Cabinet material | SPCC (optional SUS316) |
| Lid material | Stainless steel (optional SUS316) |
| Barrier material | Acrylic (optional tempered glass) |
| Protection level | IP34 |
| Packaging material | Wooden box |
| Warranty | 5 years |
Practical Applications
-
Office buildings, financial headquarters, banks
-
Schools, research institutes, libraries
-
Government agencies, administrative centers
-
Industrial parks, manufacturing plants
-
Shopping malls, high-end entertainment centers
