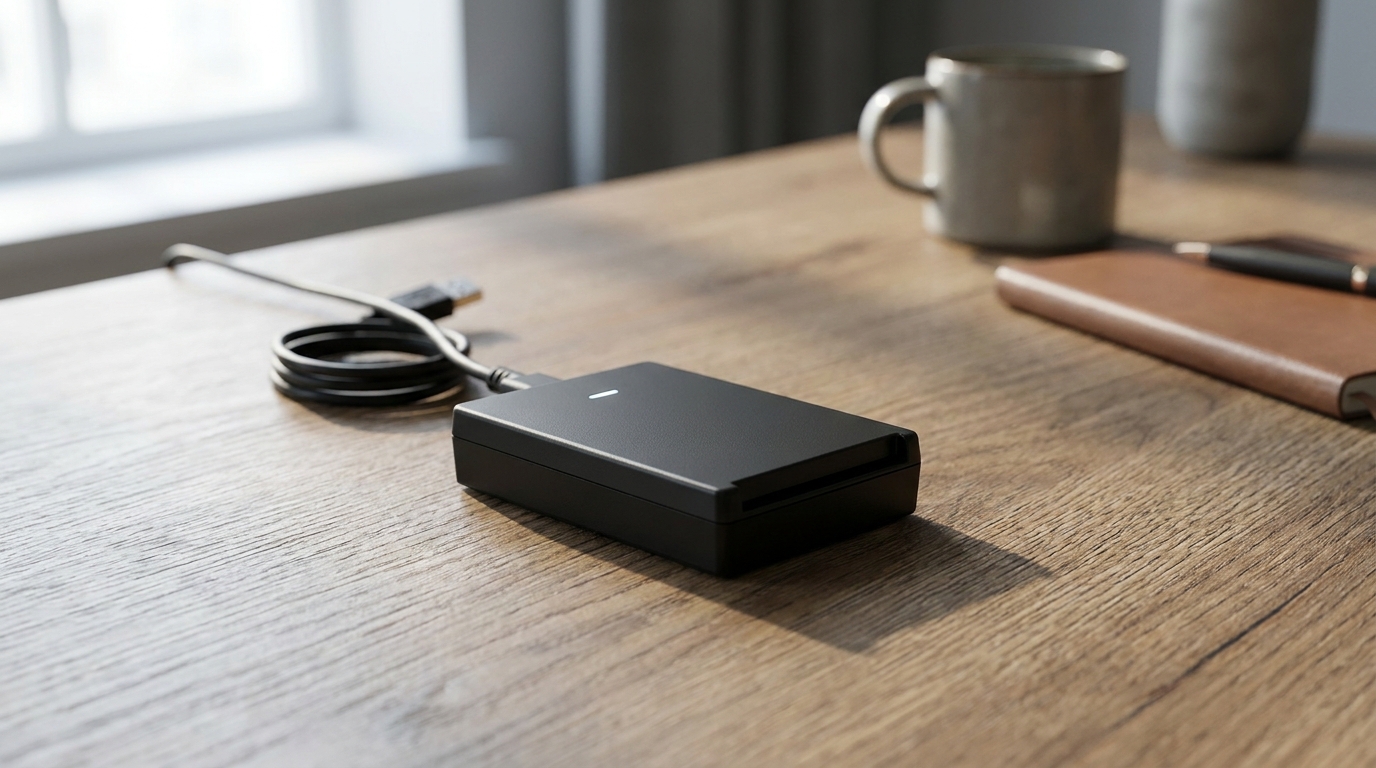

Mango TK9013 HF RFID Keyboard Port IC Card Reader

Mango HF RFID Keyboard port IC card reader TK9013 is a 13.56MHz IC card reader, model TK9013, 5V DC power supply, current <80mA, output port USB/RS232/Keyboard, reading distance >5cm, reading speed <100ms, dimensions 110x80x30mm, weight 0.25KG.

TK9013 IC card reader is a peripheral hardware device in the identity recognition system at Internet cafes. The device is used for IC network card reader, applying microelectronic RF receiving module and embedded microcontroller, combined with efficient decoding algorithm and advanced data processing technology. It decodes and outputs data of μEM4001 64-bit read-only cards and compatible RFID cards. As a peripheral input device for computers, the reader can read the serial number in the RFID card and output it to the computer via PS/2, equivalent to automatically entering the number via keyboard. Common software such as "Word" and "Notepad" can be used to record card numbers, with stable performance and easy operation. Internet cafe management software can also use the recorded card numbers to extend additional management functions.

Key Features

• Reads the serial number in the RFID card and outputs it to the computer via PS/2, equivalent to automatically entering the number via keyboard
• Applies microelectronic RF receiving module and embedded microcontroller
• Combines efficient decoding algorithm and advanced data processing technology
• Decodes and outputs data of μEM4001 64-bit read-only cards and compatible RFID cards
• Can be used with common software such as "Word" and "Notepad" to record card numbers
• Internet cafe management software can use the recorded card numbers to extend additional management functions

Suitable Applications

• Internet cafes
• Identity recognition systems
• IC network card reader
• Peripheral input devices for computers

Contact 0935 498 384 for a quote.
