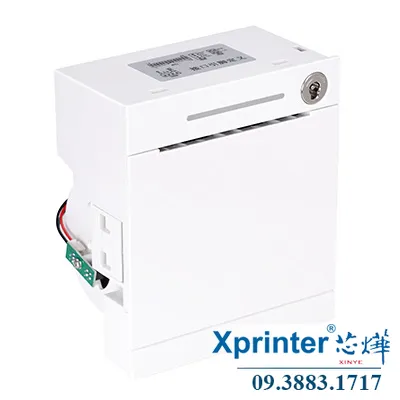

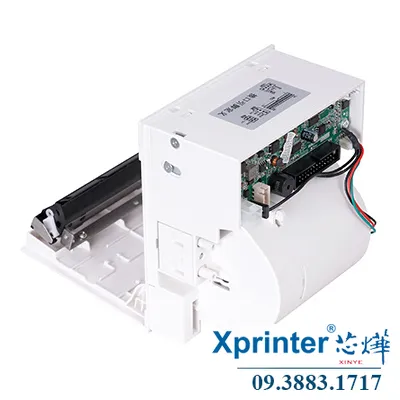

XP-MP804C Embedded Printer: 160mm/s High-Speed Printing, Auto Cutter, Multi-Language, Multi-OS

The Xprinter XP-MP804C embedded printer is a Direct Thermal Line printing device with a print width of 72mm, print speed of 160 mm/s, resolution of 203 DPI, an auto cutter rated for 1 million cuts, and USB + COM (Serial) or USB + Parallel connectivity.

Key Features

• Printing technology: Direct Thermal Line
• Print width: 72mm
• Print speed: 160 mm/s
• Resolution: 203 DPI
• Auto cutter: cutter life of 1 million cuts
• Communication (Connectivity): USB + COM (Serial), USB + Parallel
• Buffer memory: input buffer 224KB; NV Flash 256KB + 4MB; receive buffer 16KB
• Paper: 80mm × φ60mm diameter
• Line spacing: 3.75mm (line spacing adjustable by command)
• Columns: 80mm paper: Font A – 42 or 48 columns / Font B – 56 or 64 columns / Simplified and Traditional Chinese – 21 or 24 columns
• Character size: ANK characters, Font A: 12×24 mm (12×24 dots); Font B: 1.1×2.1 mm (9×17 dots); Simplified/Traditional Chinese: 3.0×3.0 mm (24×24 dots)
• Character sets: PC347 (European Standard), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canada-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvia, Arabic, PT151 (1251)
• Barcode types: UPC-A/UPC-E/JAN13 (EAN13)/JAN8 (EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
• Power supply: output DC 12V/2.6A
• Cash drawer output: DC 12V/1A
• Print head life: 100 km
• Dimensions: 131.9*114.9*81.54 mm (Length*Width*Height)
• Weight: 0.399 kg
• Environmental requirements: temperature -10 to 45℃, humidity 10% to 80%
• Storage environment: temperature -10 to 60℃, humidity 10% to 90%
• Packaging quantity: 24 units / carton

Recommended Applications

• Embedded printer / Panel Printer
• Retail POS
• Supermarkets, retail chains
• Restaurants, eateries, coffee shops
• Payment service points
