Elanda Z3 15" Windows POS Terminal Fan-Free Full Aluminum Die-Cast Foldable

· Còn hàng Bảo hành 12 tháng

Contact for quote

Liên hệ để nhận báo giá nhanh trong 30 phút

The Elanda Z3 POS terminal is a 15-inch Windows POS device designed for restaurants, retail stores, hotels, and high-density commercial environments. Its full aluminum die-cast housing, fan-free architecture, and foldable screen deliver stable operation, quiet performance, and flexible installation for modern point-of-…

Giao hàng toàn quốc

Hỗ trợ kỹ thuật 24/7

Chính hãng 100%

4 văn phòng HCM·ĐN·CT·HN

Description

The Elanda Z3 POS terminal is a 15-inch Windows POS device with a full aluminum die-cast housing, fan-free architecture, foldable screen with 0 ~ 120 degree tilt adjustment, 15" TFT LCD 1024x768 main display, 11.6" 1366x768 secondary display (optional), Intel Celeron J6412 / Intel Core i3-1215U / Intel Core i5-1235U CPU, DDR4 4GB RAM (max 32GB), and Windows 10 IoT LTSC / Windows 11 IoT LTSC / Ubuntu operating system.

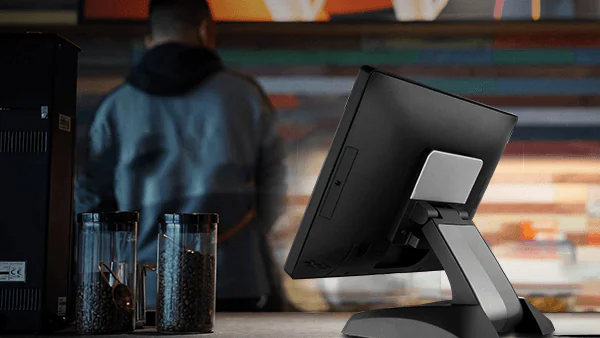

Elanda Z3 15 Windows POS Terminal Fan-Free Full Aluminum Die-Cast Foldable - image 1

Key Features

Foldable Design: adjusts to multiple angles, providing optimal viewing and comfort for both users and customers.
Fan-free design: quiet and efficient operation, no cooling fan used.
CPU options: Intel Celeron J6412 (2.0GHz, up to 2.6GHz, 1.5MB Cache, Fan-Free), Intel Core i3-1215U (10M Cache, up to 4.40 GHz, Fan-Free), Intel Core i5-1235U (12M Cache, Turbo Boost up to 4.40 GHz, Fan-Free).
Easy-Swap SSD: easy upgrade and maintenance, fast data replacement or storage upgrade.
Colorful Customized Cover: allows personalization according to brand identity.
Connectivity for Accessories: rich I/O interfaces expand connectivity from the display to accessories.
Extended Modules: Extended Modules, Second Display, Modular Design, Personality Customization, Wall Mount, Easy Swap SSD.
Display: 15" TFT LCD Panel, main display resolution 1024*768, secondary display 11.6" 1366*768.
Operating System: Windows 10 IoT LTSC, Windows 11 IoT LTSC, Ubuntu.
Memory: 1 x DDR4, SO-DIMM, 4GB (Max. 32GB).
Storage: 1x 2.5" SATA SSD 128GB (256G Optional) — J6412 version; 1 x M.2 2280 128GB (256GB/512GB Optional) — i3/i5 version.
Network: 1 x LAN (10/100/1000Mb); WIFI/BT mPCI-E WiFi 2.4-5G/BT4.2 (Optional).
Wall Mount: VESA 100 x 100mm.
Power: External Power Adapter, 12V-5A/60W (J6412 version); 12V-7A/84W (i3/i5 version).
Ports (J6412 version): 4 x USB 3.0 + 2 x USB 2.0, 3 x Serial Port (RJ50), 1 x VGA, 1 x LAN (10/100/1000Mb), 1 x Mic-In/Speaker-out (Combo Jack), 1 x RJ11 12V&24V, 1 x DC In (4PIN), 1 x Power Switch.
Ports (i3/i5 version): 4 x USB 3.0 + 2 x USB 2.0, 2 x Serial Port (RJ50), 1 x HDMI, 1 x LAN (10/100/1000Mb), 1 x Mic-In/Speaker-out (Combo Jack), 1 x DC In, 1 x Power Switch.
EMC Safety: CE/FCC/UKCA/RoHS.
Environment: Operating Temperature 0°C~40°C; Storage Temperature -15°C～70°C.
Brightness: 350 cd/cm² (Typ.).
Optional Components: Speaker, Second Display, MSR/Barcode Scanner/RFID.
Tilt Angle: 0 ~ 120 Degree.
Dimensions (L*W*H): 15" Single Screen 360 x 190 x 320 mm; 15"+11.6" Dual Screen 360 x 190 x 394 mm.
Weight N.W./G.W.: 15" Single Screen 5.2 / 7.3 Kg; 15"+11.6" Dual Screen 6.7 / 8.8 Kg.
