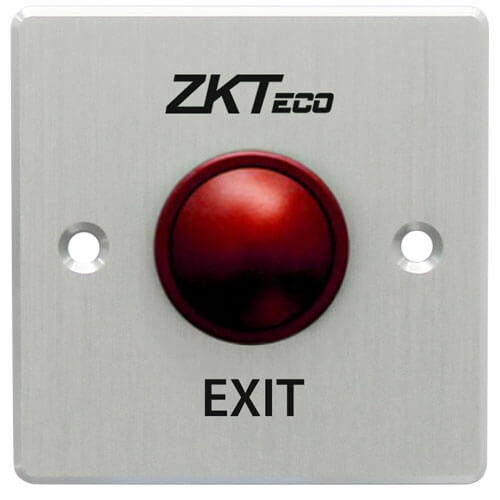

Mechanical Push Button Switch - EB104

SKU: EB104 · Còn hàng Bảo hành 12 tháng

Category: Smart Access Control, Door Control, Accessories

Contact for quote

Liên hệ để nhận báo giá nhanh trong 30 phút

Premium Mechanical Push Button Switch - EB104 for Access Control Systems The EB104 mechanical push button switch is a new mechanical push button switch with a modern design, high-quality materials, and luminous capability for easy recognition in low light conditions. The product is widely used in access control syste…

Giao hàng toàn quốc

Hỗ trợ kỹ thuật 24/7

Chính hãng 100%

4 văn phòng HCM·ĐN·CT·HN

Description

Premium Mechanical Push Button Switch - EB104 for Access Control Systems

The EB104 mechanical push button switch is a new mechanical push button switch with a modern design, high-quality materials, and luminous capability for easy recognition in low light conditions. The product is widely used in access control systems, building security, electronic door lock systems, and many other automatic control systems.

Outstanding Advantages

Prominent luminescence, easy to identify in dark or emergency environments.
Compact size, saving installation space while ensuring sturdiness and high sensitivity.
Stable pressing mechanism, long lifespan, suitable for continuous use environments.
IK10 explosion-proof standard, ensuring safety in all situations.
High cost-effectiveness, suitable for construction projects from small to large scale.

Detailed Technical Specifications

Technical Specifications	Value
Operating Voltage	DC 12V – 24V
Rated Current	5A
Operating Temperature	-20°C ~ +50°C
Storage temperature	-20°C ~ +65°C
Operating humidity	10% – 90%
Explosion protection	IK10
Voltage reduction mode	Built-in converter
Operating method	Auto-copy
Housing material	4mm thick solid aluminum
Surface treatment	Vertical brushed finish + black character printing
Dimensions (LWH)	86 x 86 x 38.5 mm
