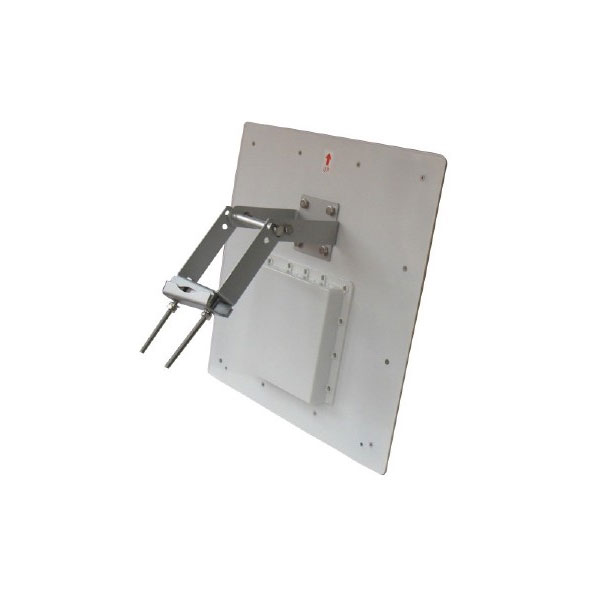

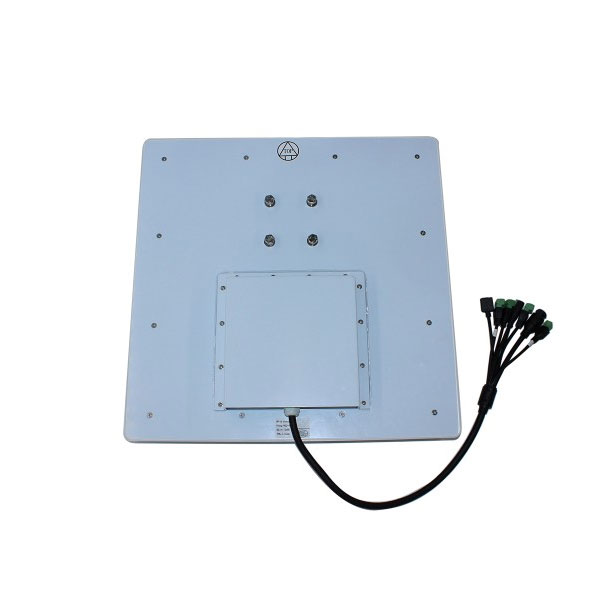

Passive RFID Tag VP-RI942

VP-RI942 Passive RFID Tag is an all-in-one UHF integrated reader with a built-in 12dBi gain antenna, supporting multiple interfaces, long reading distance, fast reading speed, high recognition capability, and easy installation. The RI942 is widely used in access control systems such as parking lot access control, smart weighing systems, etc.

Basic Technical Specifications

Operating Frequency	866-868Mhz EU, 902-928Mhz FCC, 920-925Mhz China, Other frequency bands can be customized
Protocol	ISO18000-6C (EPC Class 1 Gen2)
Working Mode	FHSS/Fixed Frequency
Antenna Gain	12dBi Linear Polarization
RF Output	10dBm~33dBm (@1dBm per step)
Reading Range	0~20m (depending on antenna and tag type)
Writing Range	0~5m (depending on antenna and tag type)
Reading Speed	300 pcs/sec
Communication Port	RJ45 (Ethernet), RS232, Wiegand26/34 (optional)
I/O Port	2-channel relay output, 1-channel opto-isolated input
Power Supply	DC 12V/3A
Material	ABS
Dimensions	445 *445 *48mm
Weight	2.7 kg
Working Temperature	-20℃~ 65℃
Storage Temperature	-30℃~ 75℃
Humidity	5%~95% (non-condensing)
Waterproof	IP65
