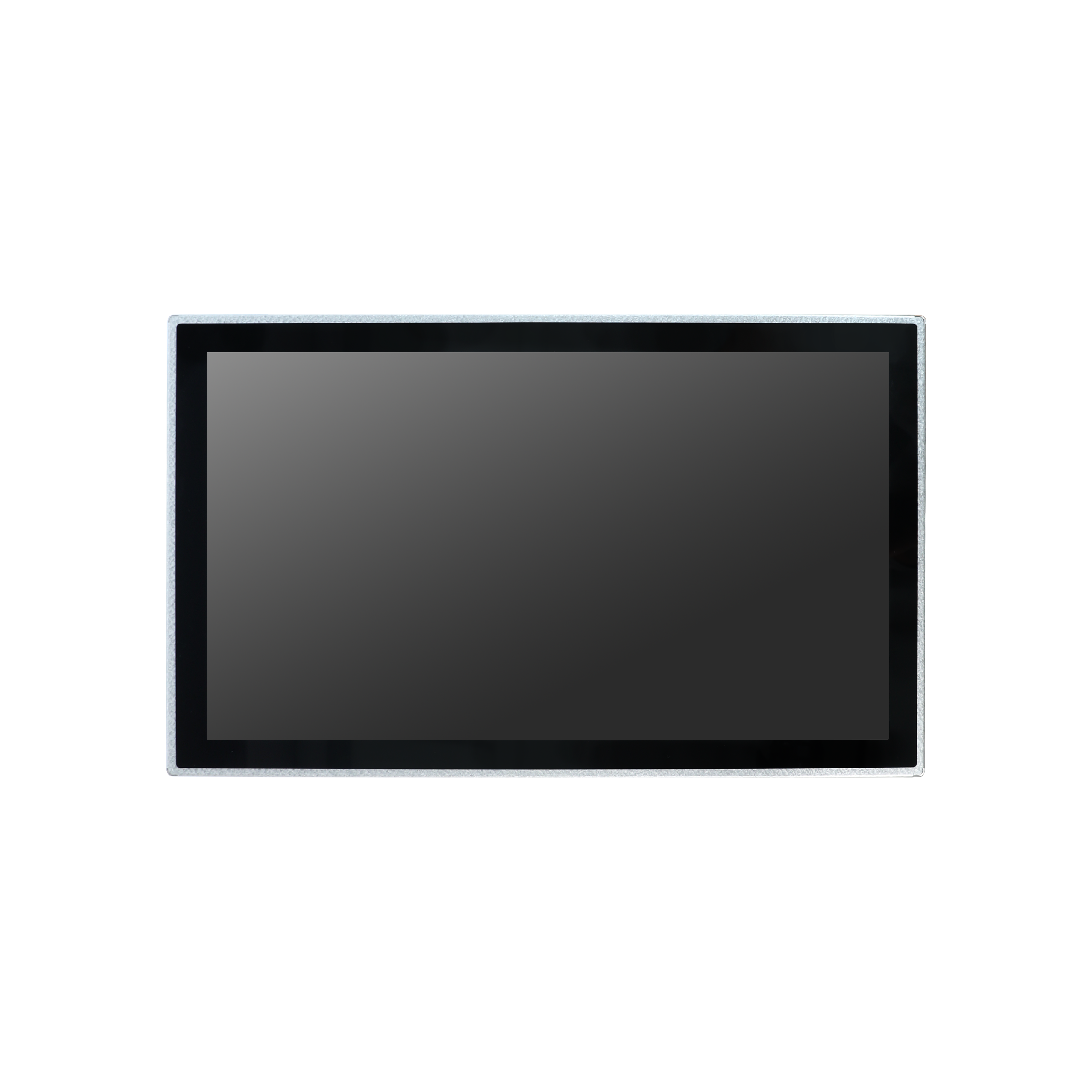

POSBANK PTC 1500 POS Control Tablet — 15-inch Panel PC

POSBANK PTC 1500 is an open frame panel PC with a 15" TFT LCD display, LED Backlight, 1024 x 768 resolution, 300 cd/m² (typ.) brightness, Projected Capacitive Touch, optional Intel Celeron J6412 / Intel Core i3-1215U / i5-1235U / i3-1315U / i5-1335U CPU, DDR4 3200 MT/s RAM up to 96GB, SATA 3 2.5-inch SSD 64GB storage.

Key Features

• 15" TFT LCD display, LED Backlight, 1024 x 768 resolution, 300 cd/m² (typ.) brightness
• Multi-touch Projected Capacitive Touch (PCAP), true flat display
• CPU options: Intel Celeron J6412 (PTC EL-1500), Intel Core i3-1215U / i5-1235U (PTC AP-1500), Intel Core i3-1315U / i5-1335U (PTC RL-1500)
• Chipset: Intel Elkhart Lake (PTC EL-1500), Intel Alder Lake-P (PTC AP-1500), Intel Raptor Lake (PTC RL-1500)
• DDR4 3200 MT/s RAM, 4GB standard, 1 x SODIMM, up to 32GB (EL) / 64GB (AP) / 96GB (RL)
• SATA 3 (6Gb/s) 2.5-inch SSD 64GB storage, AHCI support; RAID 0,1 on PTC AP-1500 and PTC RL-1500
• Operating systems: Windows 10 IoT Enterprise LTSC (PTC EL-1500), Windows 10 version 21H1 or higher (PTC AP-1500, PTC RL-1500)
• I/O ports: VGA x 1, USB 6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 x 2), Serial 6 COM ports, Cash Drawer Port (RJ-12 6 Pins) x 1 + USB 2.0 x 2, LAN Gigabit Ethernet x 1 (RJ-45), Audio Line-out x 1
• Power: DC-IN 3 Pin DIN Jack, adapter 24V 2.5A (Normal) / 24V 6.35A (Powered USB Option)
• Slim design, increased usable space, supports VESA wall mount 100 x 100 mm and 100 x 200 mm
• I/O expansion options: Gigabit Ethernet x 1 + USB 2.0 x 2, Powered USB 12V/24V, COM5 x 1 (RJ-45, Full signal) + USB 2.0 x 2, USB A 2.0 x 4 (factory option)
• Storage options: 2.5-inch SSD 128GB, HDD 500GB, 1TB M.2 2242-D2-M (SATA or NVMe)
• Peripheral options: Speaker 2 x 1W (Stereo), Bluetooth USB to WiFi Module, M.2 for WiFi/BT, Serial Conversion Cable RJ-45 to D-sub 9

Recommended Use

• Smart factory work control/monitoring PC
• Exhibition / video digital signage
• Kiosk structure
• Retail store product price checker
• Restaurant table ordering system
• Counter / wall mount POS

Contact 0935 498 384 for a quote.
