THD89 32-bit Dual-interface Smart Card CPU Card JAVA Card

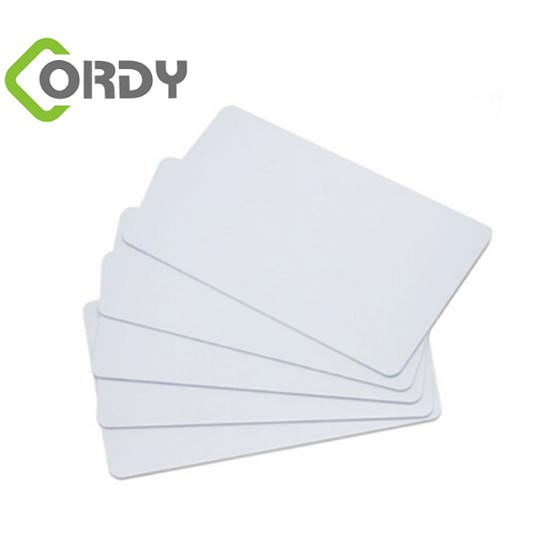

THD89 is a 32-bit dual-interface smart card CPU IC with ROM, EEPROM, and RAM memory, hardware DES, AES, and Public Key Engine (PKE). Suitable for contactless/contact card applications such as ID cards and banking cards. Compatible with the ISO/IEC 14443 Type A and ISO/IEC 7816 protocols. PVC material, dimensions 85.6*54*0.84mm, white color, THD89 chip.

Key Features

• CPU: High-performance/Low Power 32-bit CPU core, 3-stage pipeline, Little-endian, system clock frequency can be configured
• Memory EEPROM: Size up to 512KB, sector size 512Bytes, erase and program operation: sector erasing, double words programming
• Interface ISO/IEC 7816 Slave: supports T=0/T=1 protocol, 11 baud rates F/D = 11H, 12H, 13H, 18H, 91H, 92H, 93H, 94H, 95H, 96H, 97H, ISO/IEC 7816 interface DMA, 3BH and 60H are sent automatically by hardware, supports GSM power consumption standards
• Interface ISO/IEC 14443: compatible with ISO/IEC 14443 Type A, supports baud rates normal rate 106 kbit/s, enhanced rates 212 kbit/s, 424 kbit/s, 848kbits/s, supports Crypto1
• Hardware DES/TRNG/CRC/PKE helps reduce software code size and save transaction time
• Enhanced security features: Electrical Environment Detectors, Anti-SPA/DPA protections
• Development Toolkits: ULINK2 Emulator, TMC target board, Demo project and API (Application Program Interface) codes, User Manual and Application Notes

Suitable Applications

• ID cards
• Banking cards
• Contact card applications
• Contactless card applications

Contact 0935 498 384 for a quote.
