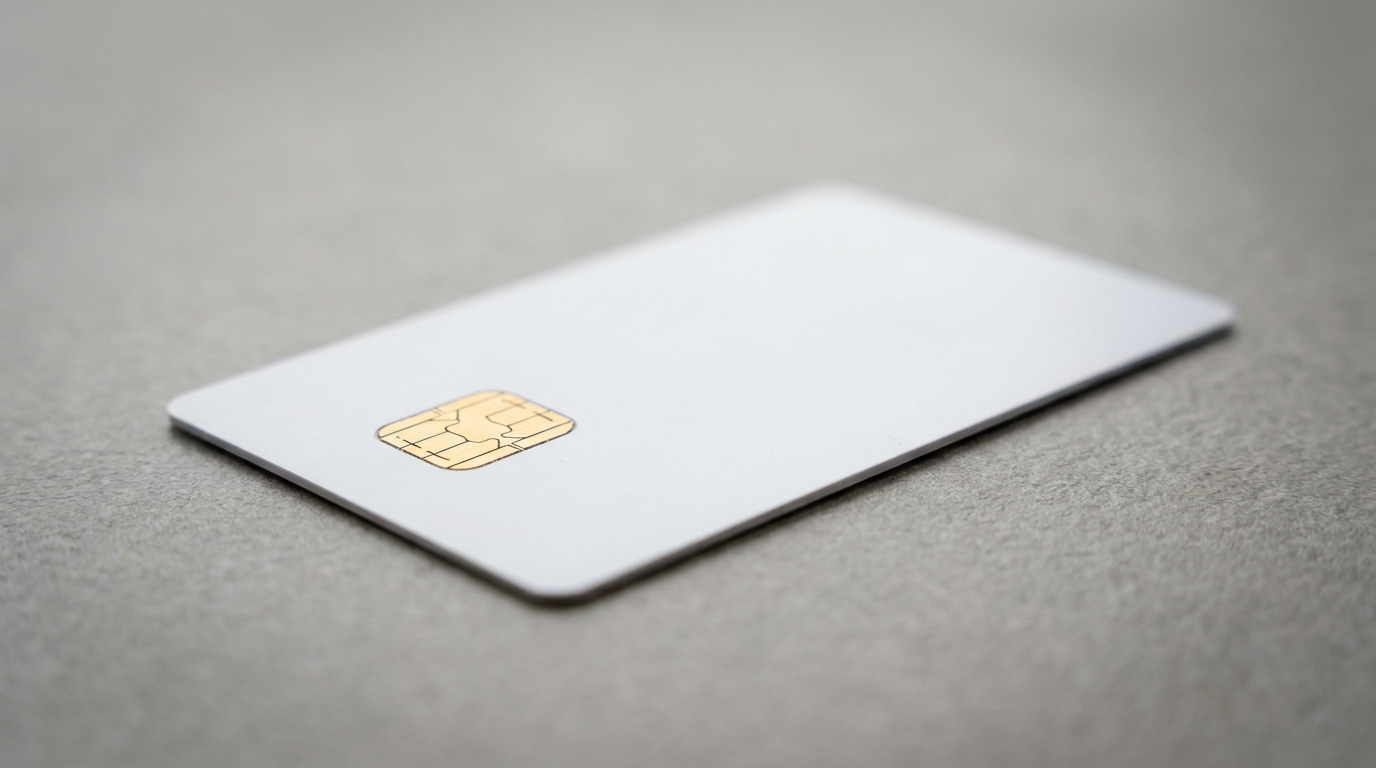

THD89-F350A Dual Interface Smart Card Java Card

THD89-F350A is a 32-bit CPU dual interface smart card chip, providing 280KB NVM space and 14.25KB RAM space, which can be configured as code and data space according to customer requirements. The product is suitable for contactless and/or contact smart card applications, such as license cards and banking cards. Material: pvc/PET, dimensions 85.6*54*0.84mm, white color, chip THD89-F350A.

Key Features

• 32-bit CPU, 280KB NVM space and 14.25KB RAM space, configurable as code and data space according to user requirements
• Compatible with ISO/IEC 14443 Type A protocol, operates with standard Type A readers
• Compatible with ISO/IEC 7816 protocol
• Provides hardware DES/TRNG/CRC/PKE, saving software code volume and transaction processing time
• Provides enhanced security features: Electrical Environment Detectors, Anti-SPA/DPA protection
• ISO/IEC 7816 Slave interface: supports T=0/T=1 protocols; supports 11 baud rates: F/D = 11H, 12H, 13H, 18H, 91H, 92H, 93H, 94H, 95H, 96H, 97H; ISO/IEC 7816 interface DMA; 3BH and 60H are sent automatically by hardware; supports GSM power consumption standards
• ISO/IEC 14443 interface: compatible with ISO/IEC 14443 Type A; supports baud rates — Normal rate: 106 kbit/s; Enhanced rates: 212 kbit/s, 424 kbit/s
• Development Toolkits: ULINK2 Emulator, TMC target board, Demo project and API codes, User Manual and Application Notes

Suitable Applications

• License cards
• Banking cards
• ID cards
• Contact smart card applications
• Contactless smart card applications

Contact 0935 498 384 for a quote.
