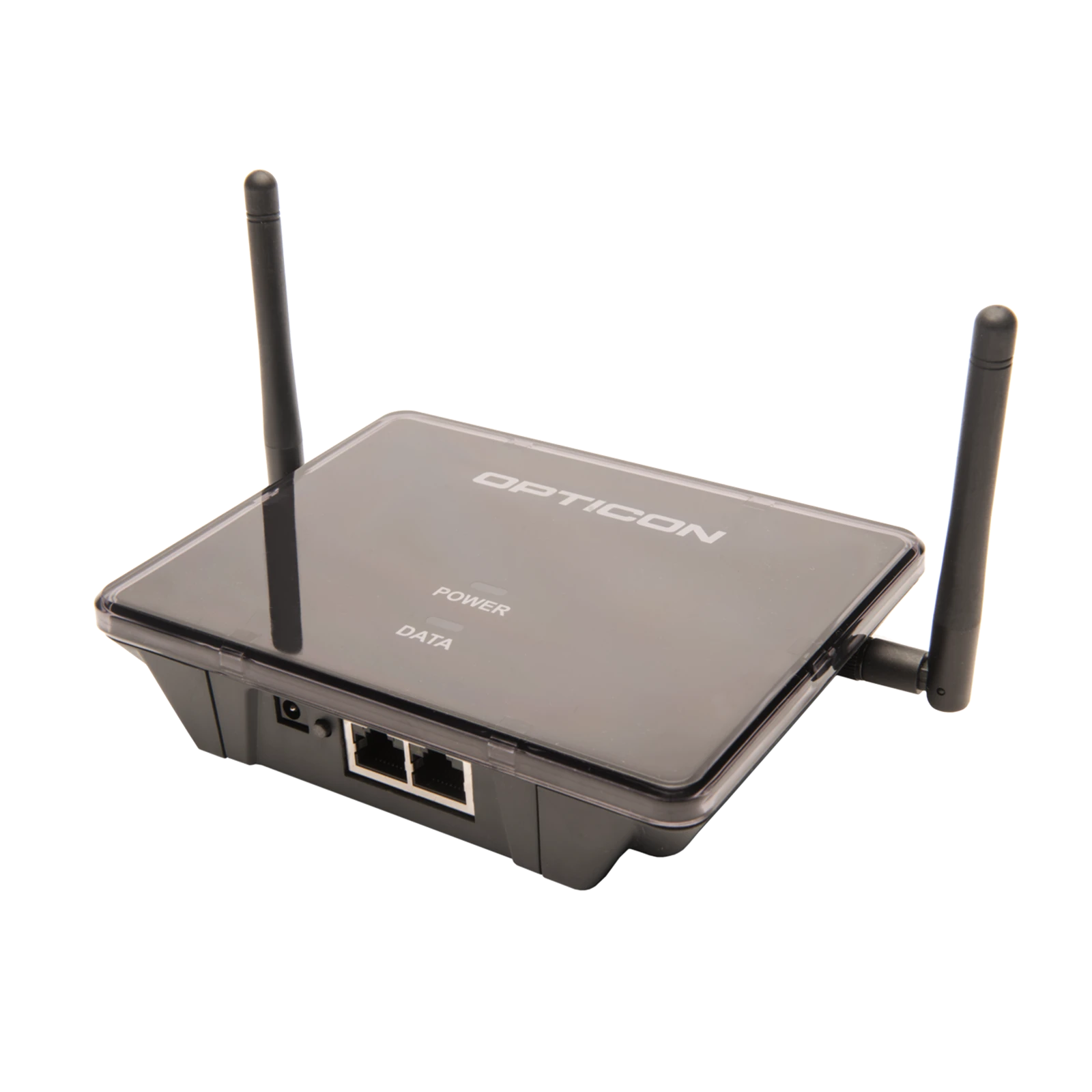

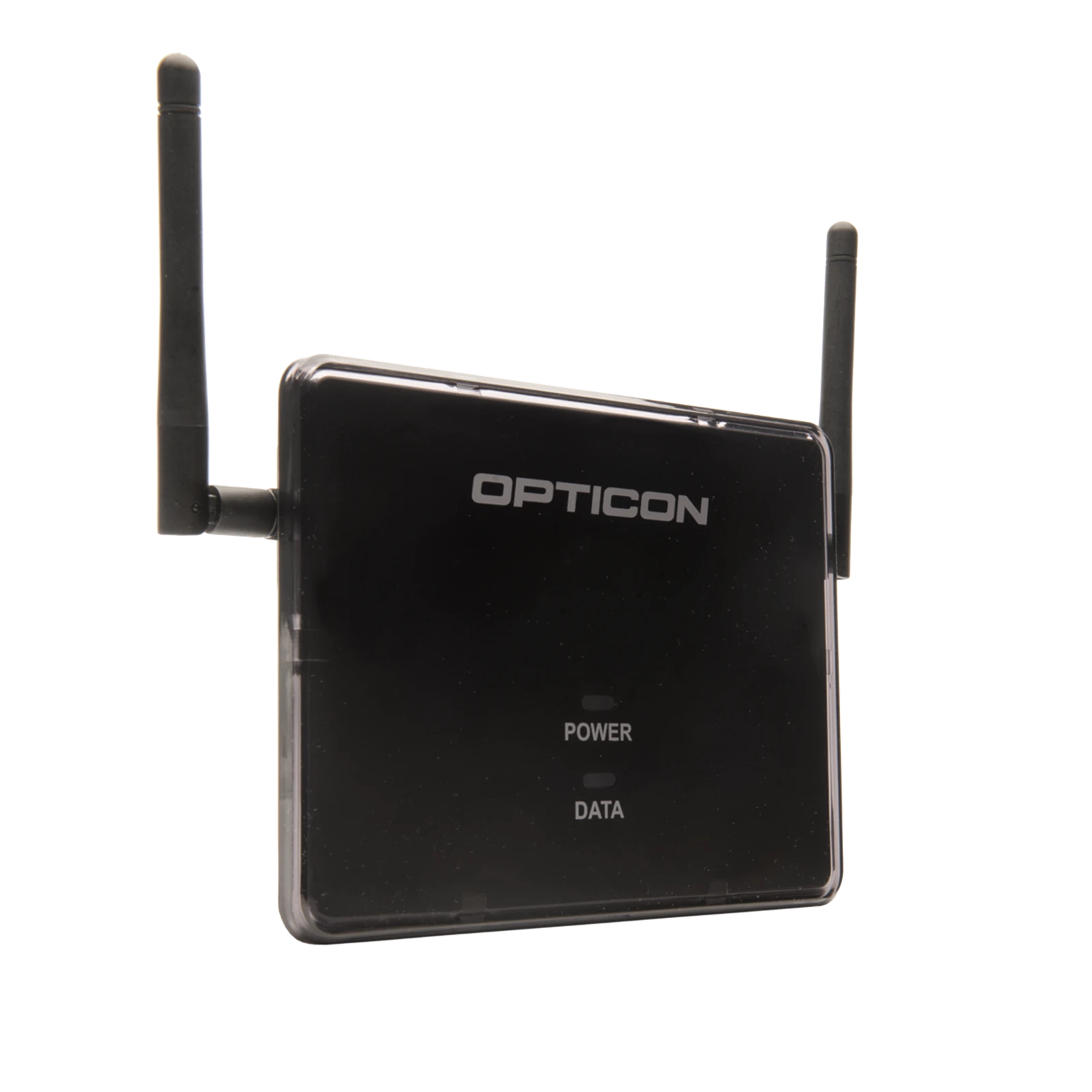

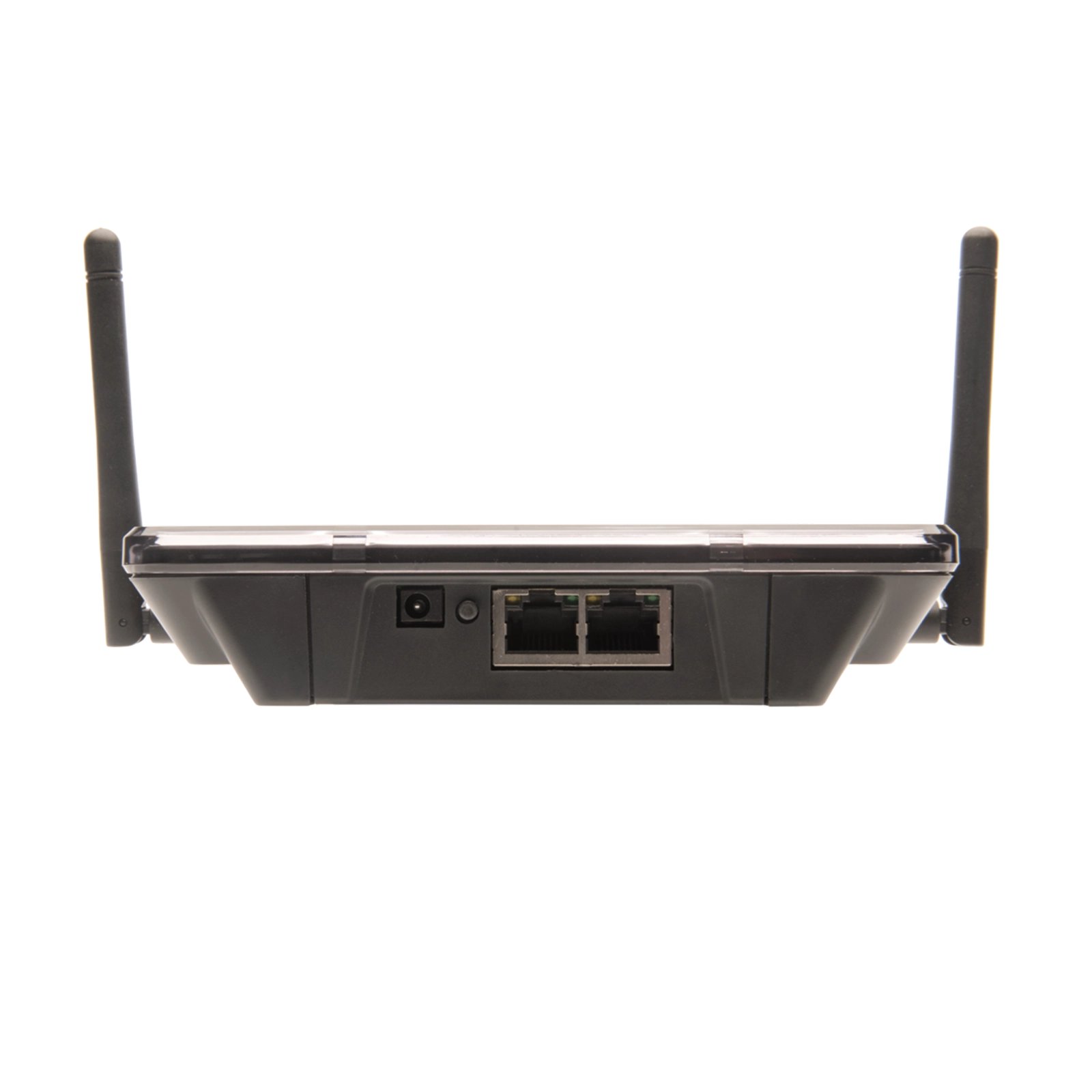

Opticon EBS-40 Electronic Shelf Label Base Station

The EBS-40 is a Base Station in Opticon's Electronic Shelf Label (ESL) system, communicating bidirectionally with e-paper tags via an 802.15.4-based protocol at 2.4 GHz frequency, two Ethernet ports, a coverage radius of 25 meters indoors (100 meters in an environment without obstacles), and managing up to 2,500 electronic labels per station.

Key Features

• Bidirectional communication with e-paper tags: sends pricing, product description, and promotion information from the management software to each electronic label; receives data from the label to check battery status or confirm update status
• Connection with ESL management software: acts as an intermediary between the ESL software system and the electronic labels, ensuring data is synchronized across the entire system
• Extended coverage for electronic labels: multiple base stations can be connected to extend coverage for large-area stores or warehouses
• Power saving: the station's communication protocols help reduce the power consumption of electronic labels
• Centralized management of all devices with full monitoring capability
• Operates with Opticon's ESL server software
• 802.15.4-based protocol, 2.4 GHz frequency, two Ethernet ports
• Each base station has a coverage radius of 25 meters indoors
• One EBS-40 base station can manage 2,500 electronic labels (ESL)

Suitable Applications

• Retail — supermarkets, convenience stores, retail chains
• Logistics — displaying product information, storage locations
• Healthcare — hospitals, clinics, laboratories
• Manufacturing — factories, production lines
• Services — hotels, restaurants, coffee shops

Contact 0935 498 384 for a quote.
