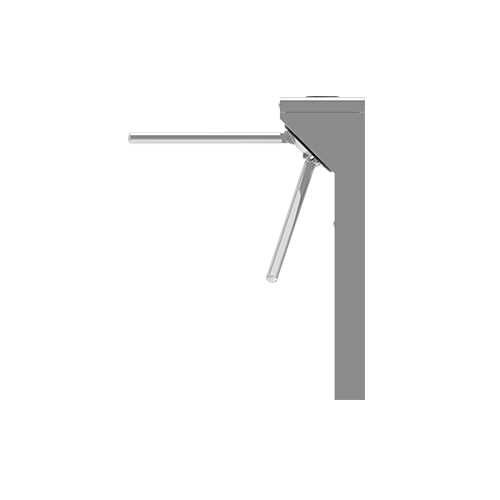

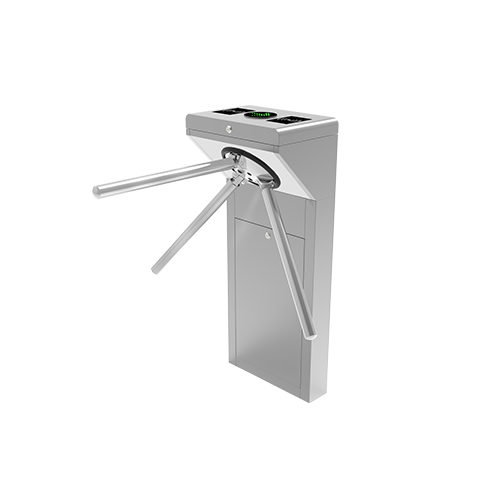

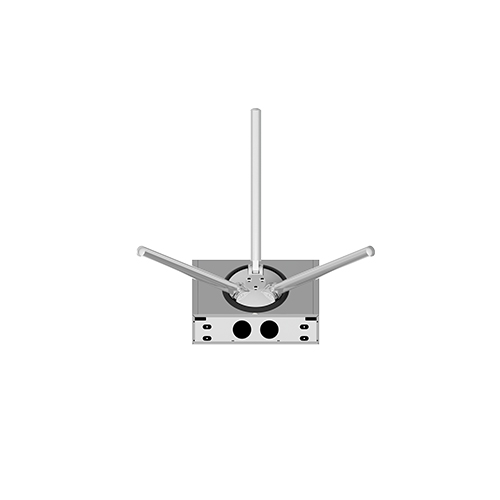

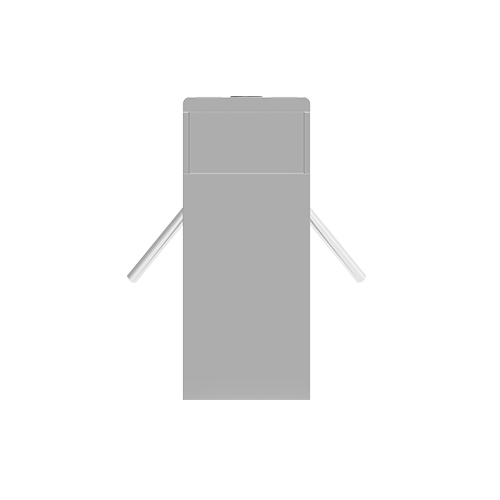

Tripod Turnstile TS1000 Plus

Tripod Turnstile TS1000 Plus ZKTeco – Modern, Compact, and Efficient Access Control Solution

In the era of digitalization and increasing security demands in modern facilities, the TS1000 Plus tripod turnstile from ZKTeco stands out as an effective, secure, and flexible access control solution. With its streamlined design, durable materials, and flexible integration of authentication methods, the TS1000 Plus is an ideal choice for various spaces such as offices, schools, factories, entertainment venues, gyms, and museums.

Streamlined Design – Space-Saving

Unlike many traditional three-arm turnstiles, the TS1000 Plus has been optimized by ZKTeco in terms of size and weight, measuring only 780 x 750 x 1000 mm and weighing 20 kg, making it easy to transport and install in areas with limited space. Its sleek design and SUS304 stainless steel casing not only make the device sturdy and corrosion-resistant but also give it a modern look, suitable for various architectural styles.

Flexible Operation – Optimizing Pedestrian Flow

The TS1000 Plus is designed with a single lane and rotating barrier, ensuring reasonable and quick control of pedestrian flow. The device supports throughput speeds:

• RFID: maximum 25 people/minute

• Fingerprint: maximum 20 people/minute

The default mode allows the barrier to operate bi-directionally, and the direction of movement can be flexibly customized according to the needs of each area. This is a strong point that helps save time and reduce congestion in high-traffic areas.

Superior Safety & Security Features

The TS1000 Plus is equipped with advanced safety features, most notably:

• Automatic barrier drop upon power failure or emergency signal, ensuring quick escape in case of an incident.

• Integrated fire alarm signal via voltage-free contact, supporting effective fire protection systems.

• Tailgating prevention helps prevent unauthorized entry, enhancing security levels.

The device operates quietly with noise levels below 65dB, suitable for areas requiring silence such as libraries, museums, and offices.

Supports Multiple Authentication Methods

The TS1000 Plus can integrate with various modern authentication devices:

• RFID readers: ProID Series, KR Series

• Fingerprint readers: FR1200, FR1500S

• QR code readers or wireless/wired remote control

These devices can be discreetly installed inside the gate body, saving space and enhancing the overall aesthetics of the system.

The TS1000 Plus is compatible with C3-200 Pro Plus and InBio260 Pro Plus access controllers, and can use advanced management software such as ZKBio CVAccess or ZKBio CVSecurity depending on the configuration.

High Quality Standards – Durable Operation

The device meets numerous international standards such as CE, FCC, UKCA, ISO 9001, and has an IPX4 protection rating, suitable for both indoor and covered outdoor environments. Stable operation with indicators:

• MCBF (mean cycles before failure): 2 million cycles

• MTTR (mean time to repair): less than 60 minutes

Supports AC 110V/220V, 50-60Hz power and DC 12V power, with power consumption of only 10VA in standby and 40VA in operation, effectively saving energy.

Diverse Applications – Easy Installation

With a combination of high performance and streamlined design, the TS1000 Plus is ideal for deployment in:

• Offices, administrative buildings

• Schools, libraries

• Museums, exhibition centers

• Factories, industrial zones

• Gyms, sports centers

• Entertainment areas, parks

TS1000 Plus is a reliable choice for modernizing access control systems, bringing professionalism, safety, and cost savings.
