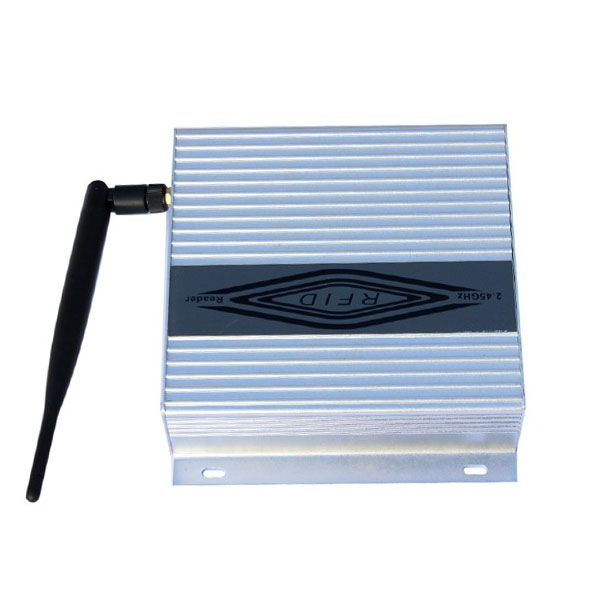

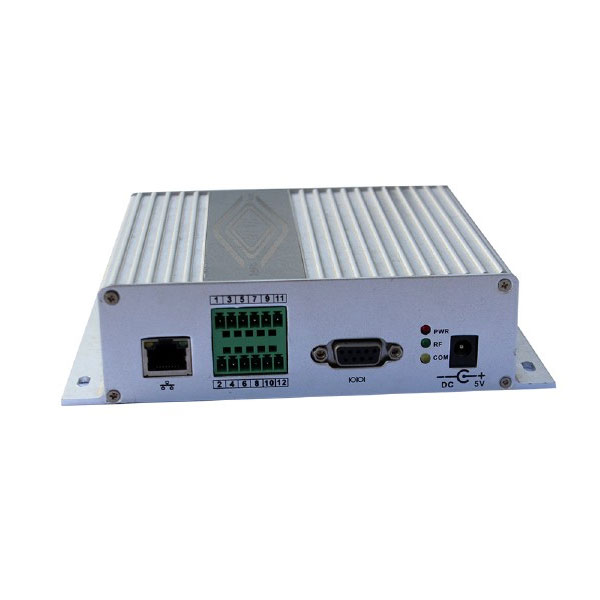

VP-RF231 Omnidirectional Active Reader

SKU: VP-RF231 · Còn hàng Bảo hành 12 tháng

Category: RFID Solutions, Active RFID Device

Contact for quote

Liên hệ để nhận báo giá nhanh trong 30 phút

The VP-RF231 Omnidirectional Active Reader is an omnidirectional reader with a wide reading range and high reading speed. The device has a reading radius of over 100m and high reliability, suitable for personnel tracking in tunnels, industrial data collection, and asset monitoring and tracking in large industrial areas…

Giao hàng toàn quốc

Hỗ trợ kỹ thuật 24/7

Chính hãng 100%

4 văn phòng HCM·ĐN·CT·HN

Description

The VP-RF231 Omnidirectional Active Reader is an omnidirectional reader with a wide reading range and high reading speed. The device has a reading radius of over 100m and high reliability, suitable for personnel tracking in tunnels, industrial data collection, and asset monitoring and tracking in large industrial areas and warehouses.

RF Specifications

Working Frequency	ISM 2.4-2.48GHz
Output Power	Max +15dBm, -2dB step, software adjustable
Receive Sensitivity	-93dBm
Antenna Port	1 SMA connector
Antenna	Default 6dBi omnidirectional, other types optional

Basic Parameters

Data Port	RS232, Ethernet
Data Port (optional)	RS485, Wiegand 26/34 (customizable)
GPIO	2-channel trigger input (optical isolation) (5V, <20mA); 2-channel relay output (30V, <1000mA)
Software Upgrade	Supports RS 232 connection update with specified software
Application Software	API in C++/C#

Card Operation

Card Protocol	Private
Reading Distance	0-150m (antenna/card type dependent)
Read speed	300 pcs/sec

Mechanical and Electrical Performance

Dimensions	168 145 42.5mm (excluding antenna)
Weight	500g
Power supply	5V/2A voltage
Power consumption	200mw standby, 400mw working mode
Working temperature	-30°C~+70°C
Storage temperature	-40°C~+80°C
Working humidity	5% ~ 95% (non-condensing)
IP rating	IP55
Installation	Ceiling or desktop
