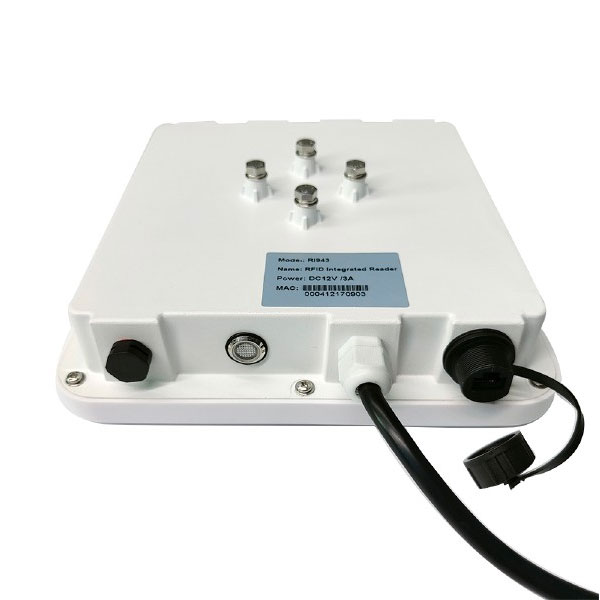

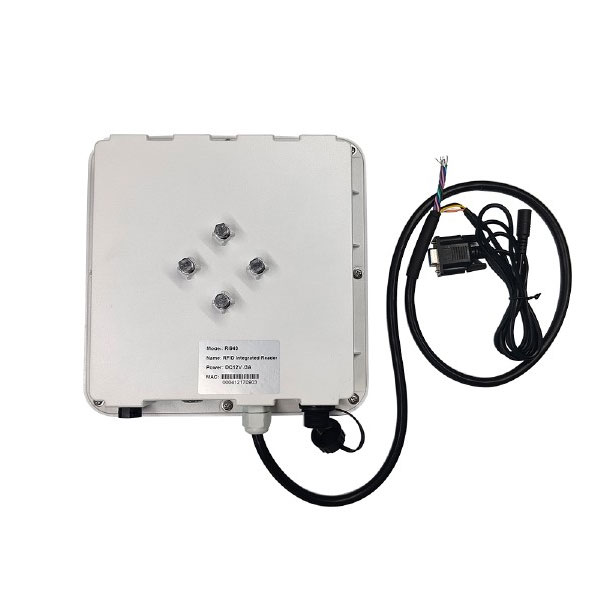

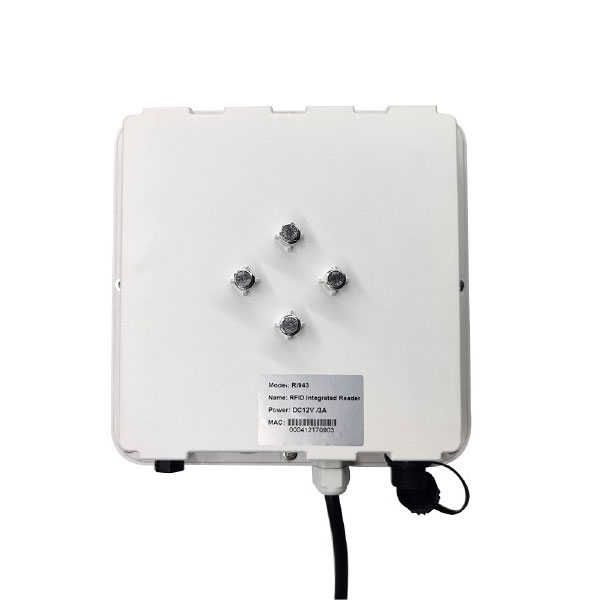

VP-RI943 Passive RFID Tag

The VP-RI943 passive RFID tag offers high-performance UHF RFID reading in harsh and rugged environments, based on the Impinj R2000 RFID chip, with a small size but a large reading distance. The reader is highly water and dust resistant, with an IP66 rating suitable for harsh environments.

Basic specifications of VP-RI943

Operating Frequency	866-868Mhz EU, 902-928Mhz FCC, 920-925Mhz China, Other frequency bands can be customized
Working Protocol	EPC C1 GEN 2 (ISO18000-6C)
Working Mode	FHSS/Fixed Frequency
RF Output Power	15dBm ~ 33dBm (@1dBm per step)
Antenna Gain	8dBi, circular polarization
Communication Interface	RJ45 (Ethernet), RS232, RS485, Wiegand26/34)
GPIO	2-channel relay output, 1-channel opto-isolated input
Reading Distance	0 ~ 12m (depends on antenna and tag)
Writing Distance	0 ~ 3m
Working Voltage	DC 12V/3A
Dimensions	228* 228* 66mm
Weight	1.5kg
Material	ABS
Operating Temperature	-40°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Humidity	5% ~ 95% (non-condensing)
Waterproof	IP66
