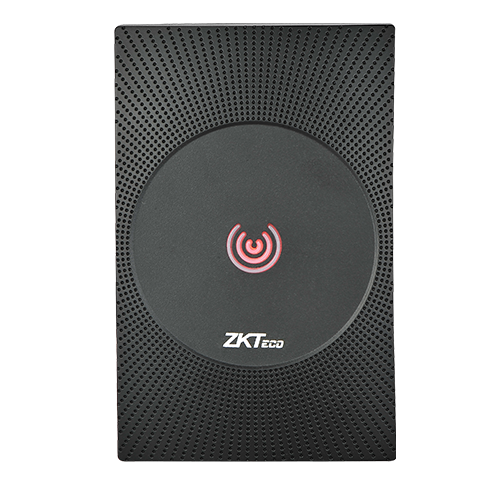

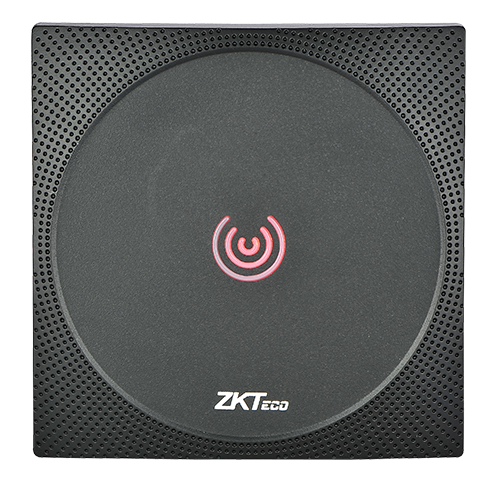

Wiegand Card Reader - KR600 Series

Wiegand Card Reader - KR600 Series – Flexible, Efficient, and Cost-Effective Access Control Solution

In modern access control systems, especially in industrial zones, office buildings, parking lots, or residential areas, the use of Wiegand card readers has become popular due to their flexibility, ease of integration, and stable performance. The KRxxx-E and KRxxx-M card reader models are ideal choices for quickly and reliably deploying RFID or IC card access systems.

1. Supports 2 Frequencies – Optimized for Diverse Needs

Wiegand card readers offer two frequency options suitable for various systems and card standards:

• KRxxx-E: Reads EM 125kHz cards – popular, low-cost cards, suitable for basic control systems, parking lots, small offices.

• KRxxx-M: Reads IC 13.56MHz cards – higher security cards, suitable for applications requiring better security and anti-counterfeiting such as banks, server rooms, special areas.

Thanks to this, Wiegand readers are easily integrated into both systems using traditional magnetic cards and modern systems requiring high security.

2. Fast Reading Speed, Stable Performance

With a reading time of only ≤ 300ms, Wiegand readers ensure fast response, minimizing congestion during peak hours or in high-traffic access areas. The reading range reaches:

• KRxxx-E: Up to 10cm

• KRxxx-M: Up to 5cm

Ideal reading distance for quick, accurate card swiping.

3. Standard Wiegand Interface – High Compatibility, Easy Integration

The reader supports Wiegand 26-bit (KRxxx-E) and Wiegand 34-bit (KRxxx-M) standards – these are common data transmission interfaces, widely supported by most access control central controllers today, such as the InBio, C3, F18 series, or third-party devices.

Thanks to the common communication standard, the device allows for easy integration into existing system infrastructure, helping businesses save time and deployment costs.

4. Durable, waterproof design, suitable for outdoor installation

The entire casing of the reader is made from high-grade ABS + PC plastic with a sturdy construction, ensuring long-term durability when used in various environmental conditions.

In addition, the reader meets the waterproof standard:

• KR600-E/M, KR601-E/M: IP65 – completely dustproof and resistant to water jets from all directions.

• KR602-E/M: IP64 – good dust protection and light water resistance.

This is an ideal choice for outdoor installation, at entrances, guard posts, yards, or areas with high humidity.

5. Visual LED and audio warning lights

The reader integrates two-color LEDs (red and green) and an audio buzzer, helping users easily identify the operating status:

• Green light: confirms successful card reading

• Red light: indicates error or invalid card

• Buzzer: warns of incorrect or invalid operation

In addition, the reader also has an input port to control external LEDs or a buzzer, increasing customization and feature expansion capabilities when needed.

6. General Specifications

7. Wide Application – Smart Control Solution

Wiegand card readers are suitable for deployment in various environments:

• Access control gates for offices, factories

• Smart parking systems

• Access control for office doors, server rooms

• Elevator systems using magnetic cards

• Apartment buildings, hotels, resorts
