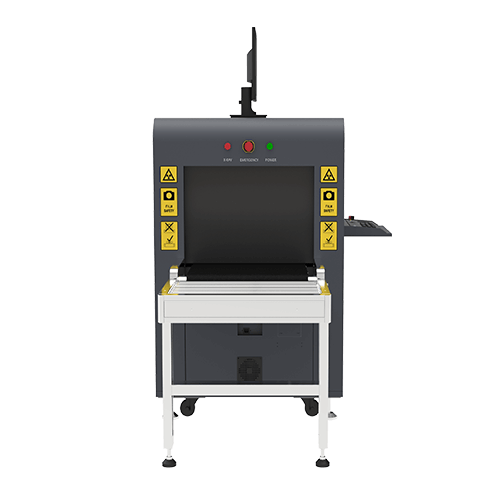

X-Ray Baggage Inspection System - ZKX6040

Dual-Energy X-Ray Baggage Inspection Device - ZKX6040 Modern, Portable, and Multi-Application

In the context of increasing security risks, ensuring safety at entry points such as airports, hotels, administrative agencies, office buildings, shopping malls, etc., is of utmost importance. Owning a modern, accurate, and flexibly deployable screening device will help organizations improve inspection efficiency and save costs. That is why the X-ray baggage inspection device - ZKX6040 is a dual-energy X-ray baggage scanner that is becoming the top choice in the mid-range security inspection machine segment.

Superior Penetration Capability – Sharp Images, Accurate Assessment

The X-ray baggage inspection device - ZKX6040 is equipped with a dual-energy X-ray system and optimized image analysis algorithms, enhancing the ability to scan and analyze objects with extremely high accuracy:

• Steel penetration capability up to 35mm, helping to detect objects hidden deep inside suitcases, backpacks, or packages.

• 38AWG wire resolution, allowing clear observation of even tiny details or dangerous objects with non-characteristic shapes.

• Distinguishes organic, inorganic, and mixed substances based on atomic number, helping to detect explosives, drugs, lithium batteries, dangerous weapons, or flammable substances.

Advanced image processing technology with a 21” LED screen with accurate colors helps operators easily observe, zoom in on images, enhance contrast, and identify suspicious objects in just a few seconds.

Equipped with Smart Software – Efficient Operation, Secure Data

The X-ray baggage inspection device - ZKX6040 helps:

• Manage users, store inspection history.

• Automatically stores up to 200,000 scanned images, supporting quick retrieval and reporting.

• High-density alarm, hazardous object identification based on database.

• Integrated RJ45 (TCP/IP) and 4 USB ports, easy to expand or synchronize with other surveillance systems.

In addition, the machine operates with an Intel® Braswell SoC N3160 (Quad-Core 2.24GHz) processor combined with 4GB RAM and a 1TB hard drive, ensuring smooth processing without lag even in high-frequency operating environments.

Compact Design, Portable and Flexible Deployment

One of the outstanding strengths of the X-ray baggage inspection device - ZKX6040 is its compact and convenient design, making it easy to place in any location without taking up much space:

• Overall dimensions of only 1701 x 910 x 1305 mm, suitable for installation in corridors, waiting areas, access control points…

• Conveyor height of 680mm, making baggage placement/retrieval quick and safe for users.

• Foldable keyboard – ergonomic design saves space and is convenient for transportation.

• Weight of only 380kg, easily moved by specialized trolleys in areas with limited space.

Outstanding Technical Specifications

Diverse Applications – Comprehensive Protection Solutions

The X-ray baggage inspection system - ZKX6040 is designed to operate stably in various environmental conditions:

• Operating temperature from -10°C to +45°C

• Humidity 5-95% (non-condensing)

• Extremely low radiation leakage rate (≤0.1μGy/h) – ensuring absolute safety for users and the surrounding area

The device is suitable for installation at:
Airports – bus stations – train stations
Hotels – office buildings
Government agencies – administrative centers
Supermarkets – shopping malls – logistics warehouses

Viet Pos – Reputable Genuine X-ray Inspection Machine Supplier

At Viet Pos, we provide the genuine X-ray baggage inspection system - ZKX6040, with clear warranty and on-site technical support nationwide.

Genuine products – full CO, CQ
Fast delivery – complete installation
Operation support – user training
