Barcode Scanner OPI-3301i -1D-Bluetooth

OPI-3301i -1D-Bluetooth Barcode Scanner is a compact handheld CCD scanner that uses Bluetooth to communicate with other devices. This wireless device is equipped with a powerful scanning engine that can scan at high speeds under various conditions. To enhance barcode scanning capabilities, the OPR3301 can read scratched or improperly printed barcodes, and it can also read high-resolution codes. The product is distributed by VietPos nationwide. Contact hotline: 0905 295 337 for quick consultation and quotation.

I. Technical Specifications

Brand	Opticon
Model	OPI-3301i
Memory	SDRAM: 1MB Flash ROM: 1MB
Operating Indicator	Visual: 1 large LED (red/green/blue) Non-visual: buzzer
Operating Key	1 scan key
Connectivity	Bluetooth: Ver. 2.1, SPP/HID, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption
Battery	Lithium-ion 3.7V 1100mAh
Operating Time	72 hours with wireless connection
Battery Charging Time	3 hours
Light Source	Aiming laser diode, illumination LEDs
Scanning Method	CMOS area sensor, 752 x 480 pixels, gray scale
Scan Speed	60 fps
Barcodes	Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN -ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D code: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, Passport MRZ (OCR-B), PDF417, QR code
Dimensions (W x H x D)	56 x 135 x 113 mm / 2.20 x 5.32 x 4.45 in
Weight	132 g / 4.5 oz

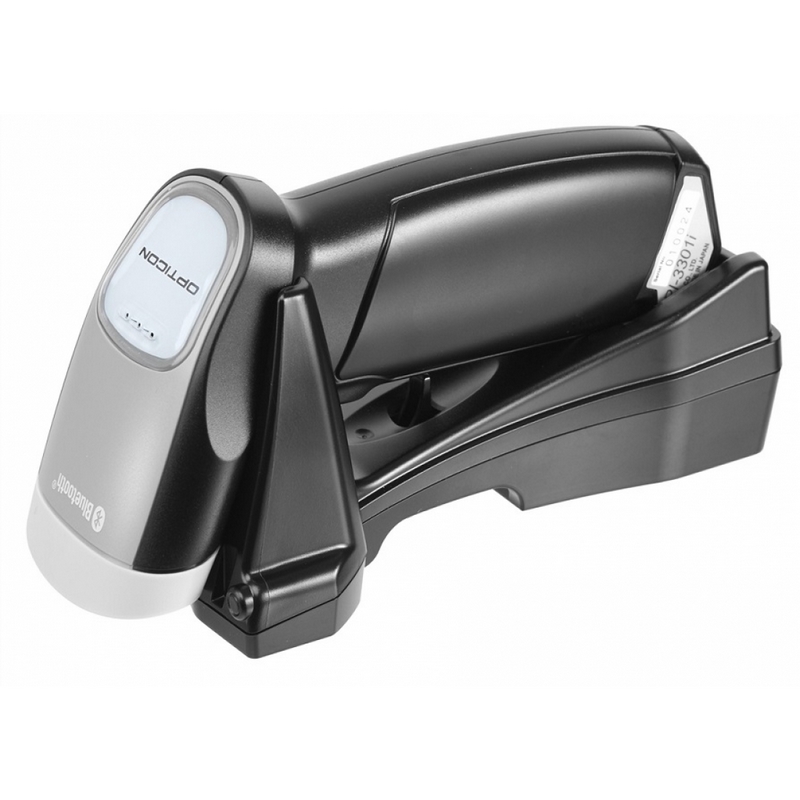

II. Actual Images

III. Technical Features

- The OPC-3301i is highly mobile due to its wireless Bluetooth connection, allowing instant data transmission via Bluetooth through the charging cradle. - Scanned data will be stored directly on the OPC-3301i device if it is out of Bluetooth range. This feature prevents data loss during real-time operation.

IV. Application Model

The OPI-3301i -1D-Bluetooth Barcode Scanner, with its affordable price and modern features, is widely used in models such as: – Retail counters – Inventory management – Mobile sales – Delivery and warranty services – Logistics
