Elevator Controller - EC16 & DEX16

Elevator Controller - EC16 & DEX16 – Smart Elevator Control Solution

EC16 is the second-generation elevator controller developed by ZKTeco, enhancing security control in high-rise buildings, complexes, offices, and hotels. Combined with DEX16 – the floor expansion board, this system provides control for up to 128 floors on a single system.

Outstanding Features

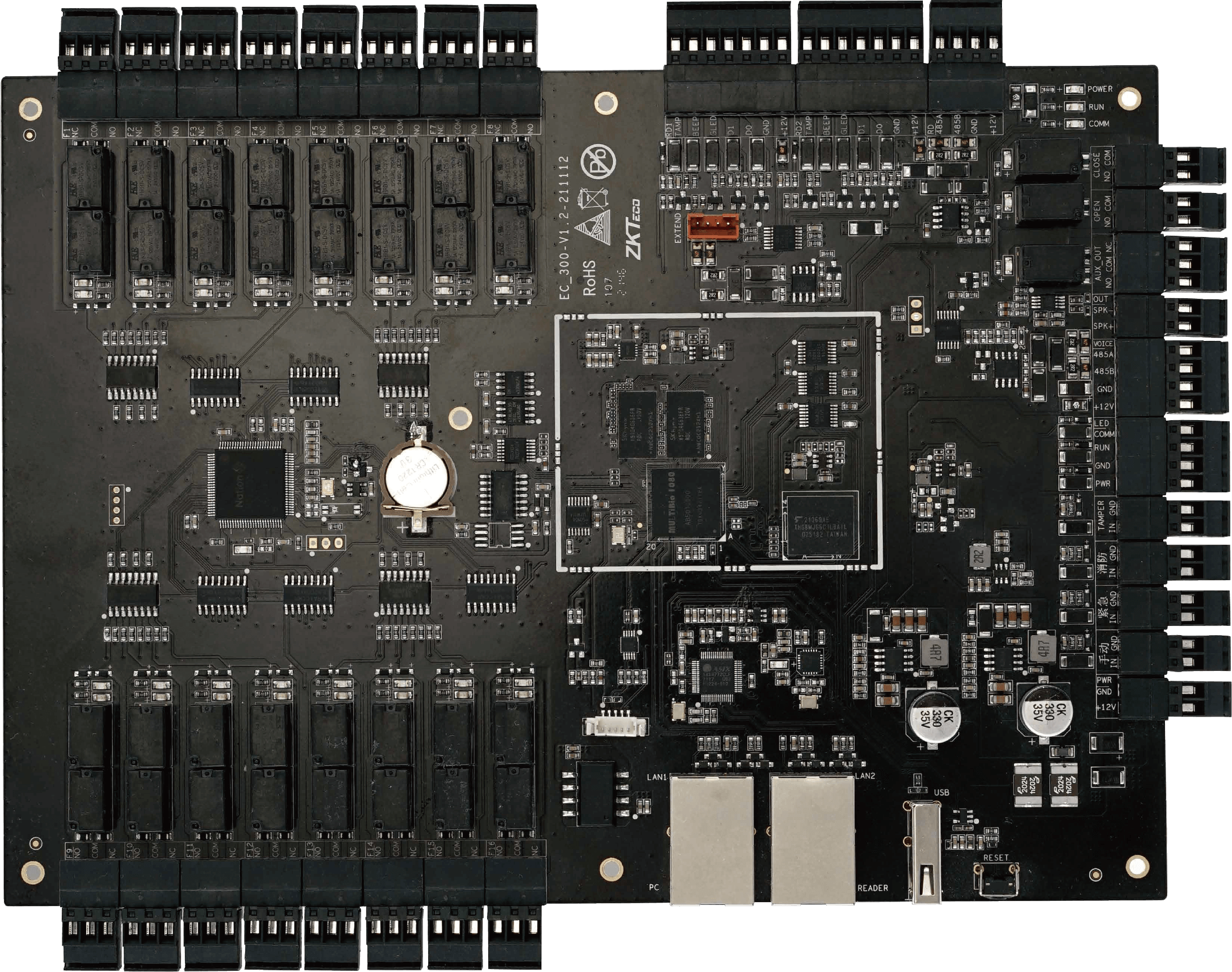

EC16 – Central Control Panel:

• Diverse authentication: Supports fingerprints, RFID cards, dynamic QR codes, facial recognition.

• Large capacity: Stores up to 30,000 fingerprints, 100,000 cards, 200,000 transactions.

• Smart control: Automatic floor call after authentication – users don't need to press buttons.

• Permission schedule: Assigns floors by time, limits floors by user group.

• Strong connectivity: Supports TCP/IP, RS485 (OSDP), Wiegand, USB Host.

• High security features: Data encryption with AES256, HTTPS, TLS1.2.

DEX16 – Expansion Board:

• Flexible expansion: Each EC16 can connect to up to 7 DEX16 to control up to 128 floors.

• Connects via RS485: Ensures high stability and easy installation in practice.

• 16-floor dual relay: Allows precise control of each floor without command delay.

Technical Specifications

EC16

• Power supply: DC 12V 3A

• Floor control relay: 16 dual relays

• Connection ports:

  • 2 TCP/IP

  • 2 Wiegand (26/34/66bit)

  • 2 RS485 (device & expansion)

  • 1 USB 2.0

  • 1 AUX IN / 1 AUX OUT

  • 1 fire input, 1 emergency input

  • 1 voice output (coming soon), 1 status LED

• Operating temperature: -20°C ~ 55°C

• Dimensions: 165mm x 230mm

DEX16

• Power supply: DC 12V 1A

• Floor control relay: 16 dual relays

• Connection: RS485 (OSDP)

• Dimensions: 165mm x 160mm

• Operating temperature: -20°C ~ 55°C

Security features & certifications

• Data encryption: AES256

• Connection security standard: TLS1.2, HTTPS

• International certifications: CE, FCC, ISO9001, ISO14001

Compatibility

• Management software: ZKBio CVSecurity (ZKTeco's comprehensive security platform)

• Compatible devices: ZKTeco time attendance machines (F18, Horus, C2-260...), QR500/QR600 readers, facial recognition readers, card readers, fingerprint readers.

Practical applications

• High-rise office buildings

• Hotels, resorts

• Apartments, smart homes

• Hospitals, administrative centers

• Industrial zones, factories
