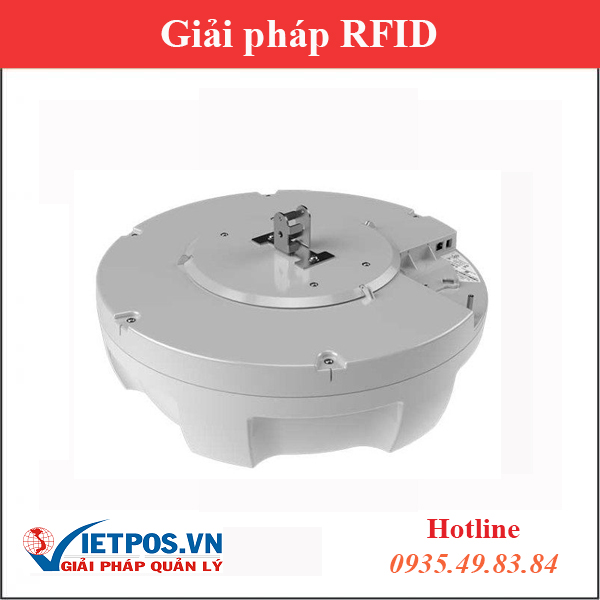

Fix RFID Reader ATR7000 RTLS

Dimensions	19.0 inches (482.6 mm) diameter, 6.34 inches (161 mm) height
Weight	11.1 lbs (5.03 kg)
Visual Status Indicators	Multi-color LEDs (Power, Status)
Antenna	Adjustable phased array
Air Interface Protocol	EPCglobal UHF RFID Class 1 Gen2 / ISO 18000-63
Maximum Receive Sensitivity	- 88 dBm
Beam Scan Range	Azimuth 0-360°, Elevation 0-60°
Frequency (UHF Band)	902-928 Mhz (USA and Canada)
Network Connectivity	10/100 BaseT Ethernet (RJ45)
General Purpose I/O	Reserved, two (2) inputs, three (3) outputs (Opto-isolated)
Operating Temperature	-4° F to +131° F / -20° C to +55° C
Storage Temperature	-40° F to +158° F / -40° C to +70° C
Humidity	5-95% non-condensing
Sealing	IEC IP51
ESD	± 15 KVdc air discharge; ± 8 KVdc direct/indirect discharge
Vibration	MIL STD 810F, 0.04g2/Hz, Random (20 Hz to 2 kHz), 6G rms.
Operating System	Linux
Standard API Support	.Net, C and Java EMDK Host Applications
Management Protocols	RM1.01 (with XML over HTTP/HTTPS and SNMP binding); RDMP specification in ISO 24791-3
Firmware Upgrade	Remote and web-based firmware upgrade capability
Network Services	DHCP, HTTPS, FTPS, SFTP, SCP, SSH, HTTP, FTP, SNMP and NTP
Network Stack	IPv4, IPv6
Security	Transport Layer Security Ver. 1.2, FIPS 140-2 Level 1
Host Interface Protocol	LLRP v1.0.1

Product Advantages

- Electronically steers and simultaneously processes hundreds of narrow torch-like beams, providing highly accurate asset location, within 2 ft./0.6m or less.
- Wide-angle antenna provides twice the coverage of typical competitive fixed readers. And dual and circular coverage patterns ensure all tags in the coverage area are visible, regardless of the size or complexity of your environment.
- This ready-to-use licensable software saves months of application development time by automatically collecting ATR7000 tag data, calculating the real-time location of all your tagged assets, and streaming that precise location data to the business system of your choice - such as your Warehouse Management System (WMS).
