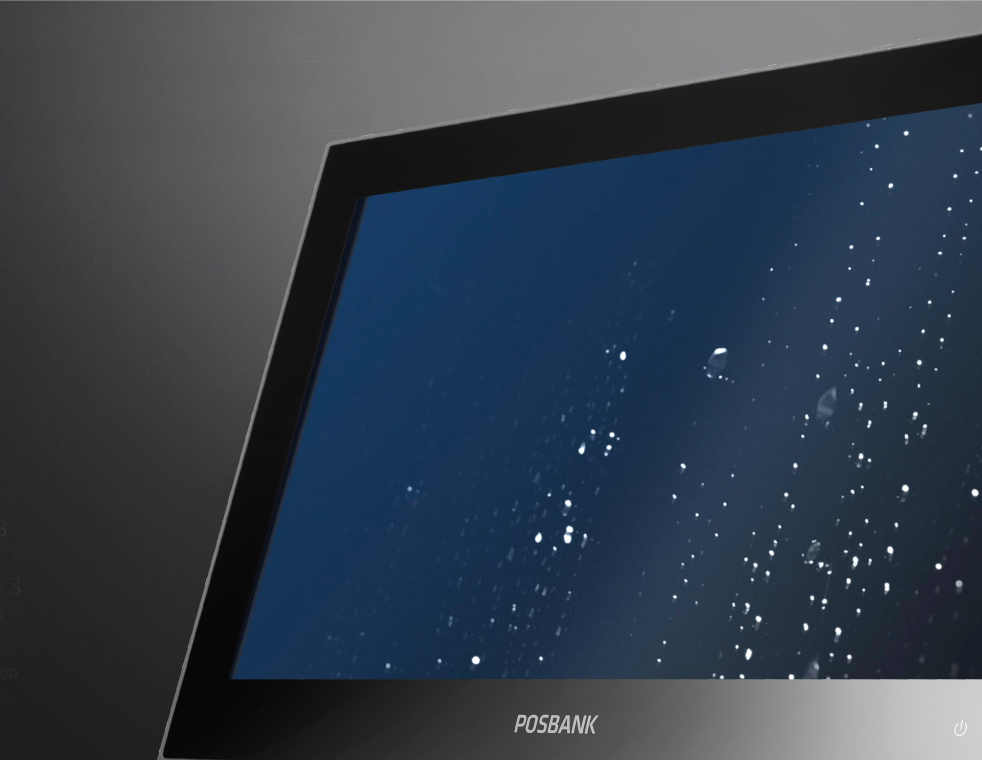

POSBANK APEXA 1560FH POS Terminal 15.6" Full HD, 13th Gen Intel

The POSBANK APEXA 1560FH is a POS terminal featuring a 15.6" TFT LCD LED Backlight display, 1920 x 1080 resolution, 400 cd/m² brightness (typ.), Projected Capacitive Touch (PCAP), and a true-flat bezel-free design. Supports Intel Core i3-1315U / i5-1335U / i3-1215U / i5-1235U, Intel Processor N95 / N97, and RK3399. Memory is 4GB DDR4 3200 MT/s, storage is SATA 3 (6GB/s) 2.5-inch SSD 64GB, with AHCI and RAID 0/1 support. Ports: 1 x VGA, 4 x USB, 4 x Serial, 1 x RJ-12 Cash Drawer, 1 x Gigabit Ethernet, 1 x Line-out.

Key Features

• 15.6" TFT LCD LED Backlight display, 1920 x 1080 resolution, 400 cd/m² brightness (typ.)
• Projected Capacitive Touch (PCAP), true-flat bezel-free design
• Supports Intel Core i3-1315U (10M Cache, up to 4.50 GHz), i5-1335U (12M Cache, up to 4.60 GHz), i3-1215U (10M Cache, up to 4.40 GHz), i5-1235U (12M Cache, up to 4.40 GHz), Intel Processor N97 (6M Cache, up to 3.60 GHz), N95 (6M Cache, up to 3.60 GHz)
• Supports RK3399 Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
• Memory 4GB DDR4 3200 MT/s (Socket 1 x SODIMM), storage SATA 3 (6GB/s) 2.5-inch SSD 64GB, with AHCI support
• RAID 0,1 (APEXA RL-1560FH, APEXA AP-1560FH)
• Operating systems: Windows 10 IoT Enterprise LTSC Ver. 21H2 or higher, Windows 11 IoT Enterprise LTSC Ver. 24H2 or higher, Android 9.0/12
• I/O: 1 x VGA (With Power Output), 4 x USB (2 x USB 3.0, 2 x USB 2.0), 4 x Serial (COM 1 with 5V/12V Power Output on 9 Pins, BIOS COM2~3 RJ-45 Full Signal, COM4 RJ-12 Only Tx/Rx 12V Power Output Reserved for CDP, COM6 RJ-45 Only Tx/Rx 5V Power Output Reserved for MSR), 1 x RJ-12 Cash Drawer (Integrated circuit GPIO), 1 x Gigabit Ethernet (RJ-45), 1 x Line-out
• Power supply: 24V, 2.5A (DIN 3 Pin Jack, Normal) or 24V, 6.35A (Powered USB Option)
• Spill and dust resistance: venting technology prevents spills and dust from reaching the display and internal components
• Flexible installation: VESA 75 x 75 mm and 100 x 100 mm, countertop or wall mount
• I/O panel on the top edge of the terminal allows quick access to ports and storage
• Peripheral options: 2nd Display 9.7" 1024 x 768, 2nd Display 15" 1024 x 768, VFD 2 Lines x 20 Columns, Magnetic Stripe Reader (ISO 7811, 1/2/3 Track), Smart Card Reader EMV Level 1, Dallas i-button Reader, Fingerprint, Wall Mount Kit VESA 75 x 75 mm / 100 x 100 mm, Serial Conversion Cable RJ-45 to D-sub 9, Speaker 2 x 1W (Stereo) (Factory Option), WiFi M.2 for Wi-Fi/BT (Factory option)
• I/O Expansion (Factory option): Option 1 — 1 x Gigabit Ethernet (RJ-45) + 2 x USB 2.0; Option 2 — 1 x 12V Powered USB 2.0 + 1 x 24V Powered USB 2.0; Option 3 — 1 x 12V Powered USB 2.0 + 1 x 12V Powered USB 2.0; Option 4 — 1 x 24V Powered USB 2.0 + 1 x 24V Powered USB 2.0; Option 5 — 1 x 12V Powered USB 2.0 + 2 x USB 2.0; Option 6 — 1 x 24V Powered USB 2.0 + 2 x USB 2.0; Option 7 — 1 x COM5 (RJ-45, Full signal) + 2 x USB 2.0; Option 8 — 4 x USB 2.0
• Certifications CE, FCC, KC. Colors Dark Grey / High Gloss White

Recommended Use

• Retail POS
• Restaurant / hospitality
• Cashier counter
• Countertop or wall mount installation

Contact 0935 498 384 for a quote.
