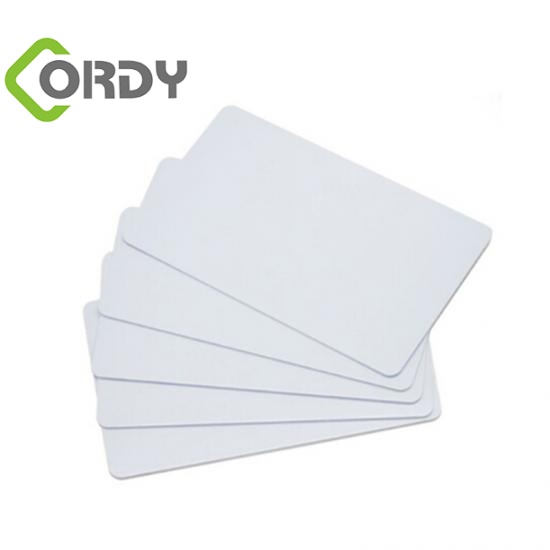

PVC Card 13.56MHz MIFARE Classic EV1 1K

Printed PVC card 13.56MHz MIFARE Classic EV1 1K uses NXP Semiconductors IC MF1S50yyX/V1 per ISO/IEC 14443 Type A, 1 kB memory (16 sectors × 4 blocks × 16 bytes), operating frequency 13.56 MHz, data transfer rate 106 kbit/s, operating distance up to 100 mm, dimensions 85.6x54x0.88 mm, PVC material.

Key Features

• Contactless transmission of data and energy supply
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• Anticollision
• Typical ticketing transaction time of < 100 ms (including backup management)
• 7 Byte UID or 4 Byte NUID
• Random ID support (7 Byte UID version)
• NXP Originality Check support
• EEPROM 1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
• User definable access conditions for each memory block
• Data retention time of 10 years
• Write endurance 200,000 cycles

Recommended Applications

• Public transportation
• Access management
• Electronic toll collection
• Car parking
• School and campus cards
• Employee cards
• Internet cafés
• Loyalty

Contact 0935 498 384 for a quote.
