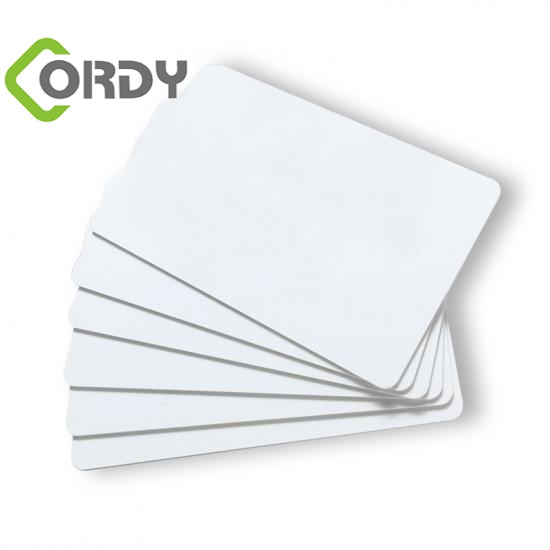

White MIFARE Classic EV1 1K Contactless RFID Card for Access Control

The white MIFARE Classic EV1 1K Contactless RFID card uses PVC/PET material, blank white, dimensions 85.6x54x0.88mm, frequency 13.56MHz, MIFARE Classic EV1 1K chip (NXP MF1S50yyX/V1), ISO/IEC 14443 Type A standard, 1 kB memory (16 sectors x 4 blocks).

Key Features

• Contactless data transmission and power supply
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency 13.56 MHz
• Data transfer 106 kbit/s
• Data integrity 16-bit CRC, parity, bit coding, bit counting
• Anticollision
• Typical ticketing transaction time < 100 ms (including backup management)
• UID 7 Byte or NUID 4 Byte
• Supports Random ID (7 Byte UID version)
• Supports NXP Originality Check
• EEPROM 1 kB, organized into 16 sectors x 4 blocks (each block 16 bytes)
• User definable access conditions for each memory block
• Data retention time 10 years
• Write endurance 200000 cycles

Recommended Applications

• Access control
• Patrol systems
• Time attendance
• Enterprise management
• Public transport
• Electronic toll collection
• Parking lots
• School cards
• Employee cards
• Internet café
• Loyalty

Contact 0935 498 384 for a quote.
