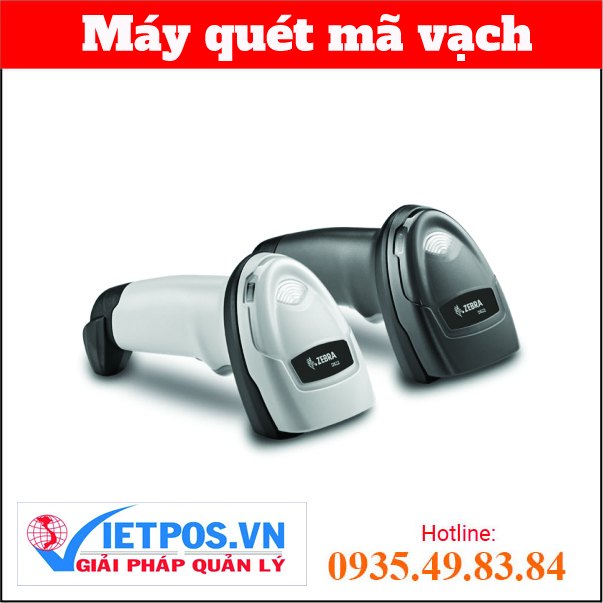

Zebra (Symbol) DS2208 Barcode Scanner

I. Product Description of Zebra (Symbol) DS2208 Barcode Reader

The Zebra (Symbol) DS2208 barcode reader is one of the best-selling 1D and 2D barcode scanning devices from the Zebra brand. It has a compact appearance but integrates the features of a professional barcode scanning device: - Compact and durable design, comfortable grip - Wide reading range, can scan dense barcodes - Fast, accurate scanning - Very easy to use, just connect the scanner to the computer and it's ready to operate. - Multi-faceted connectivity including cable and keyboard support with 97 languages. The Zebra LS2208 barcode scanner is globally certified for its superior scanning capabilities, perfectly meeting the payment needs at hotel, supermarket, and store checkout counters. Contact VIET POS immediately at hotline: 0905 295 337 for free consultation.

https://www.zebra.com/content/dam/zebra_new_ia/en-us/solutions-verticals/product/barcode-scanners/Handheld%20Scanners/zebra-ds2200-series/videos/retail-all-audiences/ds2200-retail-web-optimized-video.m4v

II. Actual Images

III. Technical Specifications of Zebra (Symbol) DS2208 Barcode Reader

Corded	Yes
Dimensions	6 in. H x 2.5 in. W x 3.34 in. D 15.2 cm H x 6.3 cm W x 8.4 cm
Voltage and Current	5 volts +/- 10% at 130 mA typical, 175 mA max
Color	Twilight Black, Cash Register White
Weight	5.15 oz./146 g
Handheld	Yes
Power Source	Host power or external power supply; depending on host type
Corded	Yes

Performance Characteristics

Supported Interfaces	IBM, Keyboard Wedge, RS-232, Synapse, USB, Wand
Pitch (Skew)	3 +/-60 degrees
Roll (Tilt)	1 +/-30 degrees
Depth of Field	From contact to 17 in./43 cm on 100% U.P.C./EAN symbols
Scan Pattern	Single line
Decode Capability	1D, See data sheet for full list of supported symbolic art
Tilt	2 +/-65 degrees
Minimum Resolution	Minimum 20% reflective difference
Technology	Laser

Regulatory Specifications

Electrical Safety	UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Laser Safety	EN 60825-1, IEC 60825-1, 21CFR1040.10
EMC	FCC Part 15 Class B, ICES 003 Class B
Environmental	RoHS Directive 2002/95/EEC

Warranty

Scanner Warranty

The Symbol LS2208 is warranted against defects in workmanship and materials for a period of 1 year.

User Environment

Drop Specification	The device operates normally after repeated drops from 5 ft/1.5 m to concrete
Ambient Light Immunity	Unaffected by direct exposure to normal factory and office lighting conditions as well as sunlight
Storage Temperature	-40° to 158° F/-40° to 70° C
Operating Temperature	Operating temperature 32° to 122° F/0° to 50° C

IV. Outstanding Features

- Durable, circuit board construction - Fast, accurate first-pass reading - Wide working range - Flexible use - Multiple on-board interfaces - Plug and play with universal cable - Intuitive, convenient, lightweight design for users - Advanced Data Formatting (ADF) - Quick and accurate access, satisfying customer needs.
