Barcode Scanner OPTICON OPI-3601

Viet Pos specializes in providing and installing OPTICON OPI-3601 barcode scanners nationwide. Quality products, affordable prices, genuine commitment, modern and compact design. OPI-3601 is distributed by Viet Pos system nationwide. Please contact us immediately for quick consultation and quotation.

Technical Specifications

Operating indicators
Visual	1 LED (red/green/orange)
Non-visual	Buzzer
Operating keys
Entry options	1 scan key
Communication
RS232	DB9 PTF connector with external power supply
Keyboard Wedge	MiniDIN6 F/M connector
USB	Ver. 2.0, HID/VCP, USB-A connector
Power
Voltage requirement	6V ± 5% (Keyboard Wedge), 6V (min. 4.5, max. 6.5V) (RS232)
Current consumption	Max. 350mA (max typical use), 75mA (standby)
2D Imager Optics
2D Scan rate	60 fps
2D Trigger mode	Manual, multiple read, auto-trigger, stand detection
2D Image format	Windows Bitmap, JPEG, TIFF
2D Gradulation	1024, 256, 16, 2
2D Image output mode	4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)
2D Reading pitch angle	-50 to 0°, 0 to +50°
2D Reading skew angle	-50 to 0°, 0 to +50°
2D Reading tilt angle	360°
2D Focal distance	104 mm
2D Curvature	R>16 mm (12-digit 0.15 mm Codabar), R>20 mm (13-digit UPC)
2D Min. Resolution at PCS 0.9	QR code: 0.127 mm / 5 mil, DataMatrix: 0.169 mm / 7 mil
2D Min. PCS value	0.3
2D Field of view	Horizontal 40.6º, Vertical 26.4º
2D Depth of field	at Code 39: 65 - 105 mm / 2.56 - 4.13 in (0.127 mm / 5 mil), 45 - 185 mm / 1.77 - 7.28 in (0.254 mm / 10 mil) 50 - 250 / ,1.97 - 9.87 in (0.508/20 mil) at QR Code: 70 - 95 mm / 2.76 - 3.74 in (0.212 mm / 8.4 mil), 35 - 165 / 1.38 - 6.50 in (0.381 / 15 mil)
Supported Symbologies
Barcode (1D)	JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code	Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D code	Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Durability
Ambient light immunity	Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
Drop test	1.5 m / 5 ft drop onto concrete surface
Vibration test	10 - 100 Hz with 2G for 1 hour
Protection rate	IP 42

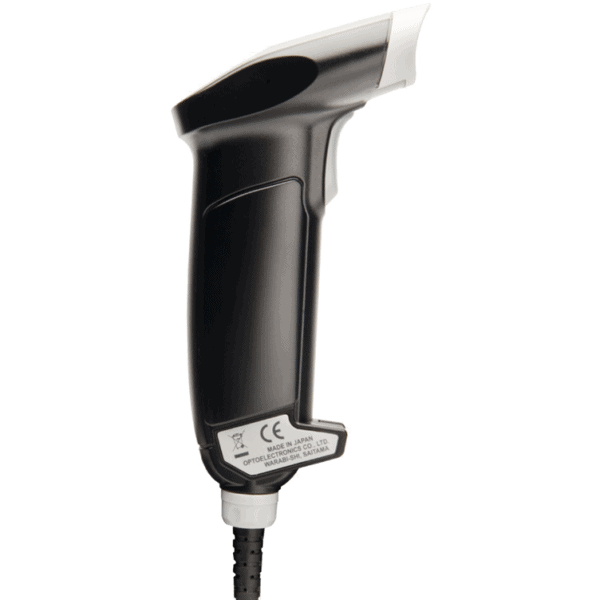

Actual images

Outstanding features

- Compact design, shockproof from a height of 1.5m (IP-42 standard) - Flexible connection support (USB, RS-232 or keyboard Wedge), high compatibility, easy to use - Scans on glossy, reflective, transparent, curved surfaces - Scans and decodes highly compressed, complex codes

- Connecting the OPI-3601 barcode scanner to a computer is very simple; just plug the USB end of the scanner into the USB port on your computer or laptop.
- The device has high compatibility; simply connect it to a computer or laptop via USB or RS232C protocol, and it can be used without needing to install any drivers or controllers.

Included accessories

- OPI-3601 power adapter
- OPI-3601 stand

Product applications

- Healthcare: Pharmaceutical management, electronic patient registration, electronic health monitoring, data tracking.
- Retail: Product management, price checking, online coupon management, membership card management
- E-tickets: Access control, entry/exit presentation, lead-tracking, visitor data storage
