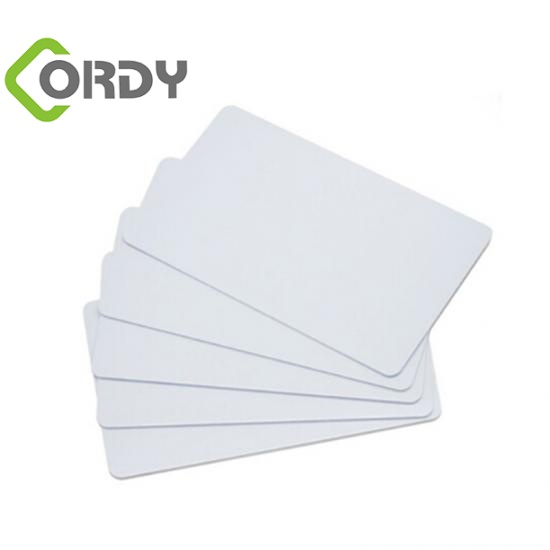

EM Marine Proximity Card 125kHz

EM4305 smart card (EM Marine card, ISO proximity card) uses the EM4205/EM4305 IC — a CMOS integrated circuit for RFID Read/Write transponders, with 512-bit EEPROM organized as 16 words x 32 bits, 32-bit UID, 100-150 kHz operating frequency, ISO 11784/11785 compliance, Manchester and Bi-phase encoding support, and an operating temperature range of -40°C to +85°C.

Key Features

• 512-bit EEPROM organized as 16 words x 32 bits
• 32-bit unique identifier (UID)
• 32-bit Password read and write protection
• ISO 11784 / 11785 compliant
• Lock feature converts EEPROM word to Read Only
• Two data encoding schemes: Manchester and Bi-phase
• Multi-purpose data rate: 8, 16, 32, 40 and 64 RF clocks
• Reader Talk First feature
• Compatible with EM4469/EM4569 communication protocol
• Frequency range 100 to 150 kHz
• On-chip rectifier and voltage limiter
• No external supply buffer capacitor required
• Temperature range -40°C to +85°C
• Very low power consumption
• Enlarged bumped pads (200 μm x 400 μm) for direct coil connection (EM4305)
• EM4205: 2 resonant capacitor versions 210pF or 250pF selected by mask option
• EM4305: 3 resonant capacitor versions 210pF, 250pF or 330pF selected by mask option
• Plastic extremely thin small outline package; 2 terminals; body 1.1 x 1.4 x 0.46 mm

Recommended Applications

• Animal identification per ISO FDX-B
• Pigeon races standard
• Waste management (BDE)
• Access Control
• Time Attendance
