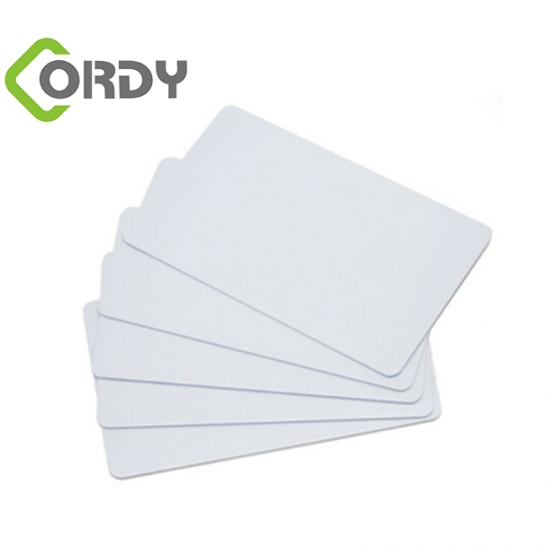

I Code SLI-S ISO15693 White Card for Libraries

The I Code SLI-S ISO15693 white card is a 13.56 MHz contactless smart card under the ISO/IEC 15693 standard, I Code SLI-S chip, PVC material, dimensions 85.6*54mm, EEPROM 1024 bits organized in 32 blocks x 4 bytes, read distance up to 1.5 m, data transfer rate up to 53 kbit/s.

Key Features

• ICODE SLI RF Interface (ISO/IEC 15693)
• Contactless transmission of data and supply energy (no battery needed)
• Operating distance: up to 1.5 m (depending on antenna geometry)
• Operating frequency: 13.56 MHz (ISM, world-wide licence free available)
• Fast data transfer: up to 53 kbit/s
• High data integrity: 16 Bit CRC, framing
• True anticollision
• Electronic Article Surveillance (EAS)
• Application Family Identifier (AFI) supported
• Data Storage Format Identifier (DSFID)
• Additional fast anticollision read
• Write distance equal to read distance
• EEPROM: 1024 bits, organised in 32 blocks of 4 byte each
• Data retention of 10 years
• Write endurance 100.000 cycles
• Unique identifier for each device
• Lock mechanism for each user memory block (write protection)
• Lock mechanism for DSFID, AFI, EAS

Applications

• Library and rental services
• Healthcare
• Ski ticketing
• Supply Chain Management
• Asset management and smart shelf solutions
• Container Identification
• Pallet & Case Tracking
• Factory automation
